| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Fiber Optic Cable ADSS |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 1000M or 2000M / Wooden Drum |
| Delivery Time: | Normally 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 600KM / Month |
| Fiber Unit: | YOFC G.652D | Filling 1: | Tube Filling Compound |
|---|---|---|---|
| Tube: | Loose Tube | Filling 2: | Cable Filling Compound |
| Strength Member: | PRP | Inner Sheath: | FE |
| Outer Sheath: | PE Or AT | Color: | Black |
| Package: | 1000M, 2000M, Wooden Drum | ||
| Highlight: | long distance fiber optic cable,fiber optic ethernet cable |
||

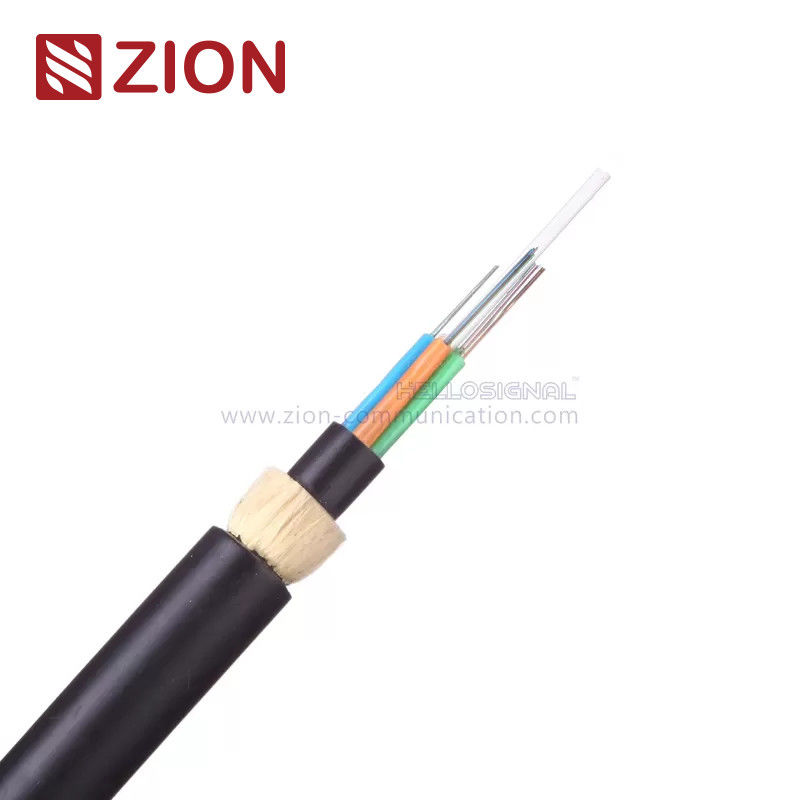

All Dielectric Self-supporting Aerial Cable ADSS With PE or AT Outer Sheath
Quick Detail:
Description:

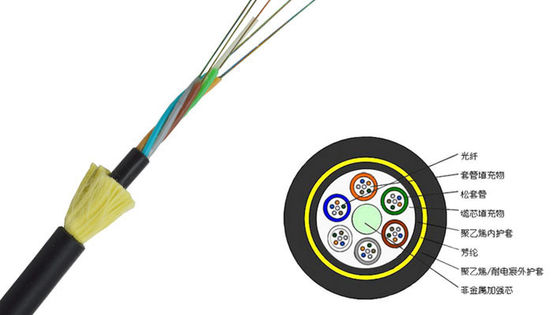

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of a high
modulus plastic. The tubes are stranded around a FRP (Fiber Reinforced Plastics) as a non-metallic
central strength member into a compact and cicular cable core. After the cable is filled with filling compound, it is covered with thin PE (Polyethylene) sheath as inner sheath. After stranded layer of
aramid yarns are applied over the inner sheath as strength member, the cable is completed with
PE or AT (Anti-Tracking) as outer sheath.
Applications:
The ADSS cable is designed as a loose tube stranded construction. Fibers, 250μm in diameter, are housed in loose tubes made of high-modulus plastic. These tubes are stranded around a Fiber Reinforced Plastic (FRP) central strength member, creating a compact and circular cable core. The core is filled with a filling compound for protection, then covered with a PE (Polyethylene) inner sheath. A layer of aramid yarns is applied over the inner sheath as a strength member, and the cable is finished with a PE or AT (Anti-Tracking) outer sheath.
This cable meets the requirements of IEEE 1222-2004 and IEC 60794-1 standards.
The technical parameters for the ADSS cable indicate that it has varying outer diameters of 13.0 mm, 13.6 mm, and 14.5 mm, with respective weights for PE sheaths of 132 kg/km, 145 kg/km, and 164 kg/km, and for AT sheaths of 142 kg/km, 156 kg/km, and 177 kg/km. The maximum allowable working tensile strengths are 6000 N, 10000 N, and 15000 N, with breaking strengths of 15000 N, 24000 N, and 36000 N. Suitable spans for NESC standards range from 230 m to 480 m for span A, and from 150 m to 320 m for span B, depending on the cable specifications.
For optical fiber characteristics, the single-mode G.652 fiber has an attenuation of ≤0.36 dB/km at 1310 nm and ≤0.22 dB/km at 1550 nm, while the G.655 fiber has an attenuation of ≤0.40 dB/km at 1310 nm and ≤0.23 dB/km at 1550 nm. Multimode 50/125μm fiber exhibits attenuation ≤3.0 dB/km at 850 nm and ≤1.0 dB/km at 1300 nm, with a bandwidth of ≥600 MHz·km at 850 nm and ≥1200 MHz·km at 1300 nm. Multimode 62.5/125μm fiber has attenuation ≤3.0 dB/km at 850 nm and ≤1.0 dB/km at 1300 nm, with a bandwidth of ≥200 MHz·km at 850 nm and ≥600 MHz·km at 1300 nm. Numerical apertures are 0.200±0.015 for 50/125μm fibers and 0.275±0.015 for 62.5/125μm fibers, with cable cut-off wavelengths of ≤1260 nm for G.652 fibers and ≤1450 nm for G.655 fibers.
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and Zion communication
3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
