| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Typical Designs of Central Stainless Steel Tube |
| Minimum Order Quantity: | 500 |

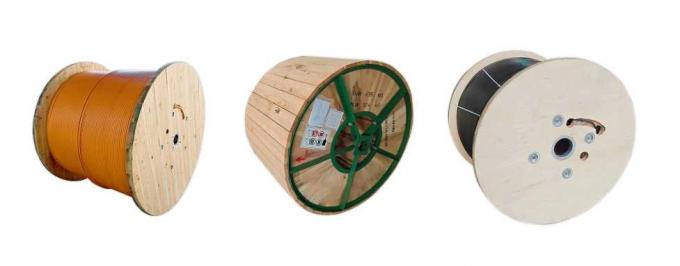

| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |

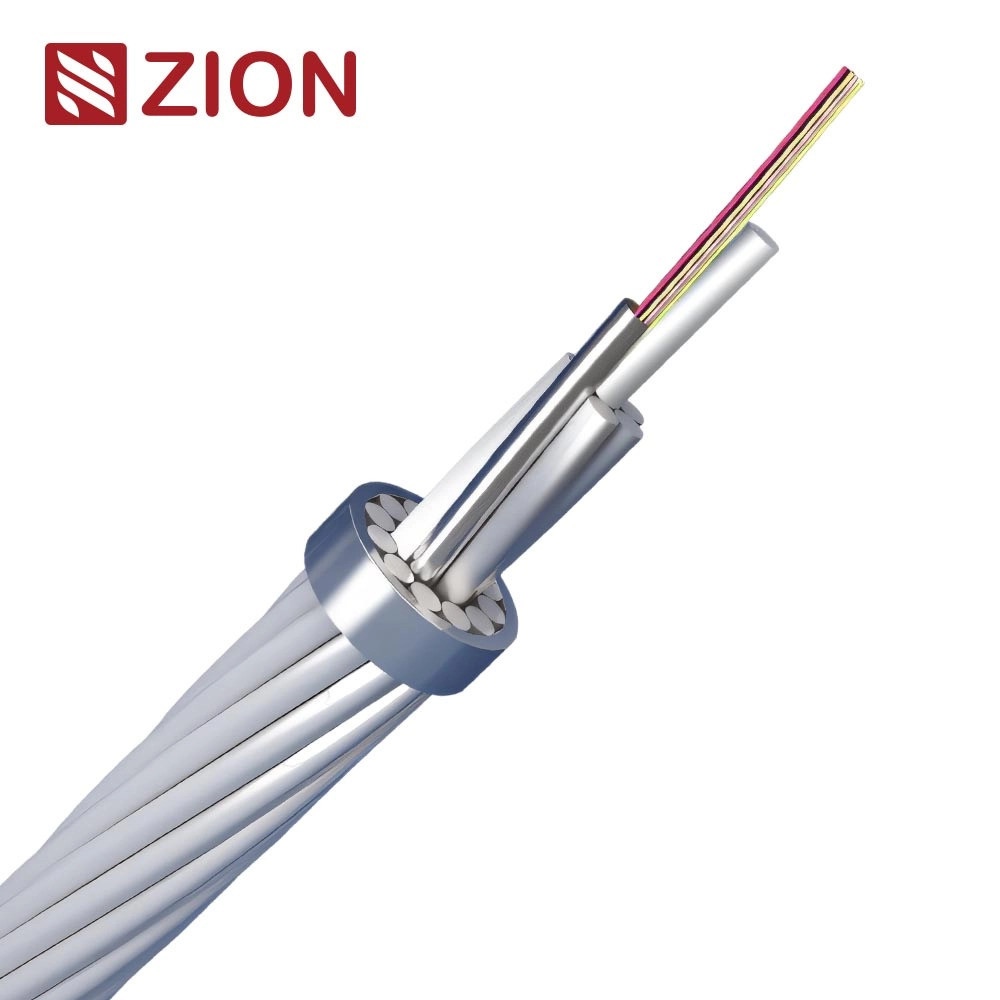

OPGW With Stranded Layers,
Single Tube And Multitube Are Available
Double /Three Armour Layers

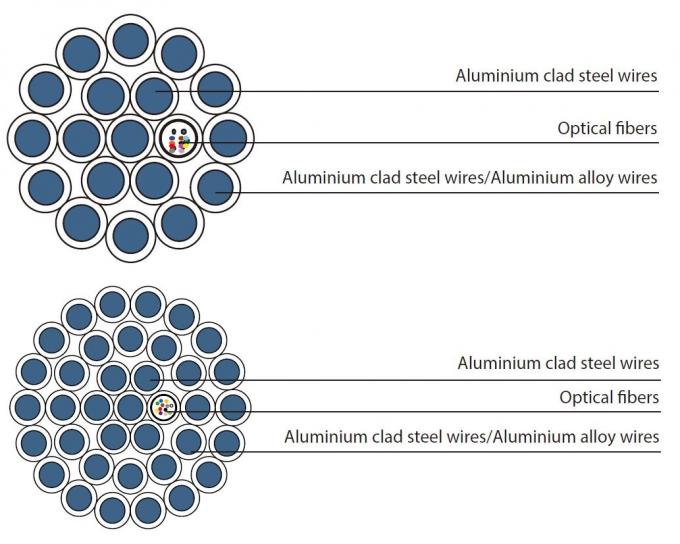

The stainless steel tube is stranded by double or three layers of aluminium clad steel wires(ACS) or mix ACS wires and aluminium alloy wires.
Characteristic and Application
larger cable diameter and much more _x001f_ber count.
larger tensile strength and fault current capacity to reach a better balance of electrical and mechanical performance.
The amount of Stainless Steel Tube could be 1, 2 or 3 (max. at present).
Optimum stranding design to reach a suitable secondary _x001f_ber excess length.
The stranded layers could be double layers or three layers, the stranded wires
could be AS wires with/or AA and Al wires.
Typical Parameters
