| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Typical Designs of Central Stainless Steel Tube |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |

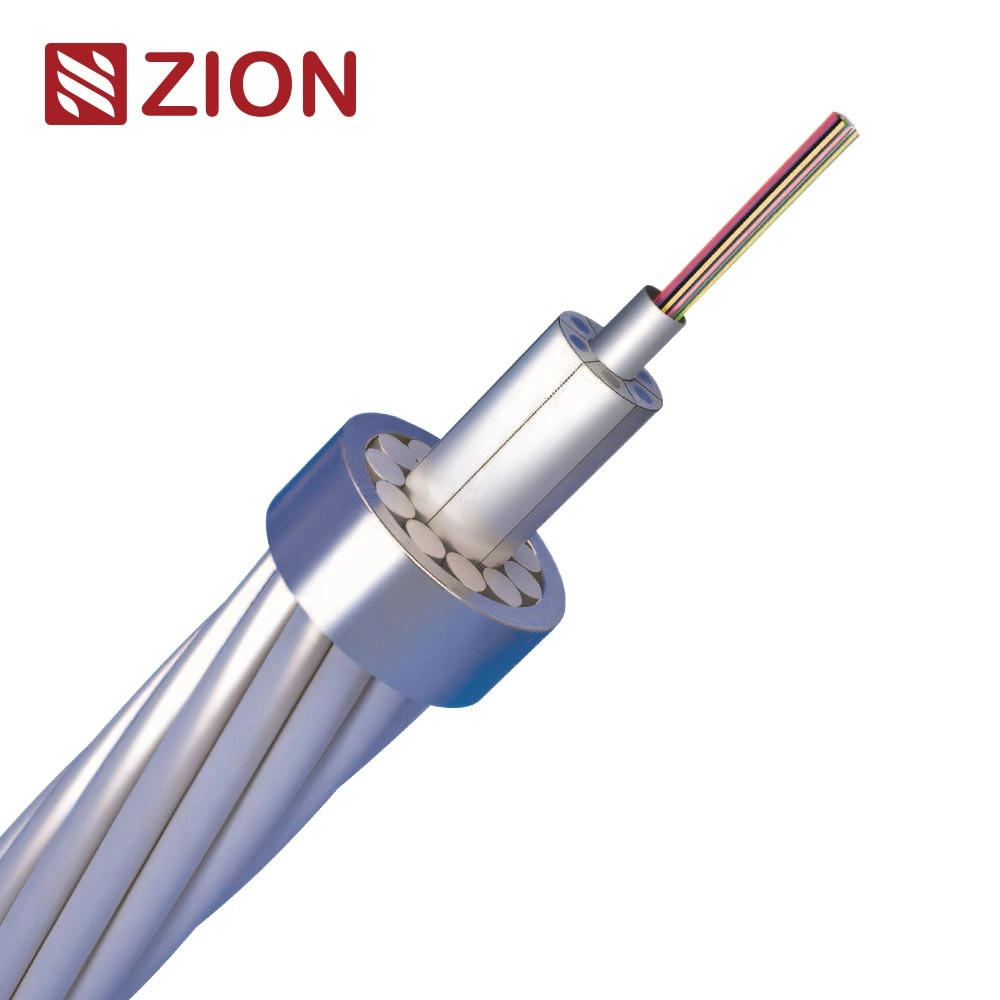

Typical Designs of Lightning Resistant Central
Stainless Steel Tube OPGW with Compressed Wires

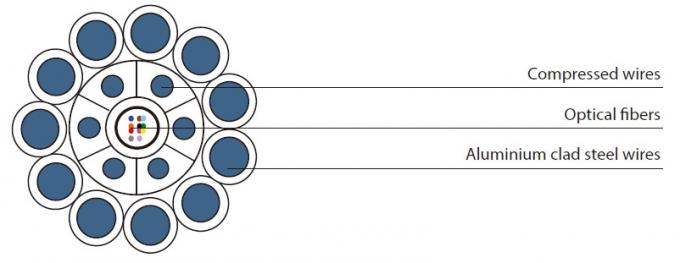

The central stainless steel tube is surrounded by double layers of aluminium clad steel wires(ACS),the inner layer aluminium clad steel wires are compressed,the outer layer aluminium clad steel wires are all compressed or all round.
Compressing round AS wires into sector AS wires during stranding.
Compared with round AS wires stranding, sector AS wires stranding can increase the cross section and fault current capacity while the cable diameter is the same.
Compared with round AS wires stranding, sector AS wires stranding can dramatically increase the diameter of outer wires to enhance the lightning performance.
Apply to the transmission line which requires small diameter and large fault current.
Apply to heavy thunderstorm areas.
Typical Parameters
