| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Plenum |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Highlight: | 6C Plenum Cable,Shielded Plenum Cable,18AWG Plenum Cable |
||
|---|---|---|---|
|

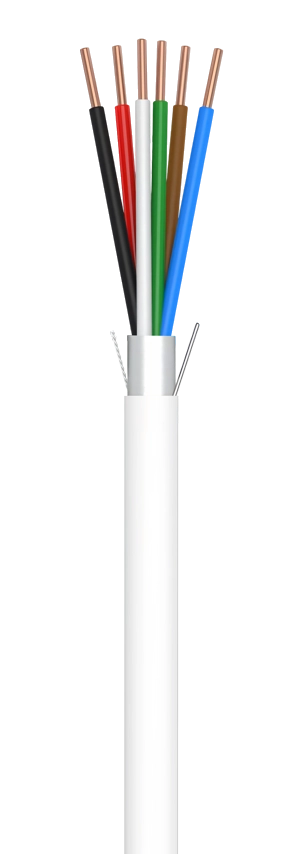

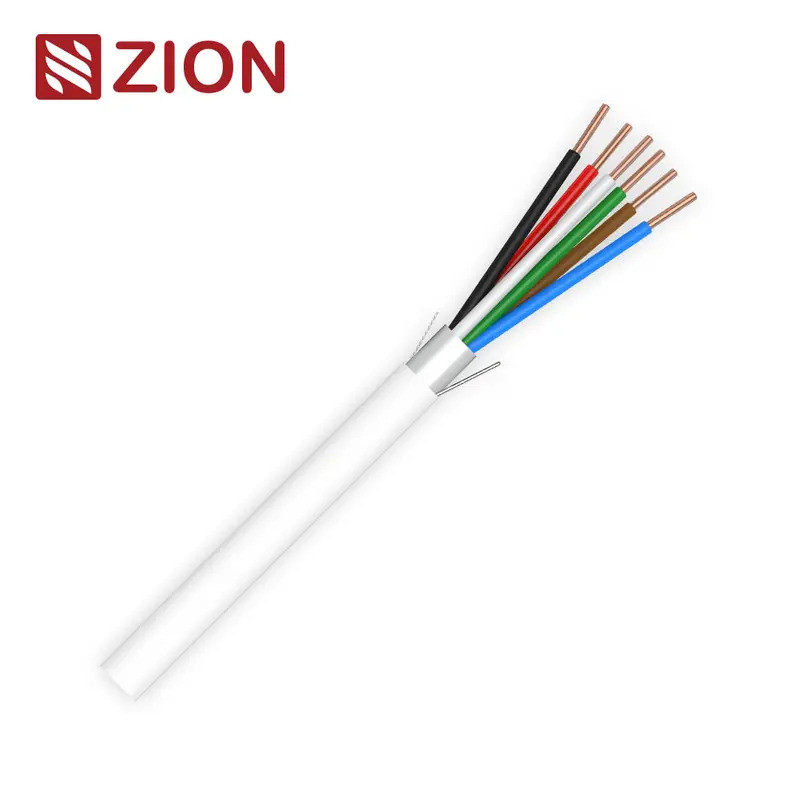

18AWG 6C STR Shielded Plenum |
||
|
Key Information & Construction |
||
|
SKU: |
P7110344 |
|
|
UL Certificate Number: |
E541136 - CMP |
|
|
E541137 - CL2P & CL3P |
||
|
CMP Standards: |
UL 444 & CSA C22.2 No.214 |
|
|
CL2P/CL3P Standards: |
UL 13 Power-Limited Circuit Cables |
|
|
Total Number Conductors |
6 |
|
|
Conductor Material: |
Stranded Bare Copper |
|
|
Conductor Size: |
18AWG/ 7×0.0152" / 7×0.386mm |
|
|
Dielectric Material: |
Plenum PVC - Low Smoke |
|
|
Dielectric Size: |
0.060±0.004''nom.(1.52±0.10mm) |
|
|
Dielectric Colors: |
1.Blk 2.Red 3.White 4.Green |
|
|
Drain Wire: |
24 AWG 7/32 Stranded Tinned Copper |
|
|
Shielded: |
Aluminum Mylar |
|
|
Rip Cord: |
Yes |
|
|
Out Jacket: |
Material: Plenum PVC - Low Smoke |
|
|
Wall Thickness: 0.0150". Nom(0.38mm) |
||
|
OD:0.219"±0.006“ (5.56±0.15mm) |
||
|
Electrical & Physical Characteristics |
||
|
DC Resistance |
6.92 Ω/KFT | 22.7 Ω/KM |
|
|
Rated Voltage(V RMS) |
300V |
|
|
Operating Temperature |
- 20 to 75 ℃ (- 4 to 167℉) |
|
|
Order Informations |
||
|
Marking |
HANGZHOU ZION 18AWG 6C STR SHIELDED E541137 CL3P(UL) |
|
|
Color |
We can customized Jacket Color based on RAL Classic |
|
|
Printing |
We can customized printing words on jacket |
|
|
Packing & Label |
We can customized spool, carton & label design. |
|
|
Suitable Application |
||
|
Description |
Security System | Sound/Audio System | Intercom System |
|
