| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Plenum |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Conductor Material: | Stranded Bare Copper | Dielectric Size: | 0.095±0.004''nom.(2.88±0.10mm) |
|---|---|---|---|
| Dielectric Colors: | 1.Red 2.Black | ||
| Highlight: | 22 Awg Bare Copper Wire,Exceptional Performance Bare Copper Wire,Premium Bare Copper Wire |
||

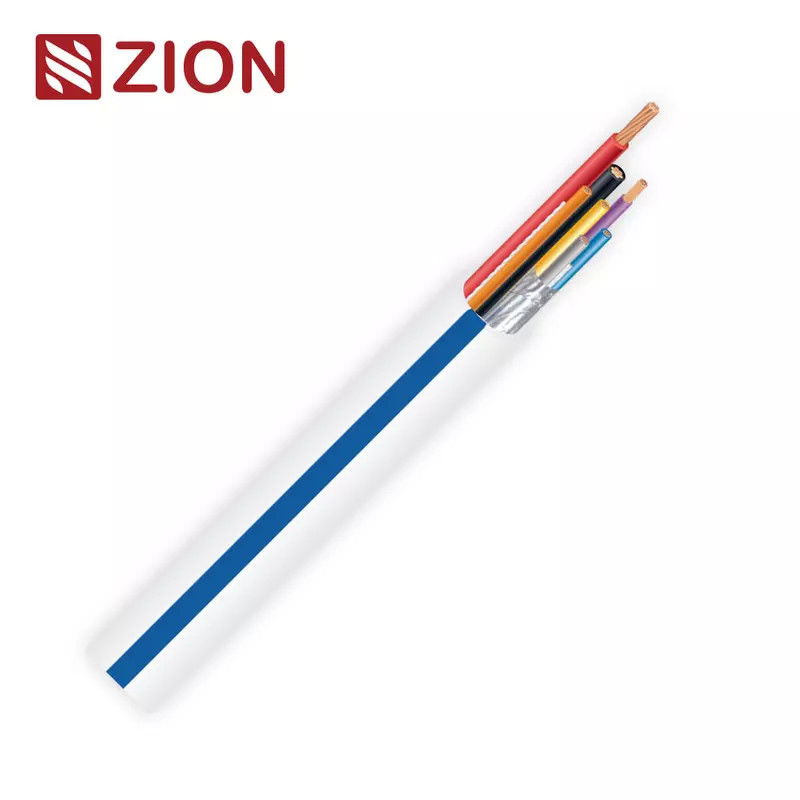

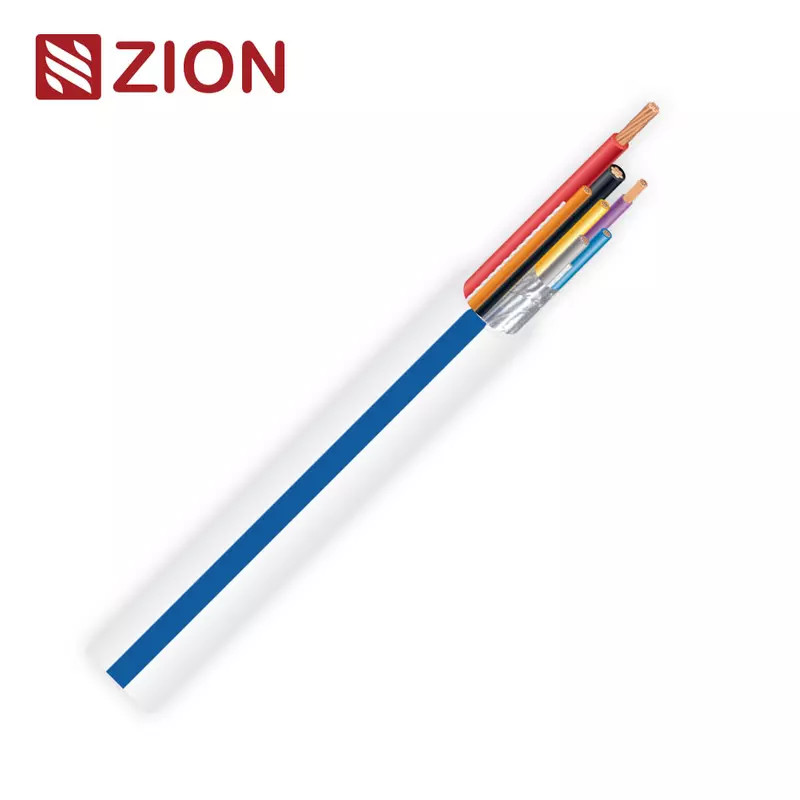

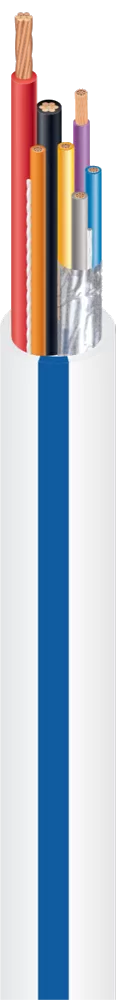

| LUT Blue Cable Plenum | ||

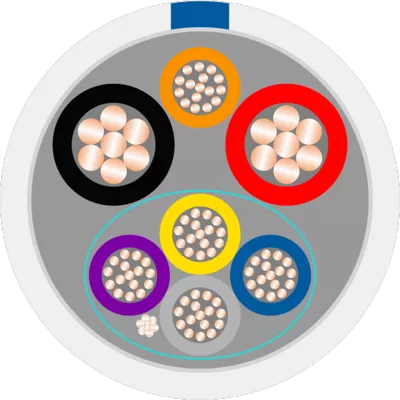

| Key Information & Construction | ||
| SKU: | 7111703 |  |
| Assembly: | 22/2C SH+12/2C+18G (Blue Stripe) | |
| UL Certificate Number: | E541136 - CMP | |
| E541137 - CL2P & CL3P | ||
| Element 1 (Data) | 22AWG 2Cores Shielded | |
| Conductor Material: | Stranded Bare Copper | |
| Conductor Size: | 22AWG/ 7×0.010" / 7×0.254mm | |
| Dielectric Material: | Foam FEP | |
| Dielectric Size: | 0.052±0.004''nom.(1.32±0.10mm) | |
| Dielectric Colors: | 1.Violet 2.White | |
| Drain Wire: | 24AWG/7×0.2mm Stranded Tinned Copper | |
| Shield: | Aluminum Malar Foil-100% Coverage | |
| Element 2 (Power/Control) | 12AWG 2Cores Unshielded | |
| Conductor Material: | Stranded Bare Copper | |
| Conductor Size: | 12AWG/19×0.0179"/19×0.455mm | |
| Dielectric Material: | Plenum PVC-Low Smoke | |
| Dielectric Size: | 0.095±0.004''nom.(2.88±0.10mm) | |
| Dielectric Colors: | 1.Red 2.Black | |
| Element 3 (Control) | 18AWG 1Core Unshielded | |
| Conductor Material: | Stranded Bare Copper | |
| Conductor Size: | 18AWG/16×0.001"/16×0.254mm | |
| Dielectric Material: | Plenum PVC-Low Smoke | |
| Dielectric Size: | 0.061±0.004''nom.(1.56±0.10mm) |  |
| Dielectric Color: | Orange | |
| Rip Cord | Yes | |
| Out Jacket: | Material: Plenum PVC - Low Smoke | |
| Color: White/Blue Stripe | ||
| Wall Thickness: 0.0170". Nom(0.43mm) | ||
| OD:0.242"±0.006“ (6.15±0.15mm) | ||
| Electrical & Physical Characteristics | ||
| DC Resistance | 22AWG:14.8Ω/KFT | 18AWG:6.92Ω/KFT |
| Capacitance | 22AWG:22.3 pF/FT | |
| Impedance | 22AWG: 67Ω | |
| Rated Voltage(V RMS) | 300V | |
| Operating Temperature | - 20 to 75 ℃ (- 4 to 167℉) | |
| Marking | ZION LUT Blue 22AWG/2C SH+12AWG/2C+18G E541137 CL3P(UL) or E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT |
|
