| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Plenum |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Highlight: | High-Quality Shielded Plenum Cable,4C Shielded Plenum Cable,14AWG Shielded Plenum Cable |
||
|---|---|---|---|

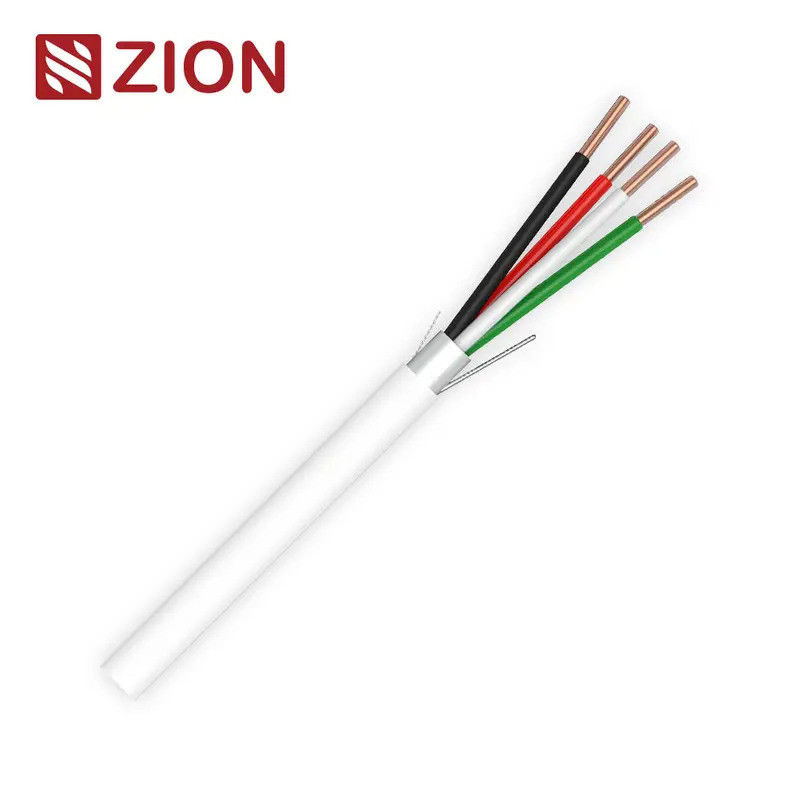

| 14AWG 4C SOL Shielded Plenum | ||
| Key Information & Construction | ||
| SKU: | P7110148 |  |
| UL Certificate Number: | E541136 - CMP | |
| E541137 - CL2P & CL3P | ||
| CMP Standards: | UL 444 & CSA C22.2 No.214 Communications Cables |
|
| CL2P/CL3P Standards: | UL 13 Power-Limited Circuit Cables | |
| Total Number Conductors | 4 | |
| Conductor Material: | Solid Bare Copper | |
| Conductor Size: | 14AWG/ 0.064" / 1.63±0.008mm | |
| Dielectric Material: | Plenum PVC - Low Smoke | |
| Dielectric Size: | 0.078±0.004''nom.(1.98±0.10mm) | |
| Dielectric Colors: | 1.Blk 2.Red 3.White 4.Green | |
| Drain Wire: | 24 AWG 7/32 Stranded Tinned Copper | |
| Shielded: | Aluminum Mylar | |
| Rip Cord: | Yes | |
| Out Jacket: | Material: Plenum PVC - Low Smoke | |
| Wall Thickness: 0.0150". Nom(0.38mm) | ||
| OD:0.270"±0.006“ (6.86±0.15mm) | ||
| Electrical & Physical Characteristics | ||
| DC Resistance | 2.525 Ω/KFT | 8.30 Ω/KM | |
| Rated Voltage(V RMS) | 300V | |
| Operating Temperature | - 20 to 75 ℃ (- 4 to 167℉) | |
| Order Informations | ||
| Marking | HANGZHOU ZION 14AWG 4C SOL SHIELDED E541137 CL3P(UL) OR E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT |
|
| Color | We can customized Jacket Color based on RAL Classic | |
| Printing | We can customized printing words on jacket | |
| Packing & Label | We can customized spool, carton & label design. | |
| Suitable Application | ||
| Description | Security System | Sound/Audio System | Intercom System Power-Limited Controls System |
|
