FTTH GYFXBY 1 2 4 6 8 Cores Indoor Outdoor Fiber Optic Cable With FRP Non Metallic

FTTH GYFXBY 1 2 4 6 8 Cores Indoor/Outdoor Fiber Optic Cable Flat Communication Cable With FRP Non Metallic

GYFXBY Flat-shape & Self-supporting Uni-tube Fiber Optic Cable for Networks in Rural Areas Vast Countryside



Introduction

Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. Two glass fibre reinforced plastic(FRP)rods are placed outside the tube in parallel, and water-blockingyarns is placed between the tube and the rods, then a flat-shape PE sheath is extruded.
In the distribution segment of optical networks in rural areas, the cable can be used as drop cables for self-supporting aerial installation to connect branching points with access points for subscribers.



Features

Accurate process control ensuring good mechanical and temperature performances
Unique flat shape providing excellent crush resistance,applicable to special wedge clamps for installation
Two FRP strength members in parallel close to the tube, easy for stripping
All-dielectric design, applicable to lightning-prone areas
Uni-tube,small ize and light weight, easy for installation





Product Series

The Product Series for fiber optic cables is segmented into three categories: Feeder, Distribution, and Drop segments. Below is a breakdown of the different cable types within each segment:

•  Feeder Segment:

These cables are typically used for long-distance communication, often deployed in outdoor environments.

GYTA/GYTS: Stranded Loose Tube cables. These cables are designed for high-performance communication with multiple fibers in a loose tube configuration for added protection and flexibility.



Each of these product types serves different purposes within fiber optic networks, from long-distance backbone transmission to distribution and drop connections closer to the user.

• Drop Segment:

These are commonly used for the final connection from a distribution point to the end-user, typically in homes or buildings.

GJXH: Bow-type drop cable. This type of cable has a robust design with steel wire strength members and is typically used for short-distance installations.

• Distribution Segment:

These cables are used for connecting from the feeder network to the end-user network or for intermediate connections.

GYAXZY: Uni-tube Aramid LSZH Sheath. This cable uses a single tube configuration and features an Aramid strength member with a Low Smoke Zero Halogen (LSZH) sheath, making it safe and environmentally friendly. GYGXZY: Uni-tube Glass Yarn PE Sheath. Similar to the above, but with a Glass Yarn strength member and a Polyethylene (PE) sheath, providing a different kind of protection and durability. GTJGA: Slotted TBF APL CSM. A more specific type of cable with a slotted core, designed for high-density and long-distance distribution. GYFXBY: Flat-shape & Self-supporting Uni-tube. A flat-shaped design with a self-supporting feature, offering an easy installation method, commonly used in environments requiring flexible yet robust cabling. GYAXTC8Y: Figure-8 Self-supporting Uni-tube Aramid. A Figure-8 configuration, with Aramid yarn for strength, and self-supporting characteristics. GYFC8A-3U: 3-Unit FRP APL Figure-8 Self-supporting. A Figure-8 design with 3-unit FRP for additional strength and self-supporting capability, typically for rugged environments.

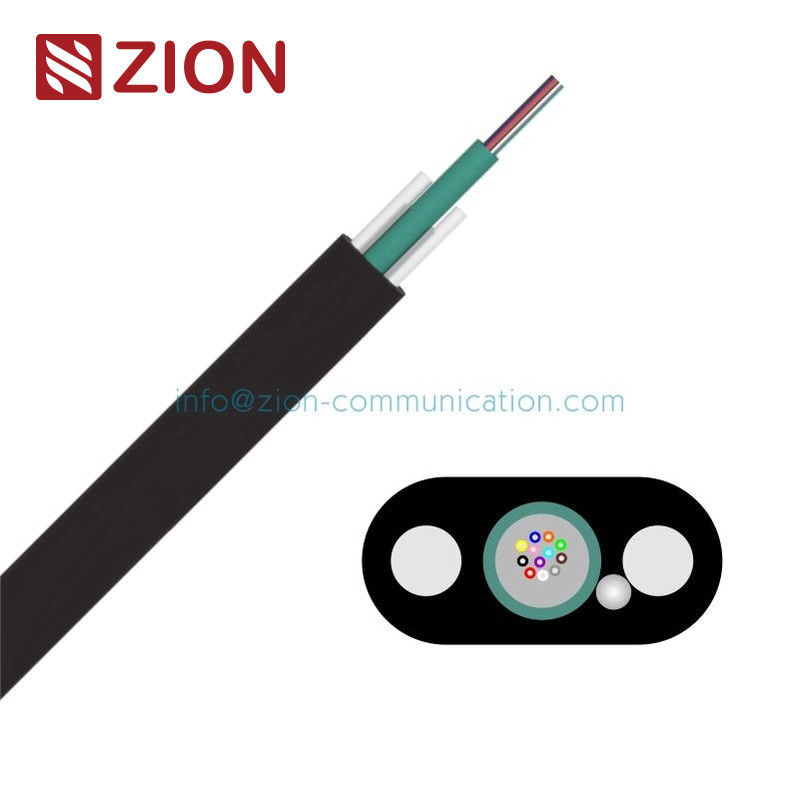

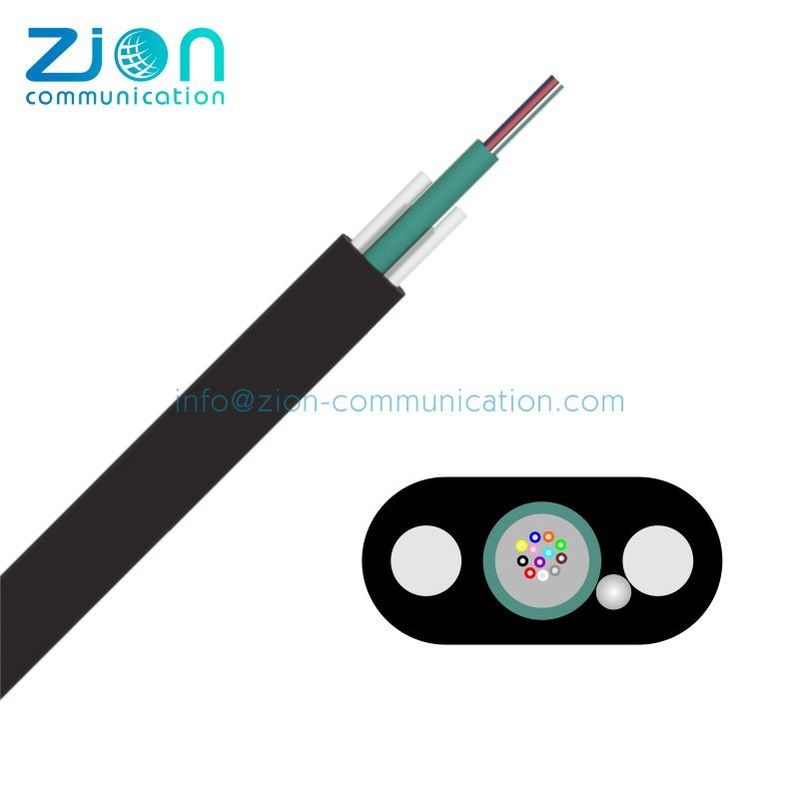

Cross Section





1. Tube Filling: Suitable water blocking filling compound.
2. Loose Tube: thermoplastic material.
3. Optic Fiber
4. Strength Member: Glass fibre reinforced plastic rod (GFRP).
5. Water Blocking Material: water blocking yarn.
6. Outer Sheath: black polyethylene.









Technical Characteristics

GYFXBY-02-24Xn Diametermm: 4.6*8.1(3.0tube)

GYFXBY-02-24Xn Weight(kg/km): 35

GYFXBY-02-24Xn Diameter FRP: 1.6

GYFXBY-02-24Xn Tensile strengthLong/short term(N): 400/1400

GYFXBY-02-24Xn CrushLong/short term(N/100mm): 1000/5000







Environmental Characteristics

Transport/storage temperature: -20℃~70℃





Delivery Length

Standard length:1000m;Other length availabe
