| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Fiber Optic Cable GYGXY |
| Minimum Order Quantity: | 100km |
| Packaging Details: | 2000M / Wooden Spool / Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500KM / Month |
| Jacket: | LSZH | Package: | Wooden Spool ，Φ280*280mm |
|---|---|---|---|
| Modle: | Fiber Optic Cable GYGXY | Diameter Mm: | 6.0(3.0optical Unit) |
| Weight (kg/km): | 35 | Tension(N) Long/short: | 600/1500 |
| Highlight: | Non Metallic Fiber Optic Network Cable,Armored HDPE Sheath Drop Cable |
||

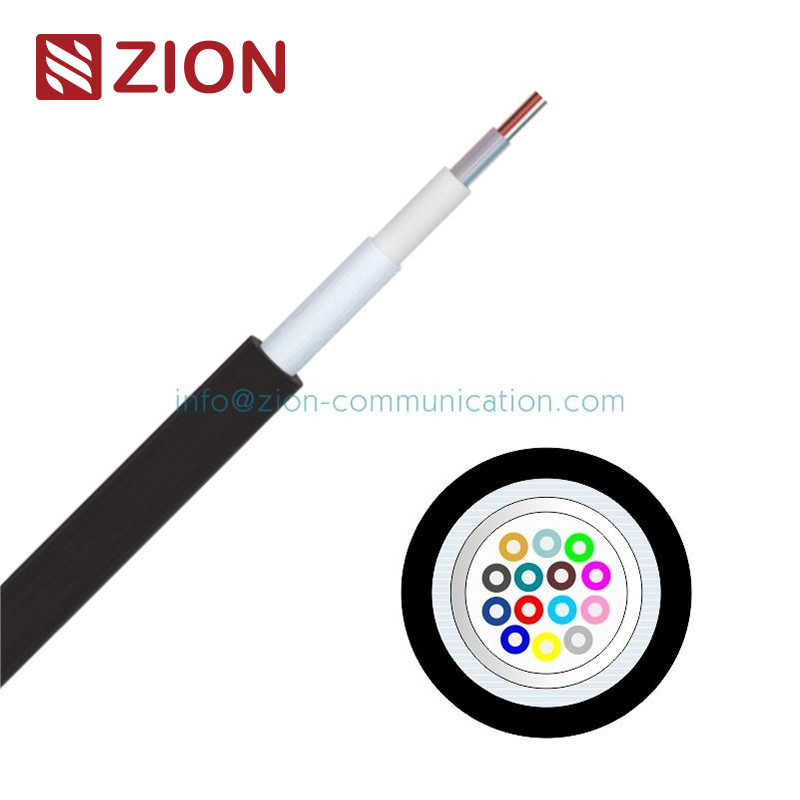

GYGXY Uni-Tube Non-Metallic Glass Yarns Tapes Armored HDPE Sheath Drop Cable
GYGXY Uni-tube Non-metallic Glass Yarns Tapes Armored HDPE Sheath Fiber Optic Cable for Networks in Rural Areas Vast Countryside
Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube fulling compound. The tube is armored with a layer of glass fiber tapes as the strength member. Then a LSZH sheath is extruded.
In the distribution segment of optical cable networks in rural areas, the cable can be used as drop cables for self-supporting aerial installation to connect branching points with access points for subscribers.
Good mechanical and temperature performances
All-dielectric design, applicable to lightning-prone areas
Aramid yarns ensuring tensile strength of optical cable
Small size and light weight, easy for installation
Glass fiber tape armor providing certin anti-rodent performance
The Product Series for fiber optic cables is segmented into three categories: Feeder, Distribution, and Drop segments. Below is a breakdown of the different cable types within each segment:
These cables are typically used for long-distance communication, often deployed in outdoor environments.
GYTA/GYTS: Stranded Loose Tube cables. These cables are designed for high-performance communication with multiple fibers in a loose tube configuration for added protection and flexibility.
Each of these product types serves different purposes within fiber optic networks, from long-distance backbone transmission to distribution and drop connections closer to the user.
These are commonly used for the final connection from a distribution point to the end-user, typically in homes or buildings.
GJXH: Bow-type drop cable. This type of cable has a robust design with steel wire strength members and is typically used for short-distance installations.These cables are used for connecting from the feeder network to the end-user network or for intermediate connections.
GYAXZY: Uni-tube Aramid LSZH Sheath. This cable uses a single tube configuration and features an Aramid strength member with a Low Smoke Zero Halogen (LSZH) sheath, making it safe and environmentally friendly. GYGXZY: Uni-tube Glass Yarn PE Sheath. Similar to the above, but with a Glass Yarn strength member and a Polyethylene (PE) sheath, providing a different kind of protection and durability. GTJGA: Slotted TBF APL CSM. A more specific type of cable with a slotted core, designed for high-density and long-distance distribution. GYFXBY: Flat-shape & Self-supporting Uni-tube. A flat-shaped design with a self-supporting feature, offering an easy installation method, commonly used in environments requiring flexible yet robust cabling. GYAXTC8Y: Figure-8 Self-supporting Uni-tube Aramid. A Figure-8 configuration, with Aramid yarn for strength, and self-supporting characteristics. GYFC8A-3U: 3-Unit FRP APL Figure-8 Self-supporting. A Figure-8 design with 3-unit FRP for additional strength and self-supporting capability, typically for rugged environments.
Technical Characteristics
GYGXY-02-12Xn Diametermm: 6.0(3.0optical unit)
GYGXY-02-12Xn Weight(kg/km): 35
GYGXY-02-12Xn Tensile strengthLong/short term(N): 600/1500
GYGXY-02-12Xn CrushLong/short term(N/100mm): 300/1000
GYGXY-02-12Xn Bending RadiusStatic/Dynamic: 20D/10D
Transport/storage temperature: -20℃~70℃
Standard length:1000m;Other length availabe
