| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Fiber Optic Cable GJYXFCH |
| Minimum Order Quantity: | 100km |
| Packaging Details: | 2000M / Wooden Spool / Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500KM / Month |
| Jacket: | LSZH | Package: | Wooden Spool ，Φ280*280mm |
|---|---|---|---|
| GJXFH: | FRP Strength Member+2.0*3.0LSZH | GJXH: | Steel Wire Strength Member+2.0*3.0 LSZH |
| GJXH-Small Diamter: | Steel Wire Strength Member+1.6*2.0 LSZH | GJX(F)DH: | Ribbon Fibers+2.0*4.0LSZH |
| Highlight: | 2 Hilos FTTH Fiber Optic Cable,Self Support FTTH Fiber Optic Cable,FTTH Single Mode Drop Cable |
||
FTTH Indoor Outdoor 2 Hilos Self-Support Fiber Optic Cable FTTH Single Mode Drop Cable GJYXCH/GJYXFCH 2KM Price
GJYXFCH(GJYXCH)-Small FTTH Drop Fiber Optic Cables Self-Supporting Wires 1.7*3.8LSZH

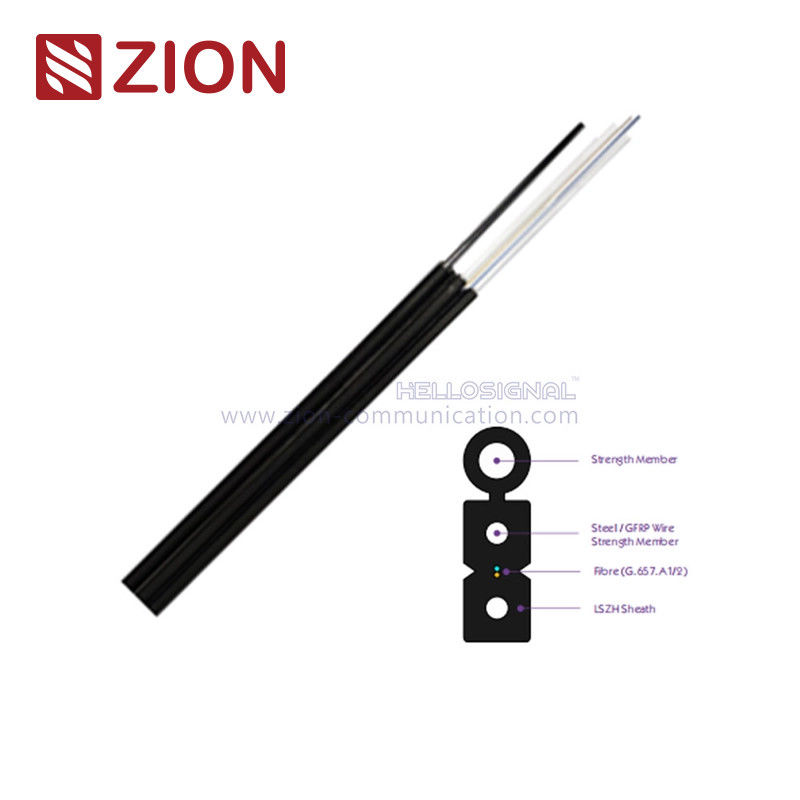

The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steelwire),Finally a LSZH sheath is extruded outside.
Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
Technical Characteristics
GJYXFCH-1-2 Diametermm: 1.7*3.8
GJYXFCH-1-2 Weight(kg/km): 15.5
GJYXFCH-1-2 Tensile strengthLong/short term(N): 200/400
GJYXFCH-1-2 CrushLong/short term(N/100mm): 500/1000
GJYXFCH-1-2 Bending RadiusStatic/Dynamic: 15/30
GJYXCH-1-2 Diametermm: 1.7*3.8
GJYXCH-1-2 Weight(kg/km): 15.5
GJYXCH-1-2 Tensile strengthLong/short term(N): 200/400
GJYXCH-1-2 CrushLong/short term(N/100mm): 500/1000
GJYXCH-1-2 Bending RadiusStatic/Dynamic: 15/30
Transport/storage temperature: -20℃~70℃
Standard length:1000m;Other length availabe
