| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Fiber Optic Cable GJYXFCH / GJYXCH |
| Minimum Order Quantity: | 100km |
| Packaging Details: | 2000M / Wooden Spool / Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500KM / Month |
| Jacket: | LSZH | Package: | Wooden Spool ，Φ280*280mm |
|---|---|---|---|
| GJXFH: | FRP Strength Member+2.0*3.0LSZH | GJXH: | Steel Wire Strength Member+2.0*3.0 LSZH |
| Brand: | Zion Communication OR OEM | Certificate: | CE, ROHS, VDE, UL |
| Highlight: | FTTH Drop Cable 1 core,Singlemode FTTH Drop Cable,FTTH Drop Cable 2 Core |
||
FTTH Drop Cable 1core 2core 4core Singlemode Fiber Self Supporting Outdoor Optical Cable GJYXFCH GJYXCH

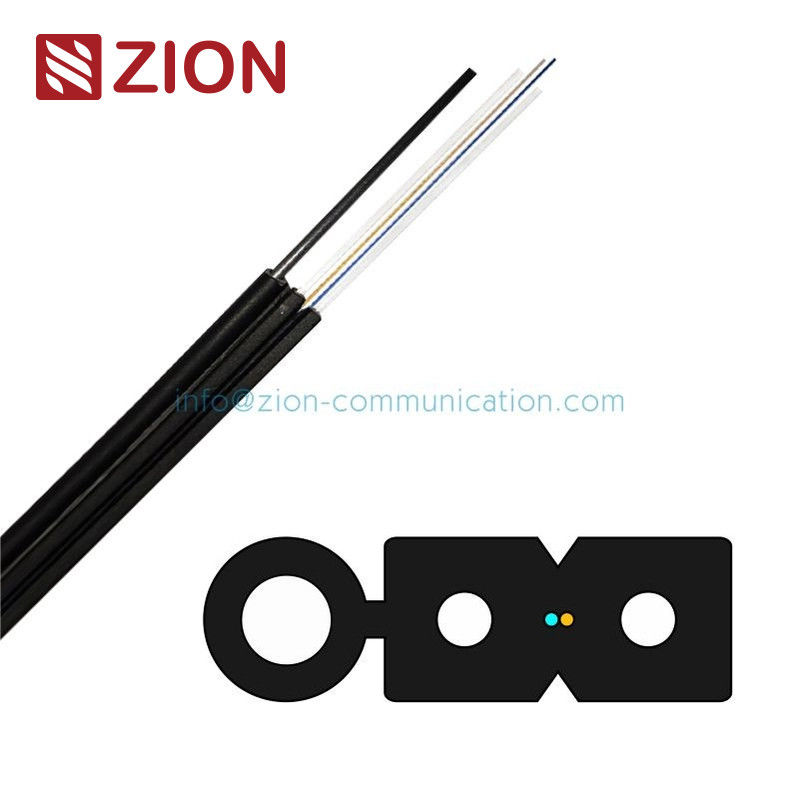

GJYXFCH(GJYXCH) FTTH Drop Fiber Optic Cables Self-Supporting Wires 2.0*5.2LSZH
The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steelwire),Finally a LSZH sheath is extruded outside.
Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
Technical Characteristics
GJYXFCH-1-2 Diametermm: 2.0*6.2
GJYXFCH-1-2 Weight(kg/km): 18.9
GJYXFCH-1-2 Tensile strengthLong/short term(N):300/600
GJYXFCH-1-2 CrushLong/short term(N/100mm): 1000/2200
GJYXFCH-1-2 Bending RadiusStatic/Dynamic: 15/30
GJYXCH-1-2 Diametermm: 2.0*6.2
GJYXCH-1-2 Weight(kg/km): 21
GJYXCH-1-2 Tensile strengthLong/short term(N): 300/600
GJYXCH-1-2 CrushLong/short term(N/100mm): 1000/2200
GJYXCH-1-2 Bending RadiusStatic/Dynamic: 15/30
Transport/storage temperature: -20℃~70℃
Standard length:1000m;Other length availabe
