1 Core 2 Core G657A Optical Gjxh Gjxfh Ftth Drop Cable With Lszh Jacket

GJXH-Small FTTH Drop Fiber Optic Cables Steel Wire Strength Member 1.6*2.0 LSZH

The GJXH Bow-Type Drop Fiber Optic Cable with Steel Wire Strength Members 2.0*3.0LSZH is designed for fiber-to-the-home (FTTH) applications, offering a reliable and safe solution for optical fiber deployment. Here's an overview of its key features:

Introduction:

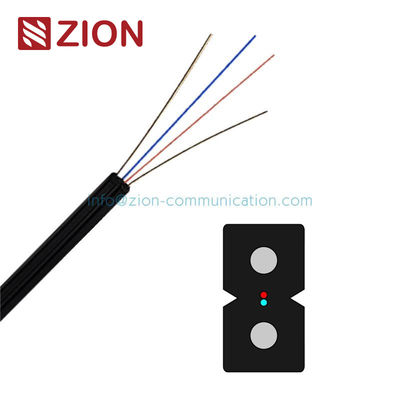

• The GJXH drop optical cable typically includes central optical fibers with 2 parallel steel wires as the strength members placed on both sides of the fibers. An LSZH (Low Smoke Zero Halogen) sheath is extruded around the cable for added safety and environmental benefits.

Features:

• Simple Structure: Lightweight, metal-free, with high tensile strength.
• Design: The cable features a novel groove design for easy stripping and splicing, simplifying installation and maintenance processes.
• Safety & Environmental Benefits: The LSZH sheath is low smoke, zero halogen, flame-retardant, and environmentally friendly, making it a safe option for various environments.

Product Series:

The GJXH cable comes in several variations to suit different needs:

1. GJXFH – FRP Strength Member + 2.0*3.0 LSZH.
2. GJXH – Steel Wire Strength Member + 2.0*3.0 LSZH.
3. GJXH-Small Diameter – Steel Wire Strength Member + 1.6*2.0 LSZH.
4. GJX(F)DH – Ribbon Fibers + 2.0*4.0 LSZH.
5. GJYX(F)CH – Self-Supporting Wires + 2.0*5.2 LSZH.
6. GJYX(F)CH-Small – Self-Supporting Wires + 1.7*3.8 LSZH.
7. GJYXFDCH (GJYXDCH) – Self-Supporting Wires + Ribbon Fibers + 1.7*3.8 LSZH.
8. GYFJU – Aramid Yarn Strength Round Sheath LSZH.
9. GYGXY – Central Tube Glass Yarns Armor Round Sheath HDPE.
10. FDC – Flat Drop Cable + Central Tube + 3.0*6.0 LSZH.
11. ASU – Self-Supporting FRP Strength + Tube + 7.0/8.0 HDPE.
12. GYXY-8S – Figure-8 Self-supporting + Aramid Yarns + Tubes + 4.6*8.8 HDPE.
13. GYFXBY – Flat Drop Cable + Central Tube + 4.6*8.1 LSZH.

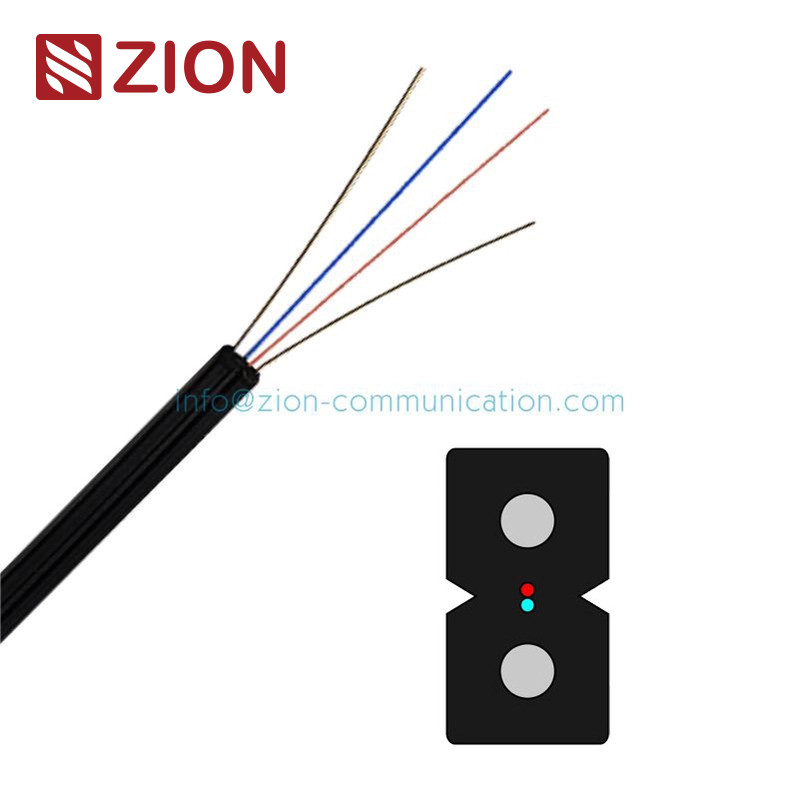

Cross Section:

The GJXH cable features a cross-sectional design that ensures efficient performance in fiber optic connections.

Technical Characteristics:

• Type: GJXH-1, GJXH-2, GJXH-4.
• Dimensions: 1.6*2.0 mm.
• Weight: 7 kg/km.
• Tensile Strength:
  • Long term: 100 N.
  • Short term: 200 N.
• Crush Resistance:
  • Long term: 500 N/100mm.
  • Short term: 1000 N/100mm.
• Bending Radius:
  • Static: 15 mm.
  • Dynamic: 30 mm.

Environmental Characteristics:

• Transport/Storage Temperature: -20°C to 70°C.

Delivery Length:

• Standard length: 1000 meters, with other lengths available on request.

This cable is well-suited for reliable fiber optic installations, offering durability and ease of installation with an environmentally safe sheath.
