| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Fiber Optic Cable GJXH |
| Minimum Order Quantity: | 100km |
| Packaging Details: | 2000M / Wooden Spool / Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500KM / Month |
| Jacket: | LSZH | Package: | Wooden Spool ，Φ280*280mm |
|---|---|---|---|
| GJXFH: | FRP Strength Member+2.0*3.0LSZH | GJXH: | Steel Wire Strength Member+2.0*3.0 LSZH |
| GJXH-Small Diamter: | Steel Wire Strength Member+1.6*2.0 LSZH | GJX(F)DH: | Ribbon Fibers+2.0*4.0LSZH |
| Highlight: | LSZH Bow Type Drop Cable,2.0x3.0 Bow Type Drop Cable,GJXH Bow Type Drop Cable |
||

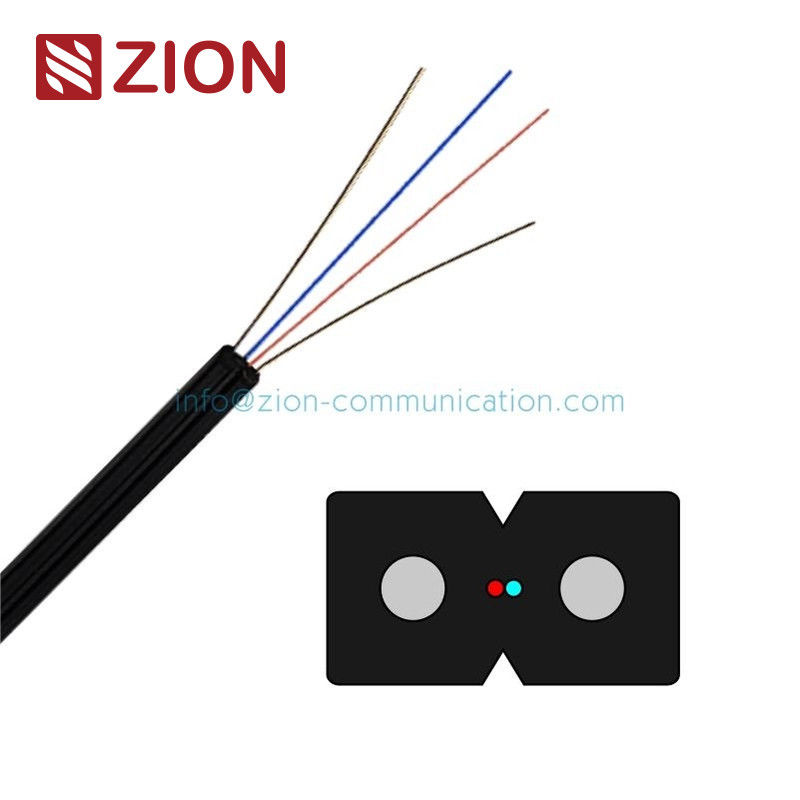

Factory manufacturing GJXH Steel Wire Strength Member 2.0*3.0 LSZH Bow-type Drop Cable
GJXH FTTH Drop Fiber Optic Cables Steel Wire Strength Member 2.0*3.0 LSZH
The typical ASU Self-supporting Drop Optical cable Includes Central Tubes with optical fibre(s),Two Glass FRP as the strength members,a LSZH Sheath is extruded outside.
Lighting resistance
Non-metallic structure
Duct installation and aerial installation together with tension strandwire
Suitable for FTTH application as drop cable
Technical Characteristics
GJXH-1 Diametermm:2.0*3.0
GJXH-1 Weight(kg/km): 10.5
GJXH-1 Tensile strengthLong/short term(N): 100/200
GJXH-1 CrushLong/short term(N/100mm): 500/1000
GJXH-1 Bending RadiusStatic/Dynamic: 15/30
GJXH-2 Diametermm:2.0*3.0
GJXH-2 Weight(kg/km): 10.5
GJXH-2 Tensile strengthLong/short term(N): 100/200
GJXH-2 CrushLong/short term(N/100mm): 500/1000
GJXH-2 Bending RadiusStatic/Dynamic:10D/20D
GJXH-4 Diametermm:2.0*3.0
GJXH-4 Weight(kg/km): 10.5
GJXH-4 Tensile strengthLong/short term(N): 100/200
GJXH-4 CrushLong/short term(N/100mm): 500/1000
GJXH-4 Bending RadiusStatic/Dynamic: 15/30
Transport/storage temperature: -20℃~70℃
Delivery Length
Standard length:1000m;Other length availabe
