| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Single Suspension for OPGW |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Double Suspension for OPGW | |||||||||||||||||||||||||

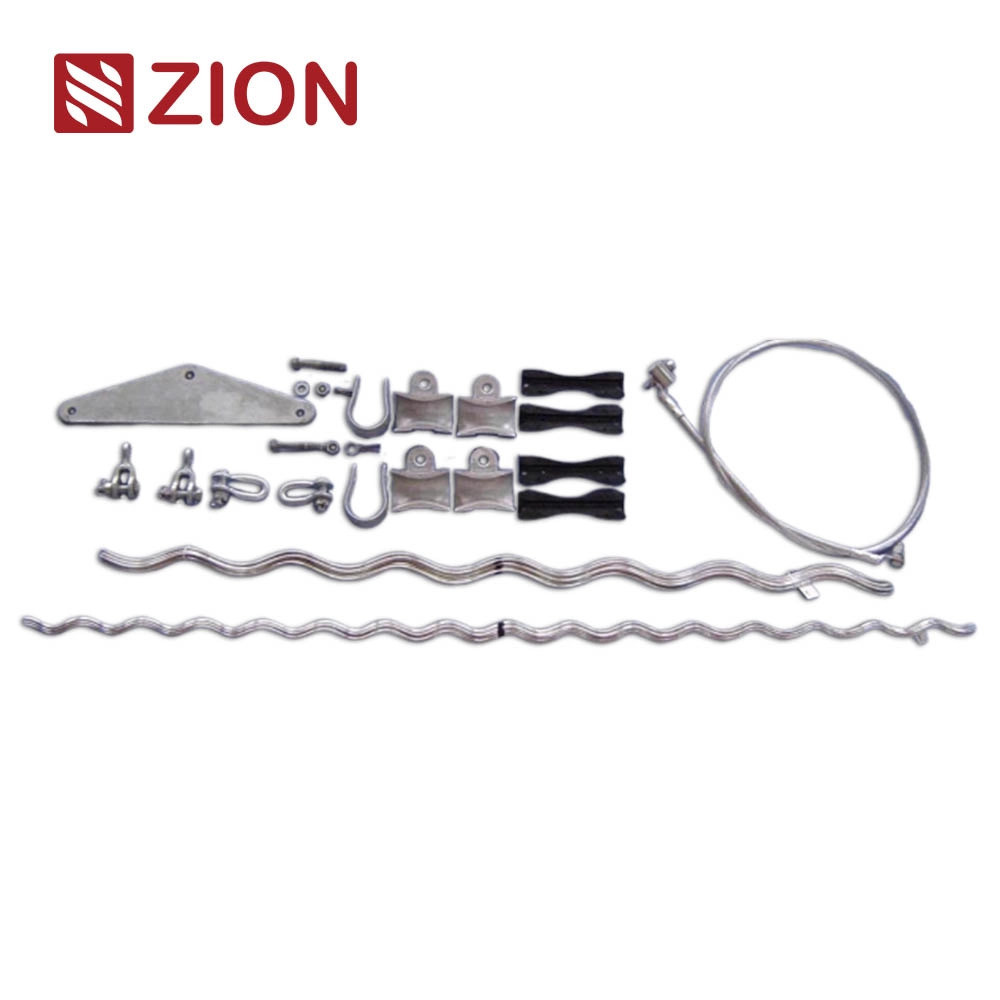

| Double Suspension Set For OPGW with the use of double-Suspension design, including the inner and outer pre-twisted wire to connect two sets of hanging head and matching fittings. Clamp has excellent fatigue resistance, mainly for large height difference, span more than 800 meters or unilateral overhang angle is 30-36 º line tower connection. |
|||||||||||||||||||||||||
| Pictures and illustrations: | |||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||

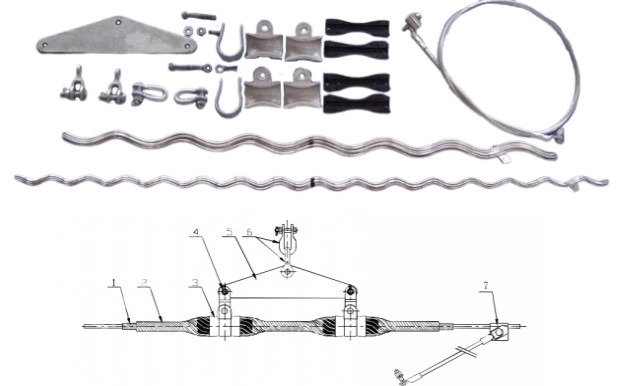

| 1.Structural Reinforcing Rods 2.Dead-end Component 3.AGS Clamp 4.PS-Link 5.YokePlate 6.U-Clevis 7.Grounding Clamps |
|||||||||||||||||||||||||
| Model Specification: | |||||||||||||||||||||||||
| Model | Available Dia. of Cable(mm) |
Length of Structural Reinforcing Rods (mm) |
Length of Outer Rods | Reference Weight (kg) |
Universal Scheme | ||||||||||||||||||||
| AGS Clamp | Link Fittings | ||||||||||||||||||||||||
| ZC-AXY 0940 300 | 8.6-9.4 | 1500 | 1060 | 1.2 | L-1040 | AGS-4 | |||||||||||||||||||
| ZC-OXS 0940 | 8.6-9.4 | 2100 | 1600 | 1.71 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1010 | 9.5-10.1 | 2200 | 1600 | 1.79 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1070 | 10.2-10.7 | 2200 | 1600 | 1.93 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1140 | 10.8-11.4 | 2200 | 1600 | 1.93 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1220 | 11.5-12.2 | 2300 | 1700 | 2.16 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1290 | 12.3-12.9 | 2400 | 1800 | 2.26 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1370 | 13.0-13.7 | 2400 | 1800 | 3.35 | 2*AGS-5 | 2*U-10+L-1040+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1460 | 13.8-14.6 | 2400 | 1800 | 3.59 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1550 | 14.7-15.5 | 2500 | 1900 | 3.99 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1650 | 15.6-16.5 | 2500 | 1900 | 4.24 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1750 | 16.6-17.5 | 2600 | 2000 | 4.41 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
| ZC-OXS 1870 | 17.6-18.7 | 2600 | 2000 | 4.67 | 2*AGS-6 | 2*U-12+L-1240+2*PS-7 | |||||||||||||||||||
| Note: 1. The maximum single side suspension angle of single suspension clamp is 30 ° - 36 °. 2.The above configuration is a general configuration. Please refer to the appendix for other connection hardware and special instructions. 3.If you have special needs, you can consult our technology department. |
|||||||||||||||||||||||||
