| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | FTTH stainless steel flat cable drop clamp |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Product Material: | 201 Stainless Steel Or 304 Stainless Steel | Product Size: | 210*25*18mm |
|---|---|---|---|
| Bearing Tensile: | 2.0 KN | Per Weight: | 49g |
| Applicable Wire Diameter: | Φ2-8mm | Single Box Quantity: | 500pcs/Carton |
| FTTH stainless steel flat cable drop clamp FTTH stainless steel wire clamp02 |
|||||||||||||||||||||||||
 |
|||||||||||||||||||||||||
| Specification: | |||||||||||||||||||||||||
| P/N | ZCSSC-02 | ||||||||||||||||||||||||
| Product Material | 201 stainless steel or 304 stainless steel | ||||||||||||||||||||||||

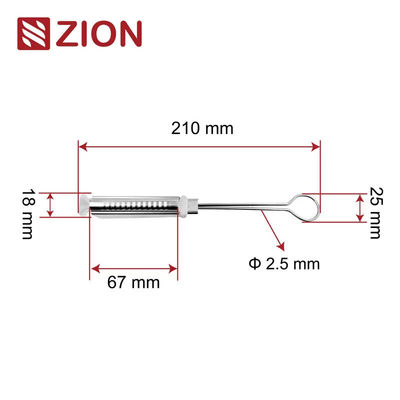

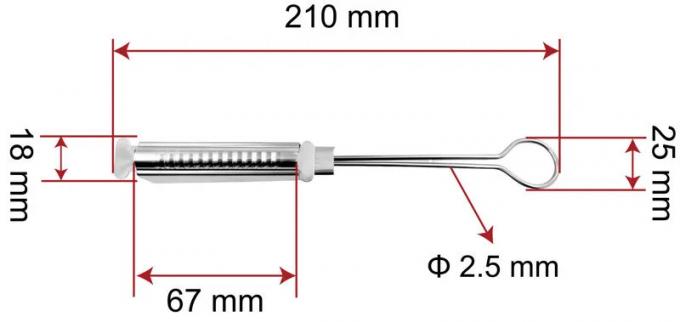

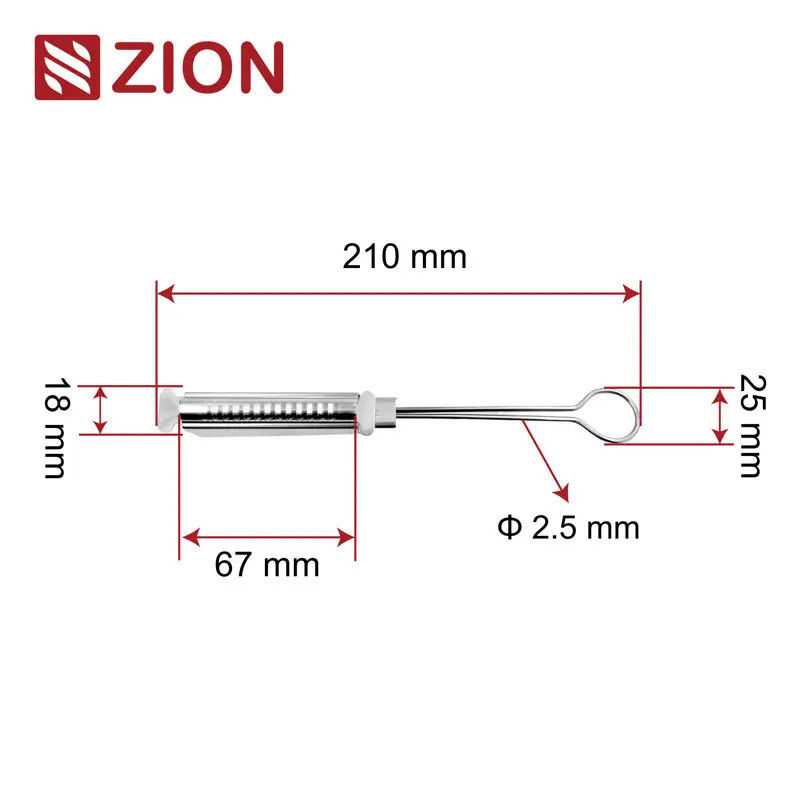

| Product Size | 210*25*18mm | ||||||||||||||||||||||||
| Bearing Tensile | 2.0 KN | ||||||||||||||||||||||||
| Per Weight | 49g | ||||||||||||||||||||||||
| Applicable Wire Diameter | Φ2-8mm | ||||||||||||||||||||||||
| Packing Specifications | Carton Size:40*30*26cm Weight:25.2KG | ||||||||||||||||||||||||
| Single Box Quantity | 500pcs/Carton | ||||||||||||||||||||||||
| Application | Fiber optical systems | ||||||||||||||||||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||||||||||||||||||
| MOQ | 500pcs | ||||||||||||||||||||||||
| Application: | |||||||||||||||||||||||||

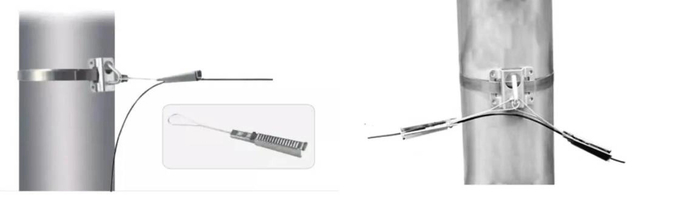

| ● Used for securing many kinds of cables, such as fiber optic cables. ● Used to relieve strain on messenger wire. ● Used to support telephone drop wire at span clamps, drive hooks and various drop attachments. ● Other applications in Fiber optical systems |
|||||||||||||||||||||||||
 |
|||||||||||||||||||||||||
| Features: | |||||||||||||||||||||||||
| ● High tensile strength and stability ● Is used to connect a overhead fiber cable to a optical devices or a house, widely used indoor / outdoor installation. ● Material 201. 304 optional , guarantees long time of usage. ● Suitable for pole and wall mounted usage ● Strong corrosion resistance, acid resistance and alkalinity in the field ● Easy to install with brackets, strappings, buckles and hooks available ● Special designed metal gasket Better cable grip ● High quality with Competitive price ● Perfect environment stability ● Good anti-corrosion performance. ● The serrated shim increases the adhesion of stainless steel wire clamp on cables and wires. ● Drop tension clamp is equipped with stainles steel perforated shim, which increase the tension load on stainless steel clamp without cable slip and damage. |
|||||||||||||||||||||||||
| Description: | |||||||||||||||||||||||||
| ● The product is made of high hardness stainless steel such as 201.304. It consists of three parts: the bottom groove, the middle stainless steel gasket, and the top pressing hook. The three parts are formed by high speed precision punch with progressive abrasive tools The company's stamping equipment is all new high-performance punch with open fixed table, which can accurately complete the stamping work of this product. ● It is suitable for the fixation of butterfly optical cables, with stable tension and durable products. Different materials can adapt to the field environment with different acid and alkali strengths. ● Under normal circumstances, customers can choose 201 stainless steel, and it is recommended to choose 304 stainless steel for coastal or acidic environments, which has strong corrosion resistance, To achieve a longer service life. ● Stainless steel drop wire clamp is a type of wire clamp, which is widely used to support telephone drop wire at span clamps, drive hooks and various drop attachments. Stainless steel wire clamp consists of three parts: a shell, a shim and a wedge equipped with a bail wire. ● It is equipped with perforated shim, which increase the tension load on fiber optic drop. The body made of plastic, which increase the durability of usage of product. This clamp has plastic wire bail, which allows installation on closed hook brackets, other drop wire clamps and hardware. |
|||||||||||||||||||||||||
