| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Tangent Suspension and Single Preformed Rods Suspension for ADSS(Span＜100m) |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |

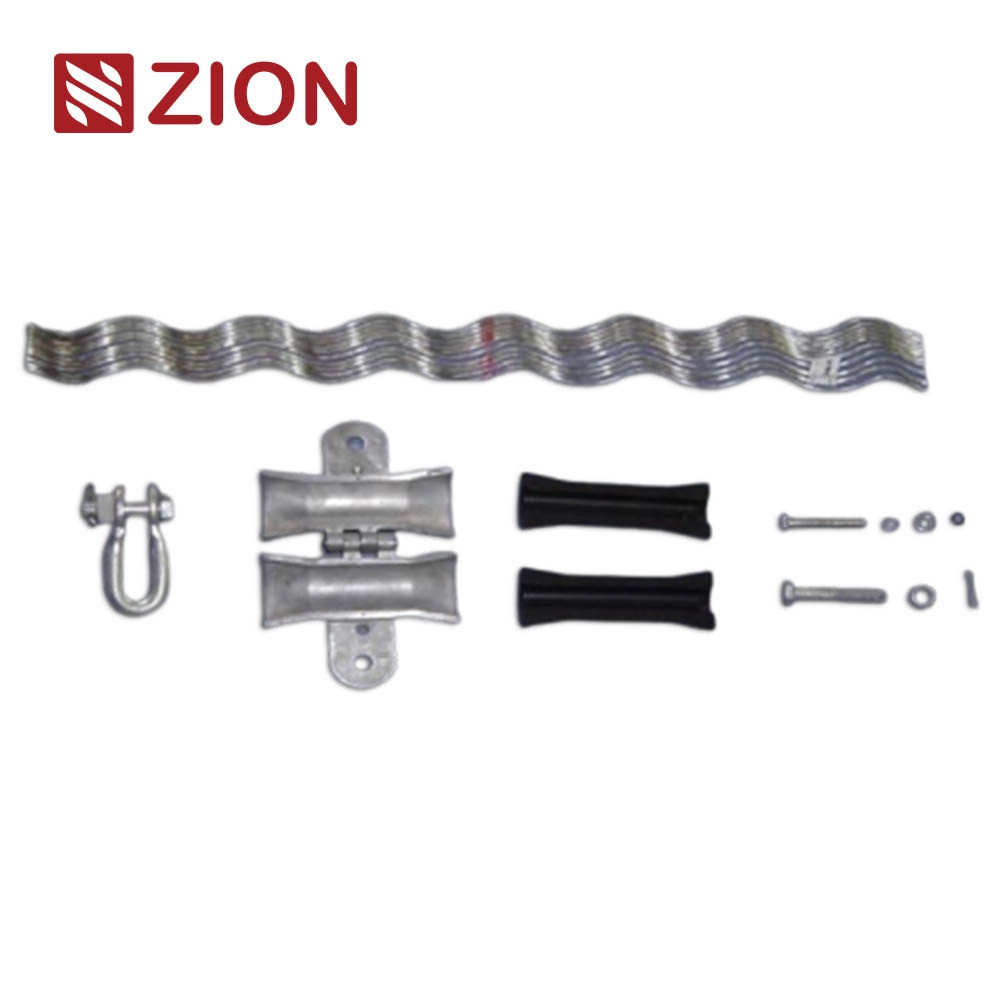

| Tangent Suspension and Single Preformed Rods Suspension for ADSS | |||||||||
| Tangent is mainly used with the tangent clamp connections within a 100m span, single pre-twisted wire Suspension is mainly used within a 200m span connection. |
|||||||||
| Pictures and illustrations: | |||||||||
| Span＜200m | |||||||||
|
|
|||||||||

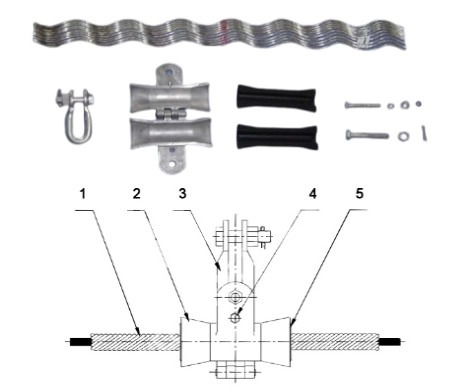

| 1. Preformed Rods 2.AGS Clamp 3.U-Clevis 4.Bolt 5.Latex Pad | |||||||||
| Model Specification (Span ＜ 200m): | |||||||||
| Name | Model | Available Dia. of Cable(mm) |
Length of Reinforcing Rods(mm) | Universal Scheme | Available Dia. of Span (m) |
||||
| AGS Clamp /Weight(kg) | U-Clevis | Thimble | |||||||
| Tangent Clamp for ADSS |
ZC-AXD 0950 | 9.0-9.5 | 800 | XGT-25 | 1.00 | U-4 | ＜200 | ||
| ZC-AXD 1050 | 9.6-10.5 | 800 | XGT-25 | 1.00 | U-4 | ||||
| ZC-AXD 1160 | 10.6-11.6 | 800 | XGT-25 | 1.00 | U-4 | ||||
| ZC-AXD 1280 | 11.7-12.8 | 860 | XGT-25 | 1.00 | U-4 | ||||
| ZC-AXD 1410 | 12.9-14.1 | 900 | XGT-25 | 1.00 | U-4 | ||||
| ZC-AXD 1560 | 14.2-15.6 | 1000 | XGT-25 | 1.00 | U-4 | ||||
| ZC-AXD 1700 | 15.7-17.0 | 1000 | XGT-25 | 1.00 | U-4 | ||||
