| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Tangent Suspension and Single Preformed Rods Suspension for ADSS(Span＜100m) |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Tangent Suspension and Single Preformed Rods Suspension for ADSS(Span＜100m) | |||||||
| Tangent is mainly used with the tangent clamp connections within a 100m span, single pre-twisted wire Suspension is mainly used within a 200m span connection. |
|||||||

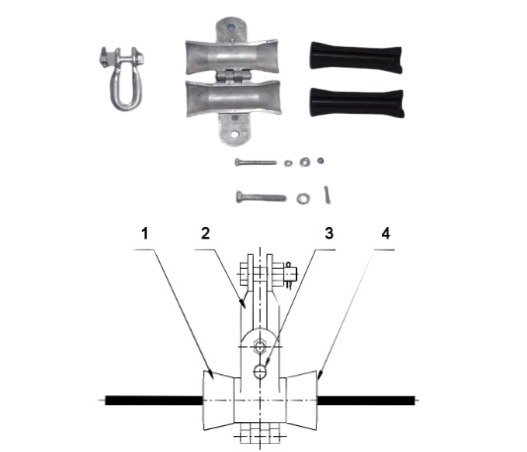

| Pictures and illustrations: | |||||||
| Span=100m | |||||||
|
|
|||||||
| Model Specification (Span ＜ 100m): | |||||||
| Name | Model | Available Dia. of Cable(mm) |
Universal Scheme | Available Dia. of Span (m) |
|||
| AGS Clamp /Weight(kg) | U-Clevis | ||||||
| Tangent Clamp for ADSS |
ZC-AXQ 1110 | 9.0-11.1 | XGT-25 | 1.00 | U-4 | 100 | |
| ZC-AXQ 1330 | 11.2-13.3 | XGT-25 | 1.00 | U-4 | |||
| ZC-AXQ 1550 | 13.4-15.5 | XGT-25 | 1.00 | U-4 | |||
| ZC-AXQ 1770 | 15.6-17.7 | XGT-25 | 1.00 | U-4 | |||
| ZC-AXQ 1900 | 17.8-19.0 | XGT-25 | 1.00 | U-4 | |||
