Dead-End Clamp for Medium and Long Span Applications | Durable Tension Hardware for Aerial Cable Installations

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Dead-end for Medium /Long Span ADSS

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Product Description

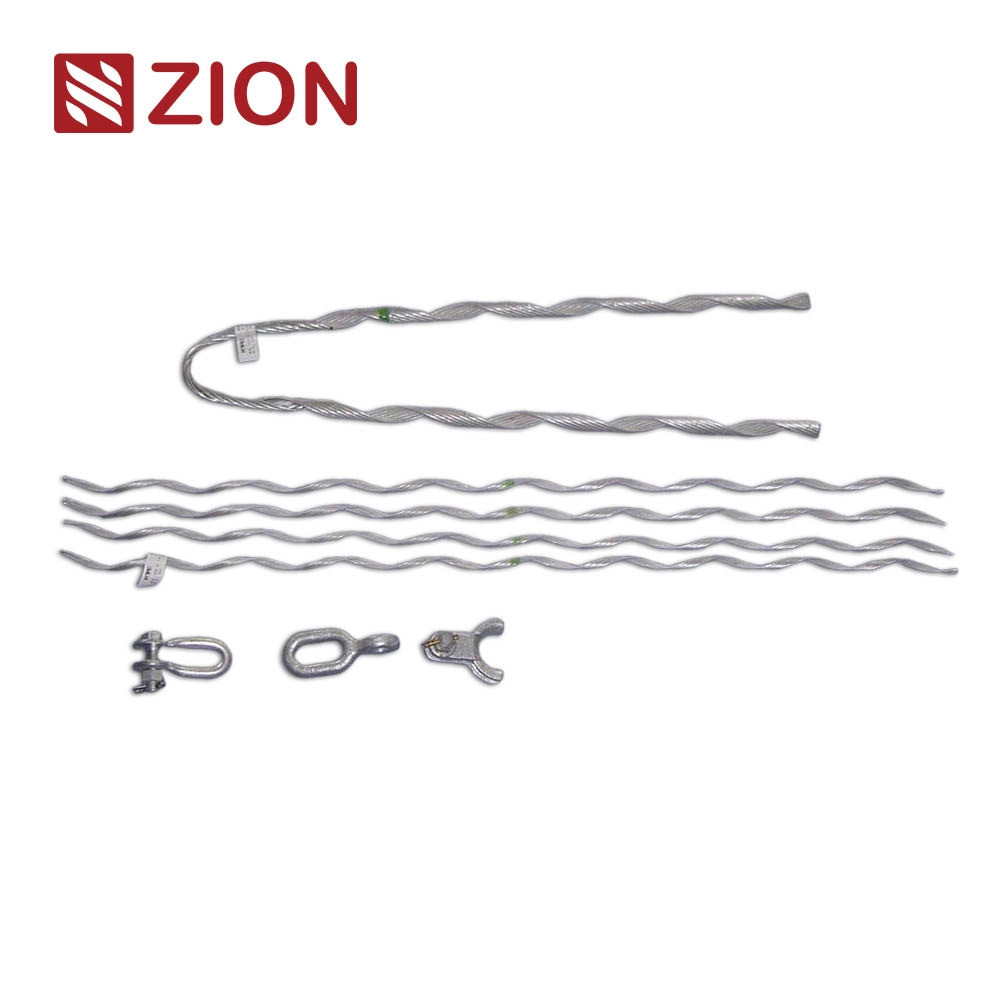

Dead-end for Medium /Long Span ADSS
Dead-end for Medium Span ADSS in tension and large tension Clamp material for aluminum-clad steel wire, mainly used for files larger than 100 meters away from the corner tower, the middle tower and Terminal Tower successive connection.

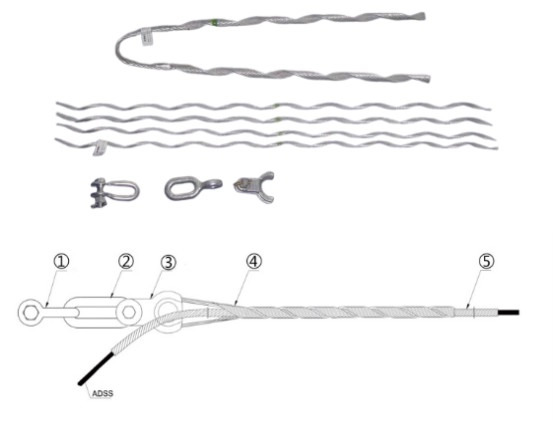

Pictures and illustrations:

1.U-Clevis 2.PH-Link 3.Thimble 4.Dead-end Component 5.Structural Reinforcing Rods

Model Specification:
Model	Available Dia. of Cable (mm)	Grip strengt h (kN)	Length of Dead-end Component (mm)	Length of Reinforcing Rods(mm)	Reference Weight (kg)	Universal Scheme			Reference Span (m)
						Link	Thimble	Clevis
ZC-ANY 0940 020	8.6-9.4	20	800	1100	0.9	PH-4	TC-2	U-4	200~300
ZC-ANY 1010 020	9.5-10.1	20	800	1100	0.9	PH-4	TC-2	U-4	200~300
ZC-ANY 1070 020	10.2-10.7	20	800	1100	1	PH-4	TC-2	U-4	200~300
ZC-ANY 1140 020	10.8-11.4	20	800	1100	1	PH-4	TC-2	U-4	200~300
ZC-ANY 1220 020	11.5-12.2	20	800	1100	1.1	PH-4	TC-2	U-4	200~300
ZC-ANY 1290 020	12.3-12.9	20	800	1100	1.4	PH-4	TC-2	U-4	200~300
ZC-ANY 1370 020	13.0-13.7	20	800	1100	1.3	PH-4	TC-4	U-4	200~300
ZC-ANY 1460 020	13.8-14.6	20	800	1100	1.3	PH-4	TC-4	U-4	200~300
ZC-ANY 1550 020	14.7-15.5	20	800	1100	1.5	PH-4	TC-4	U-4	200~300
ZC-ANY 0940 030	8.6-9.4	30	1100	1400	1.2	ZH-4	TC-2	U-4	300~400
ZC-ANY 1010 030	9.5-10.1	30	1100	1400	1.2	ZH-4	TC-2	U-4	300~400
ZC-ANY 1070 030	10.2-10.7	30	1100	1400	1.4	ZH-4	TC-2	U-4	300~400
ZC-ANY 1140 030	10.8-11.4	30	1100	1400	1.4	ZH-4	TC-2	U-4	300~400
ZC-ANY 1220 030	11.5-12.2	30	1100	1400	1.7	ZH-4	TC-4	U-4	300~400
ZC-ANY 1290 030	12.3-12.9	30	1100	1400	1.7	ZH-4	TC-4	U-4	300~400
ZC-ANY 1370 030	13.0-13.7	30	1100	1400	1.9	ZH-4	TC-4	U-4	300~400
ZC-ANY 1460 030	13.8-14.6	30	1100	1400	1.9	ZH-4	TC-4	U-4	300~400
ZC-ANY 1550 030	14.7-15.5	30	1100	1400	2.1	ZH-4	TC-4	U-4	300~400
ZC-ANY 1220 040	11.5-12.2	40	1260	1800	2	PH-7	TC-7	U-7	400~500
ZC-ANY 1290 040	12.3-12.9	40	1260	1800	2	PH-7	TC-7	U-7	400~500
ZC-ANY 1370 040	13.0-13.7	40	1260	1800	2.3	PH-7	TC-7	U-7	400~500
ZC-ANY 1460 040	13.8-14.6	40	1260	1800	2.3	PH-7	TC-7	U-7	400~500
ZC-ANY 1550 040	14.7-15.5	40	1260	1800	2.3	PH-7	TC-7	U-7	400~500
ZC-ANY 1650 040	15.6-16.5	40	1260	1800	2.9	PH-7	TC-7	U-7	400~500
ZC-ANY 1370 050	13.0-13.7	50	1260	1800	2.9	PH-7	TC-7	U-7	500~700
ZC-ANY 1460 050	13.8-14.6	50	1400	2000	3	PH-7	TC-7	U-7	500~700
ZC-ANY 1550 050	14.7-15.5	50	1400	2000	3.1	PH-7	TC-7	U-7	500~700
ZC-ANY 1650 050	15.6-16.5	50	1400	2000	3.2	PH-7	TC-7	U-7	500~700
ZC-ANY 1370 060	13.0-13.7	60	1560	2200	3.2	PH-7	TC-7	U-7	600~800
ZC-ANY 1460 060	13.8-14.6	60	1560	2200	3.3	PH-7	TC-7	U-7	600~800
ZC-ANY 1550 060	14.7-15.5	60	1560	2200	3.7	PH-10	TC-10	U-10	600~800
ZC-ANY 1650 060	15.6-16.5	60	1560	2200	3.8	PH-10	TC-10	U-10	600~800
ZC-ANY 1460 070	13.8-14.6	70	1600	2400	3.8	PH-10	TC-10	U-10	700~900
ZC-ANY 1550 070	14.7-15.5	70	1600	2400	3.9	PH-10	TC-10	U-10	700~900
ZC-ANY 1650 070	15.6-16.5	70	1600	2400	4	PH-10	TC-10	U-10	700~900
ZC-ANY 1750 070	16.6-17.5	70	1600	2400	4.5	PH-10	TC-10	U-10	700~900
ZC-ANY 1870 070	17.6-18.7	70	1600	2400	4.6	PH-10	TC-10	U-10	700~900
ZC-ANY 1550 080	14.7-15.5	80	2000	3000	5.5	PH-10	TC-10	U-10	800~1000
ZC-ANY 1650 080	15.6-16.5	80	2000	3000	5.6	PH-10	TC-10	U-10	800~1000
ZC-ANY 1750 080	16.6-17.5	80	2000	3000	5.6	PH-10	TC-10	U-10	800~1000
