| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Dead-end for Short Span ADSS |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Dead-end for Short Span ADSS | |||||||||||||||||||||||||
| Dead-end for Short Span ADSS with a small Tension Clamp material for aluminum-clad steel wire, mainly used for the corner towers, the middle of follow-tower and connecting the terminal tower, the largest installation file from the less than 100 meters. | |||||||||||||||||||||||||
| Pictures and illustrations: | |||||||||||||||||||||||||
 |
|||||||||||||||||||||||||

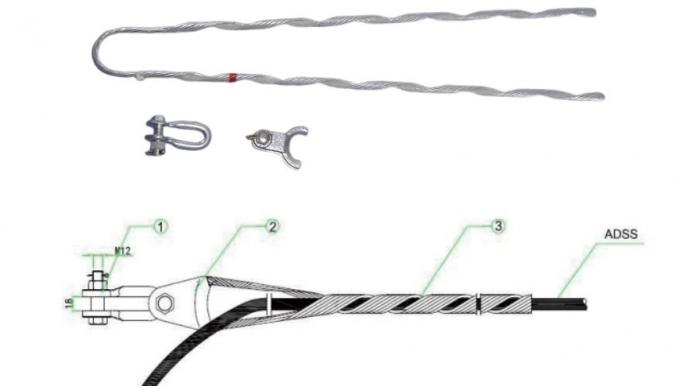

| 1.U-Clevis 2.Thimble 3.Helical Dead-end | |||||||||||||||||||||||||
| Model Specification: | |||||||||||||||||||||||||
| Model | Available Dia. of Cable(mm) |
Length of Dead-end Component (mm) |
Reference Weight (kg) |
Universal Scheme | |||||||||||||||||||||
| U-Clevis | Thimble | ||||||||||||||||||||||||
| ZC-ANJ 0950 | 9.0-9.5 | 700 | 0.4 | U-4 | TC-2 | ||||||||||||||||||||
| ZC-ANJ 1050 | 9.6-10.5 | 850 | 0.5 | U-4 | TC-2 | ||||||||||||||||||||
| ZC-ANJ 1160 | 10.6-11.6 | 1000 | 0.5 | U-4 | TC-2 | ||||||||||||||||||||
| ZC-ANJ 1280 | 11.7-12.8 | 960 | 0.7 | U-4 | TC-2 | ||||||||||||||||||||
| ZC-ANJ 1410 | 12.9-14.1 | 1080 | 0.8 | U-4 | TC-2 | ||||||||||||||||||||
| ZC-ANJ 1560 | 14.2-15.6 | 1160 | 1.2 | U-4 | TC-2 | ||||||||||||||||||||
| ZC-ANJ 1700 | 15.7-17.0 | 1160 | 1.2 | U-4 | TC-2 | ||||||||||||||||||||
