| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Hoop Retractor&Pole Brackets |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Product Material: | Galvanized Steel | Product Size: | 66*66*55 Mm |
|---|---|---|---|
| Bearing Tensile: | 2.0KN | Per Weight: | 116g |
| Applicable Wire Diameter: | Wall Or Pole | Single Box Quantity: | 200pcs/Carton |
| Hoop Retractor/Pole Brackets Fiber Optic Cable Hanger Hook Pole Bracket Fiber Optica FTTH Embrace Hoop Fastening Retractor |
|||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||
| Specification: | |||||||||||||||||||||||||
| P/N | ZCGSC-05 | ||||||||||||||||||||||||
| Product Material | Galvanized steel | ||||||||||||||||||||||||

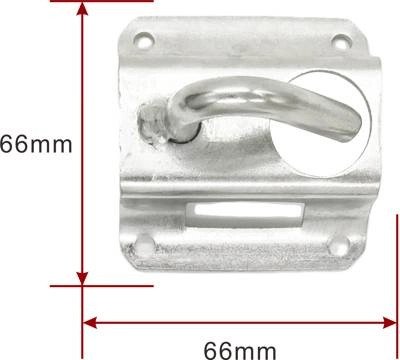

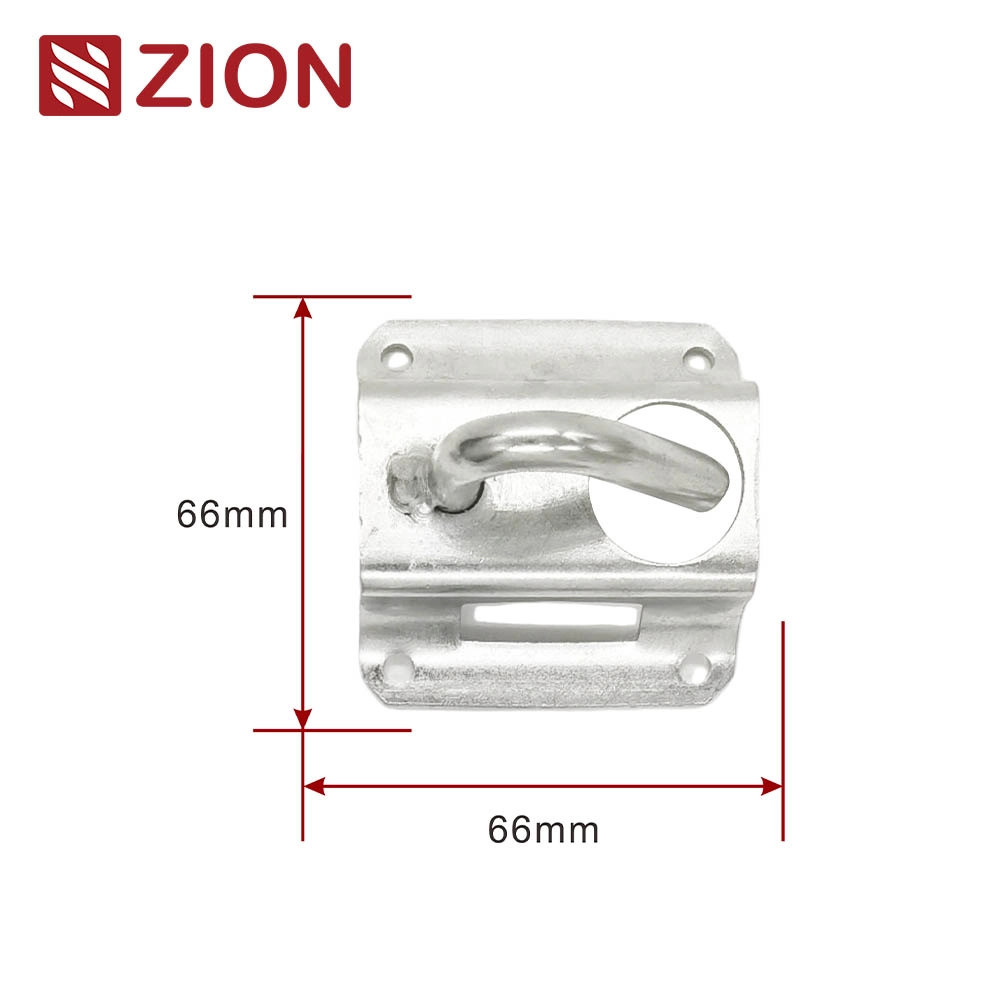

| Product Size | 66*66*55 mm | ||||||||||||||||||||||||
| Bearing Tensile | 2.0 KN | ||||||||||||||||||||||||
| Per Weight | 116 g | ||||||||||||||||||||||||
| Applicable | wall or pole | ||||||||||||||||||||||||
| Packing Specifications | Carton Size:38*29*26cm Weight:24KG | ||||||||||||||||||||||||
| Single Box Quantity | 200pcs/Carton | ||||||||||||||||||||||||
| Application | Fiber optical systems | ||||||||||||||||||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||||||||||||||||||
| MOQ | 200pcs | ||||||||||||||||||||||||
| Application: | |||||||||||||||||||||||||

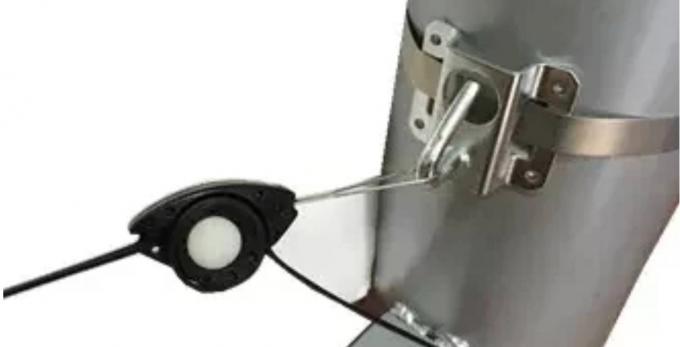

| ● Used in drop cable installations as an attachment to strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable. ● Installed on the building external wall with the screw; the device used for connecting and fixing the J-type fixing part. ● Light -weighted,compacted and rugged construction. ● For cable entrance holes and to keep Out insect prvent dust from setting inside Cable exit holed(or entry) for cable to connect to fiber optical terminal Equipments or vice versa. ● Other applications in Fiber optical systems |
|||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||
| Features: | |||||||||||||||||||||||||
| ● High tensile strength and stability. ● Is used to connect a overhead fiber cable to a optical devices or a house, widely used indoor / outdoor installation. ● It can facilitate the flexible layout of various use scenarios such as intermediate outgoing line. ● The cloth is straight and nice. ● Strong corrosion resistance, acid resistance and alkalinity in the field. ● Simple installation, independent of tool operation and suitable for single person construction. ● Wide range messenger diameter. ● High quality with Competitive price. ● Perfect environment stability. ● The installation efficiency and construction quality of line assembly, disassembly and relocation are improved. ● Reduce obstacles caused by external influences. ● It is fastened on the steel strand and used to pull, hang and fix the wedge anchor, steel wire anchor, S-shaped fastener and other devices on the steel strand. |
|||||||||||||||||||||||||
| Description: | |||||||||||||||||||||||||
| ● FTTH hook is designed to tension or suspension drop wire clamps or FTTH anchor clamps with appropriate cable messenger or without it, in outdoor FTTH solutions. ● FTTH drop cable fitting is easy in installation, and requires no preparation of optical cable clamp before attaching. Open hook has pigtail type with self-locking construction perform easiest installation on fiber optic walls. ● Draw Hook for fiber optic cabling, used to hanging cable. The body is made of Galvanized steel ( hot-dipgalvanized for durable in the rural environment and keep good reliability), Easy to install and operate, Effectiveand time saving for cabling. ● Cable with splint hooks can be fixed with the splint 90 degrees rotation, used to fix the role of cable line, fastening on the Strand, for the S-type fixed parts connected to the steel stranded wire devices. ● It is made of corrosion resistant, high quality steel. It is used in drop cable installations as an attachment to strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable and used to provide drop wire take-offs along the span and relieve tension on the drop at this point. |
|||||||||||||||||||||||||
