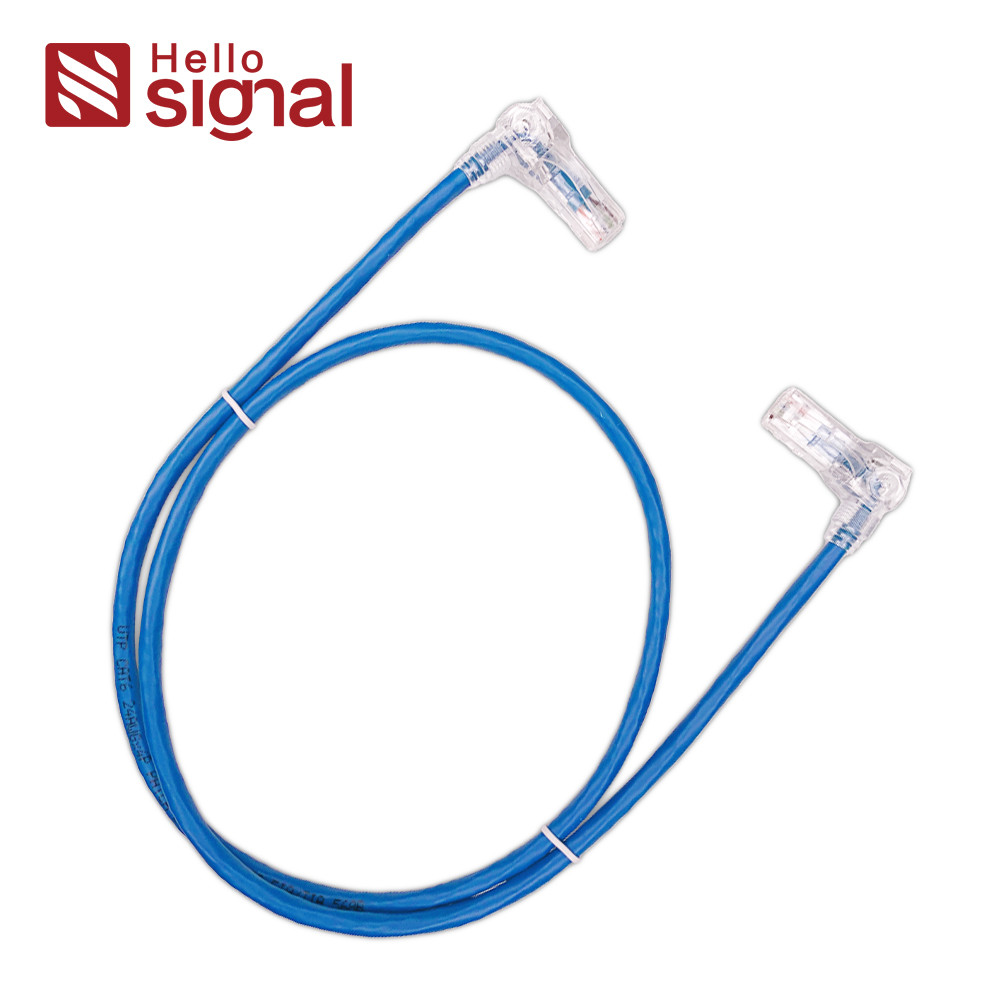

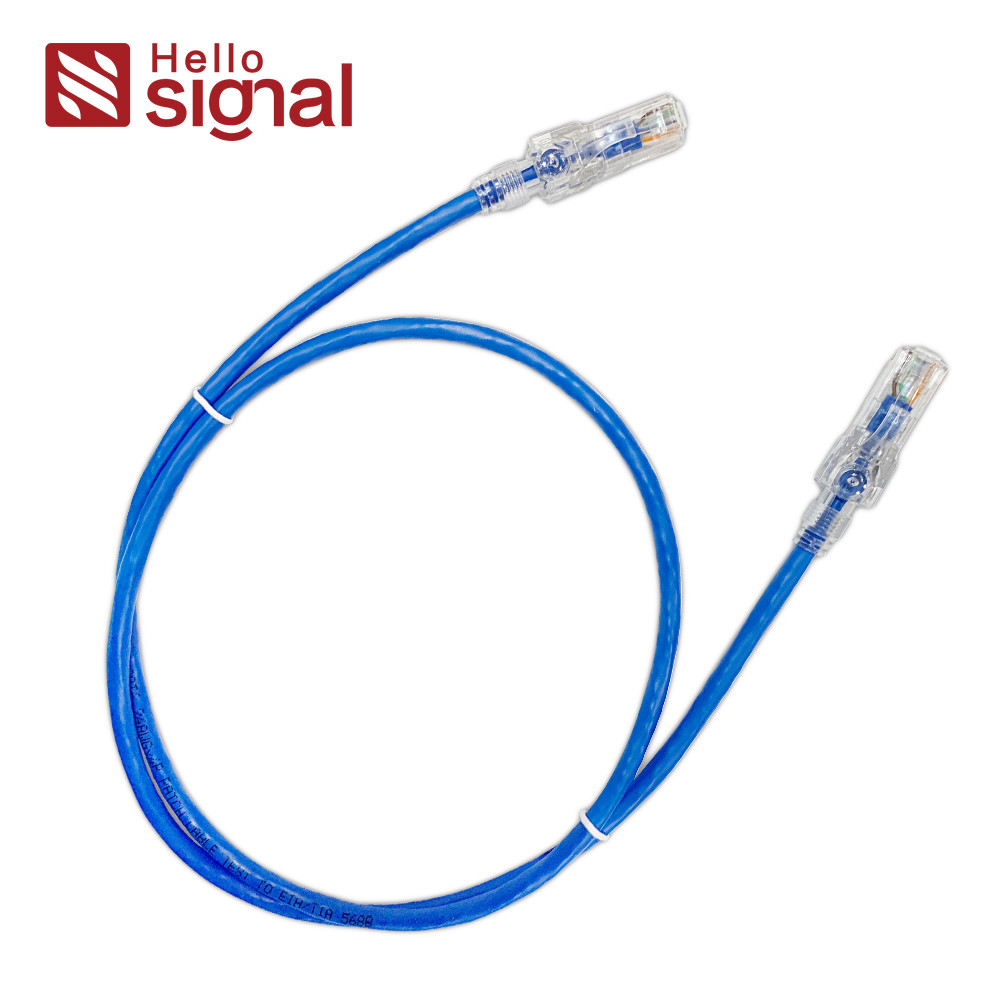

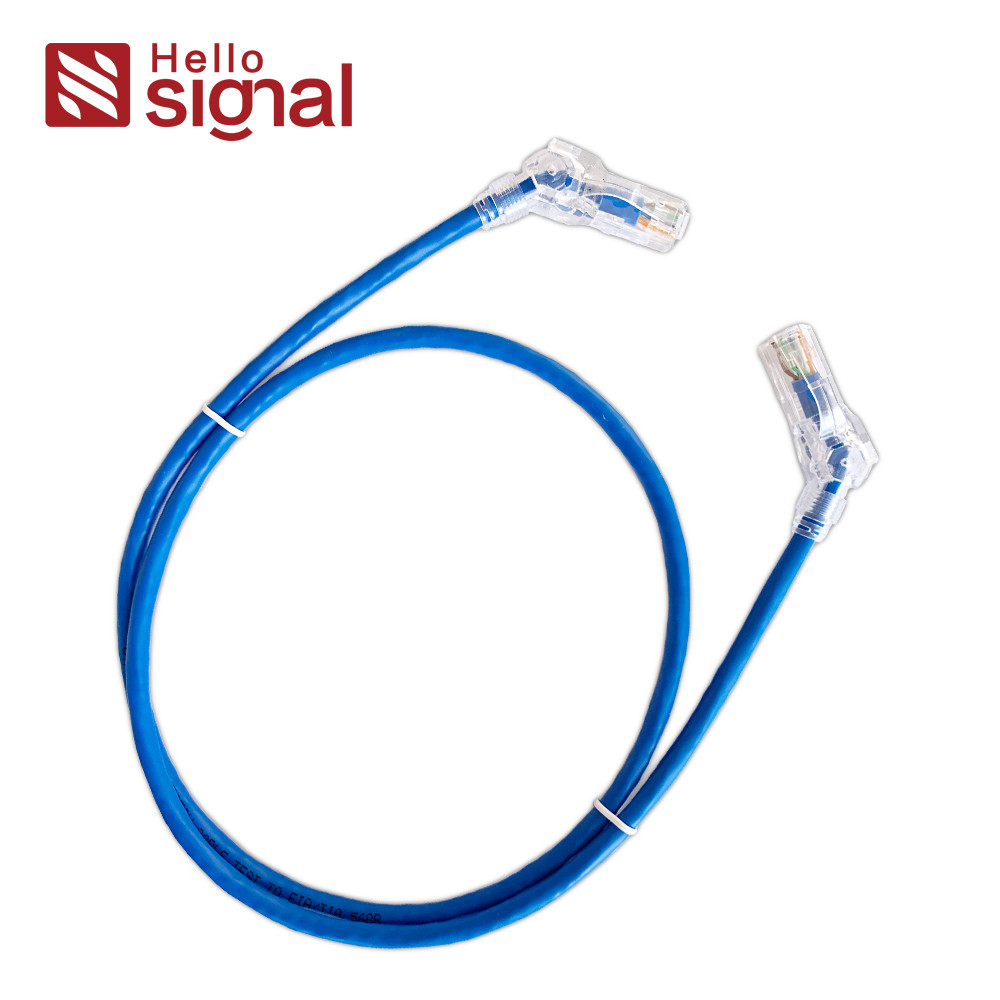

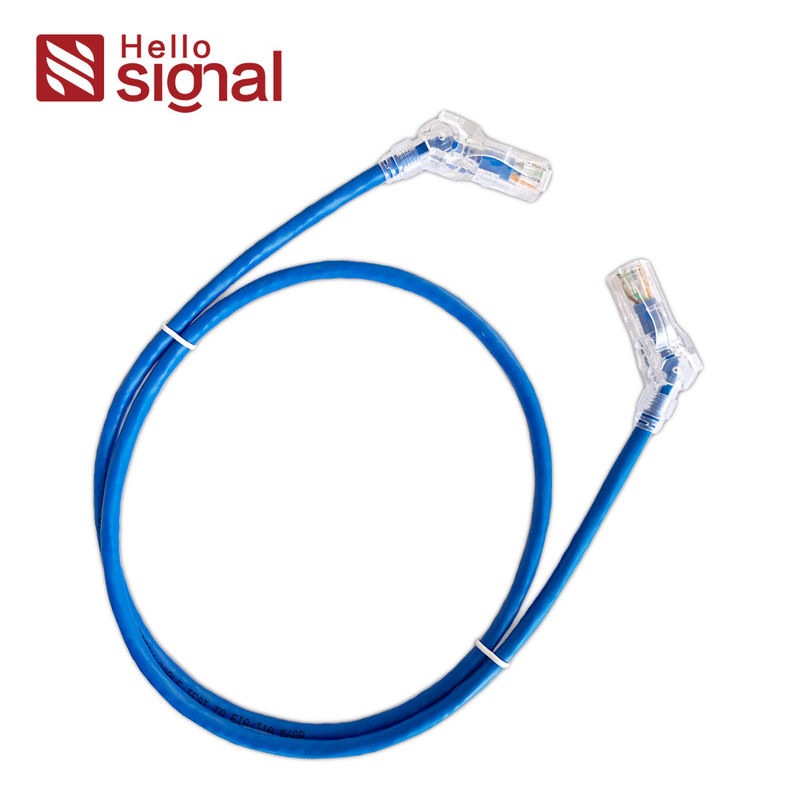

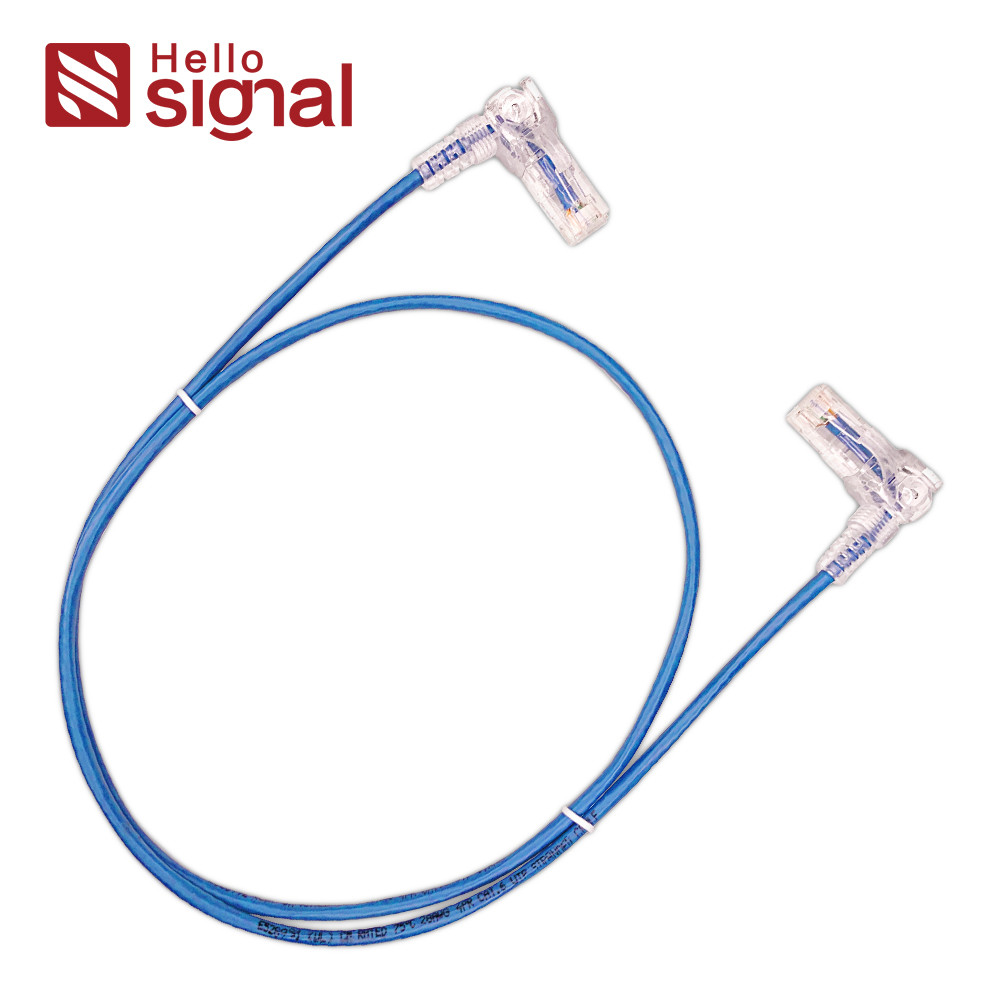

Stranded Bare Copper Conductor UTP CAT6 Patch Cord 360 Degree Stereo Rotation

360 Degree Stereo Rotation (Patent model)

Application: CAT 6 U/UTP Patch Cord with 360-Degree Rotatable Elbow

This advanced CAT 6 U/UTP Patch Cord from ZION Communication is specifically designed to meet the

demands of high-speed data transmission in data centers, enterprise networks, and mission-critical environments.

Its unique 360-degree rotatable elbow and other high-performance features make it ideal for environments where

flexibility, high-speed, and durability are crucial.

Key Features:

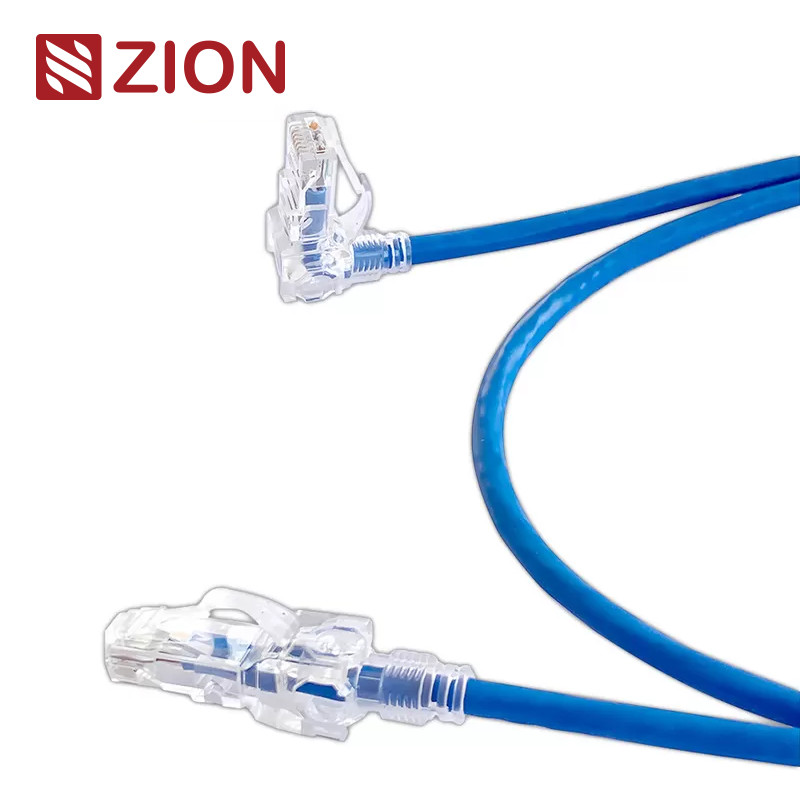

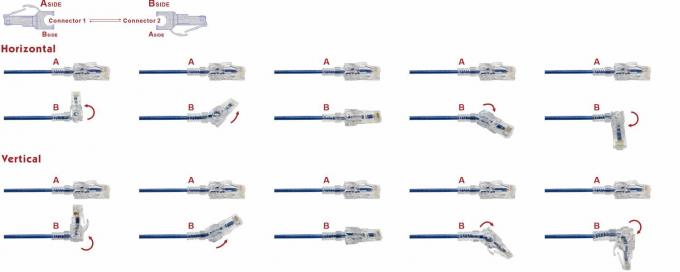

1. True 360-Degree Stereo Rotation:

   The patch cord features a 360-degree rotatable elbow, allowing you to freely adjust the angle of the cablewithout worrying about directional issues. This ensures a neat and tidy wiring setup, accommodating variousinstallation needs and helping to avoid tangling or awkward bends.

2. Patented Three-Dimensional Elbow Design:

   The three-dimensional elbow design rotates smoothly through 360 degrees, offering exceptional flexibility.It is suitable for both regular 24AWG patch cords and ultra-fine 32AWG wires, ensuring compatibility acrossvarious wire gauges without compromising on durability or performance.

3. Uncompromised High-Speed Transmission:

   The 360-degree elbow design ensures that the patch cord delivers ultra-high-speed transmission withoutnegatively impacting performance metrics such as:

• Power Sum ELNEXT (PSELNEXT)
• Equal Level NEXT (ELNEXT)
• Power Sum NEXT (PSNEXT)
• Near-End Crosstalk (NEXT)
• Delay Skew
• Propagation Delay
• Insertion Loss
• Return Loss (RL)
• The cable maintains a stable network connection, ensuring consistent, high-speed data transfer even in demanding environments.

Gold-Plated Contacts and Chip:

• The connectors are equipped with thickened, gold-plated contacts, which offer superior oxidation resistance and enhanced durability,
• particularly during frequent plugging and unplugging.
• The gold-plated three-hole chip provides a snug fit with the network cable, improving conductivity and resulting in faster, more stable
• network speeds.

Stable Internet Connection:

• Designed to ensure uninterrupted internet connection, this patch cord minimizes issues such as line drops, frame jams, and other
• connectivity problems, making it perfect for online gaming, seamless movie streaming, and high-demand applications.

Wide Compatibility:

• This patch cord is compatible with a wide range of devices including:
  • Computers
  • Routers
  • Switches
  • TVs
  • Set-top boxes
  • Various other devices that require a reliable and high-performance network connection.

Technical Specifications:

• Category: CAT 6 U/UTP (Unshielded Twisted Pair)
• Compliance: Conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, and CENELEC EN50173 standards.
• Channel Testing: Tested up to 250 MHz (Category 6 channel).
• Protocols Supported:
  • IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T
  • HDBase-T A & B, ATM, CATV
• Usage: Ideal for data centers, computer hubs, switches, routers, DSL/cable modems, patch panels, and more.

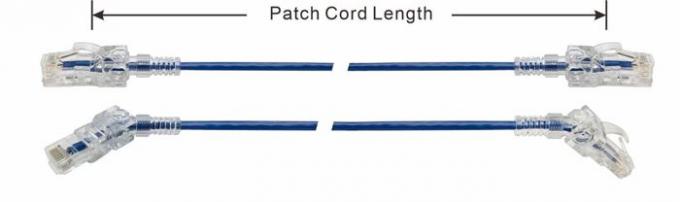

Picture diagram:

CAT6 Patch cord with 360 Degree Stereo Rotation

Connector Specifications (RJ45):

• Description:

  Plug: Made of Polycarbonate for durability and a 360-degree stereo rotation feature, ensuring flexible cable managementand better handling in tight spaces.

• Type:

  RJ45, the standard connector for Ethernet networking.

• Boot:

  LSZH or PVC, designed for a snagless connection to prevent damage during handling.

• Front Connection:

  Phosphor Bronze contacts with 50μ-inch Gold over Nickel Plating, ensuring excellent conductivity and corrosionresistance for reliable long-term performance.

• Blades:

  Copper Alloy, Nickel-Plated, which helps maintain consistent signal quality by reducing corrosion and ensuring a stableconnection.

• Durability:

  750 mating cycles minimum, ensuring a long-lasting, reliable connection even in high-traffic environments.

OEM/ODM Services Offered by ZION Communication

ZION Communication offers comprehensive OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer)

services tailored to meet the specific needs of customers in a wide variety of industries. Leveraging a professional R&D team and

extensive experience, ZION can deliver customized solutions that align with your branding, functionality, and product requirements.
