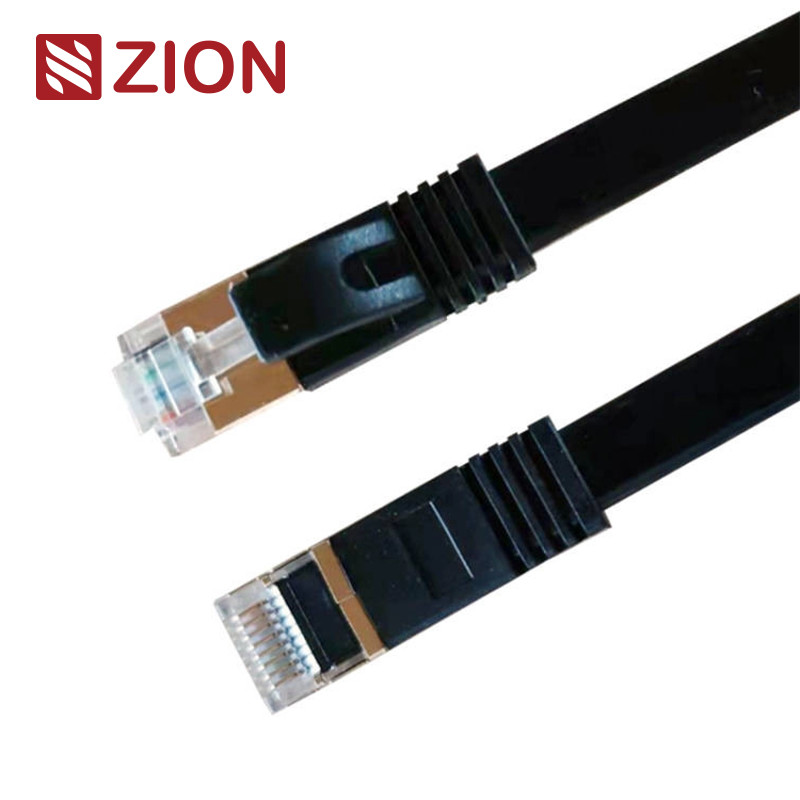

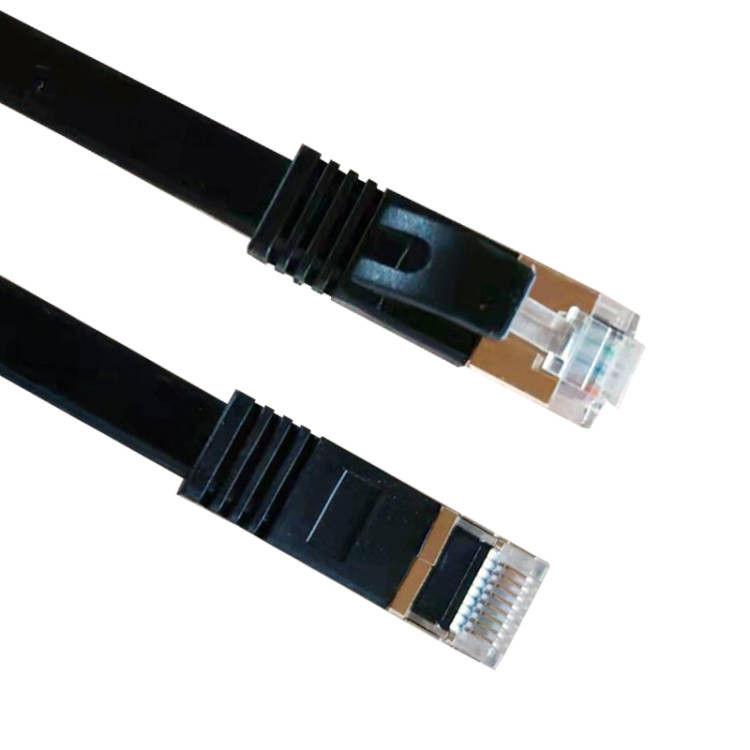

Stranded bare copper FLAT CAT6 FTP RJ45 Patch Cord with LSZH/PVC

7241008 FLAT CAT.6 FTP RJ45 Patch Cord Patch Cable

Application:

• Conductor:Stranded bare copper
• Pairs:4 Pairs
• Insulation:HDPE
• Insulation ColorPerTLAVEIA 568-B:

​Orange, White/White-Orange

Blue, White,white-Blue

Green, White/White-Green

Brown, White/White-Brown

• Individual Shield:Pair in AVPET Foil.Auminum face outwards,100% coverage
• Out Jacket:LSZH OR PVC
• Frequency Range:1-250 Mhz
• Impedance:100Ω
• MaxResistanceUnbalance:2%
• Current Rating:1.5A
• Voltage:72 VDC Max
• Operating Temp:Min.-20°C, Max.+60°C

Connector:

• Plug Material:Polycarbonate
• Plug Type:RJ45
• Boot Material:LSZH OR PVC
• Boot Type:Snagless
• Front Connection Material:Phosphor Bronze with 50u inch Gold over Nickel Plating
• Front Connection Type:Blades
• Durability:750 Mating Cycles min.

Characteristics:

• FLAT Cat 6 CLASS:G (I)
• FLAT Cat 6 MAX. OPERATING FREQUENCY:250MHz
• FLAT Cat 6 SHIELDING TYPE:FTP
• FLAT Cat 6 PLUG CONNECTOR:RJ45
• FLAT Cat 6 USED FOR:Lengths of 55m
• FLAT Cat 6 NOTE:

Faster server interconnection.

Connections in data centres.

• FLAT Cat 6 NORMAL:ISO/IECTR 11801-99-1

OEM/ODM Services:

1. Consult with ZION's Team: Discuss your requirements for custom cables, connectors, packaging, or any other tailored specifications.
2. Prototype Development: ZION will create a custom prototype for your review, ensuring it meets your exact needs.
3. Finalize Design: After approval, your product will move into bulk production, with continuous monitoring of quality.
4. Delivery: Once production is complete, ZION ensures your customized products are delivered on time.

Packing:
