| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Mating Durability（cycle）: | ≥1000 | Max Optical Input Power(mw): | 200 |
|---|---|---|---|
| Attenuation Tolerance(dB): | 2 To 10dB: +/- 1 DB &11 To 20 DB: +/- 10% DB | Vibration Hz(2hr): | 10～55 |
| Operating Temperature (℃）: | -5 ~ +85 | Storage Temperature (℃）: | -40 ~ +75 |
| Highlight: | 12F MPO Attenuator,Female MPO Attenuator,Male MPO Attenuator |
||

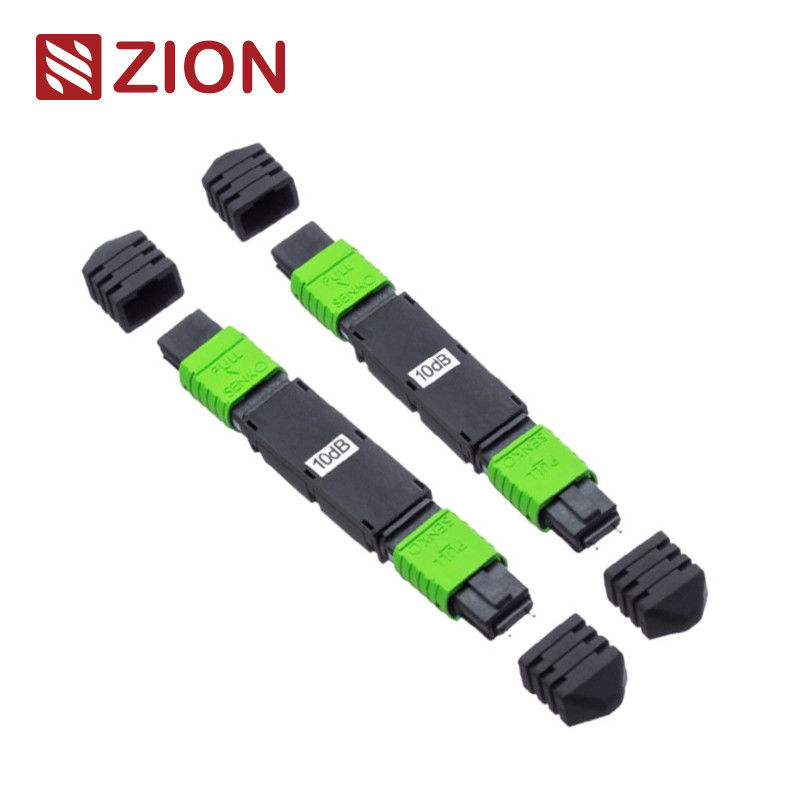

12F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB)
Female to male Fixed attenuators from OMC offer defined control of optical signals in both integrated and add-on products.
Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels
your project or application requirement. These precise attenuation levels provide for highly accurate performance.
ZION COMMUNICATIONS’ Fiber Optic Attenuator is a kind of optical device that can reduce the energy of optical signal. It is used to
attenuate the input optical power and avoid the distortion caused by the optical receiver due to the super strong input optical power.
Fiber Optic Attenuator, as a kind of optical passive device, is used for debugging optical power performance, debugging and calibration
of optical fiber instrument in optical communication system, and optical fiber signal attenuation. The product is made of attenuating fiber
doped with metal ions, which can adjust the optical power to the required level.
Mainly used in: 1.CWDM&DWDM,2. data center networks,3. CATV systems,4.Test Equipment 5.40G/100G Installations
MPO Attenuator is a passive component designed to evenly reduce the power of an optical signal for each fiber channel in
the MPO connector without changing the signal’s fundamentalform. This attenuator is ideal for 40/100G applications, parallel
optical transmission and other high density applications that useMPO connectors. The MPO Attenuator can significantly simplify
network design, improve installation efficiency and save space.
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .
Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.
OMC’s LC Female to LC male Fixed attenuator are available for SM UPC (1-25dB) and SM APC (1-25dB)
ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.
 |
7237015, ZC11FXOODXX | 24F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB) | |
 |
7237014, ZC11FXNNDXX | 12F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB) | |
 |
7237013, ZC12FXMMDXX | 8F MPO Female male Plug-in Fixed Fiber Optical Attenuator(1-20dB) | |
 |
7237012, ZC11FXLLDXX | E2000 UPC Female to E2000 UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237011, ZC11FXKKDXX | E2000 APC Female to E2000 APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237010, ZC12FXJJDXX | MU UPC Female to MU UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237009, ZC11FXIIDXX | MU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237008, ZC11FXHHDXX | FC UPC Female to FC UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237007, ZC11FXGGDXX | FC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |
 |
7237006, ZC11FXFFDXX | ST UPC Female to ST UPC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) |
