Zion Code and Description
Zion Code: ZCM26127X

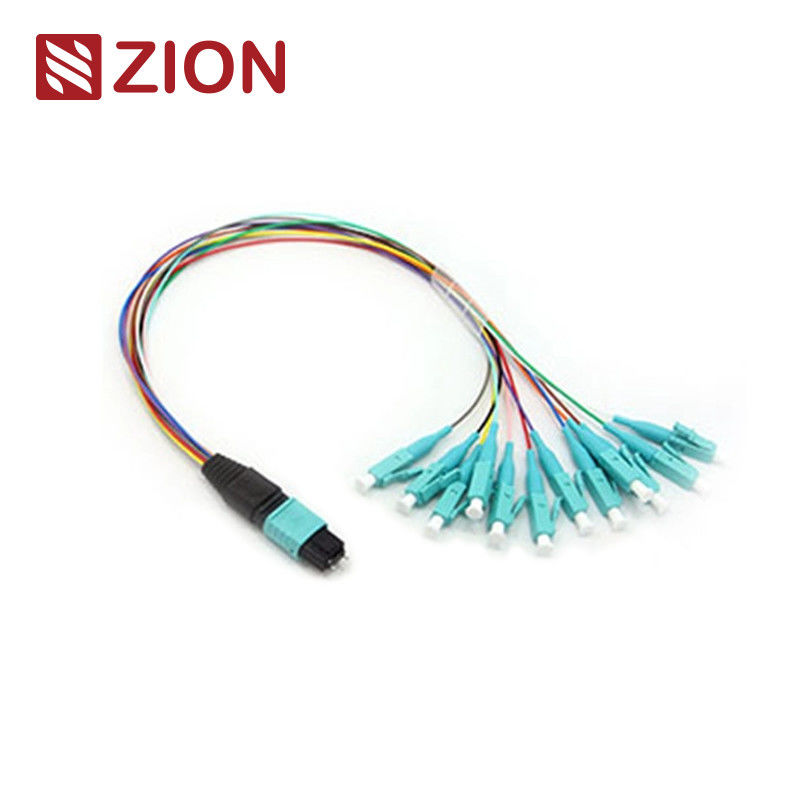

Zion Description: 12F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable
The MTP connector is a type of fiber connecter. MTP (Multi-Fiber Push On) is a multi-core fiber connecter type. The MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.
MTP connector types are distinguished according to the IEC 61754-7 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).
12F MTP– LC/SC/FC/ST Fanout 0.9mm cable is designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MTP adapter panel and MTP trunk.
MTP (male)-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable are designed for MTP-LC LGX module cassettes are terminated with MTP and LC/SC/FC/ST connector on each end. It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Connectors’ Industrial Standard
MTP Singlemode Reference: EIA/TIA-604-5
MTP Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)
MTP Multimode Reference: EIA/TIA-604-5
MTP Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Other connectors’ Industrial Standard
-
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
-
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
-
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
-
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc
-
E2000: IEC61754-15
Available for
- G657A1 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
- G657A2/B2 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
- G657B3 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
- OM1 62.5/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
- OM2 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
- OM3 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
- OM4 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
- OM5 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000
Optical Specifications
Insertion Loss (MTP)(IEC 61300-3-34)Singlemode (APC 8-degree polished): Standard loss:≤0.75dB(max), ≤0.50dB(Typical);Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss(MTP)(IEC 61300-3-34) Multimode (PC Flat polish): Standard loss:≤0.6dB(max), ≤0.50(Typical);Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Single mode (APC 8-degree polished): ≤0.3dB
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Multimode (PC Flat polish): ≤0.3dB
Return Loss (MTP) Singlemode (APC 8-degree polished): ≥60dB(8degree polishing)
Return Loss (MTP) Multimode (PC Flat polish): ≥25dB
Return loss(LC/SC/FC/ST): APC≥60dB; UPC≥50dB
Return loss(LC/SC/FC/ST): ≥35dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500times, IL＜0.5dB
Tensile strength: >70N
Plug -in times:>600
Operating Temperature Singlemode (APC): -40°C to +85°C
Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
The merits of MPO/MTP Patch cable/trunk cable generally include
- High quality—MPO/MTP Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
- Decreasing cable volume—MPO/MTP Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers
- Time saving—With the special plug and play design, MPO/MTP Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
Application
All of OMC’s MTP Connectors are from Senko/Nissin/Sumitomo. MTP- LC/SC/FC/ST Fanout 0.9mm cable is a kind of high density cable assemblies which is generally use in three areas.
- The Data Center application with high dense degree environment
- The optical fiber to the building
- The internal connector application in fiber equipment.
