Detail Information

Material:	CRS Cold Rolled Steel	Enclosure Type:	19" Rack Mountable
Installation:	Standard EIA 19" Rack	Fiber Count:	Max.96 Fibers
Dimensions (HxWxD):	1U481mm251.5mm
Highlight:	1U Rack Mount Fiber Patch Panel , 4 Modules Rack Fiber Patch Panel , 96F Fiber Patch Panel

Product Description

1U FHD MPO&MTP-LC 96F Standard fixed Rack mount patch panel Max-4 modules type

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 0

Products Description

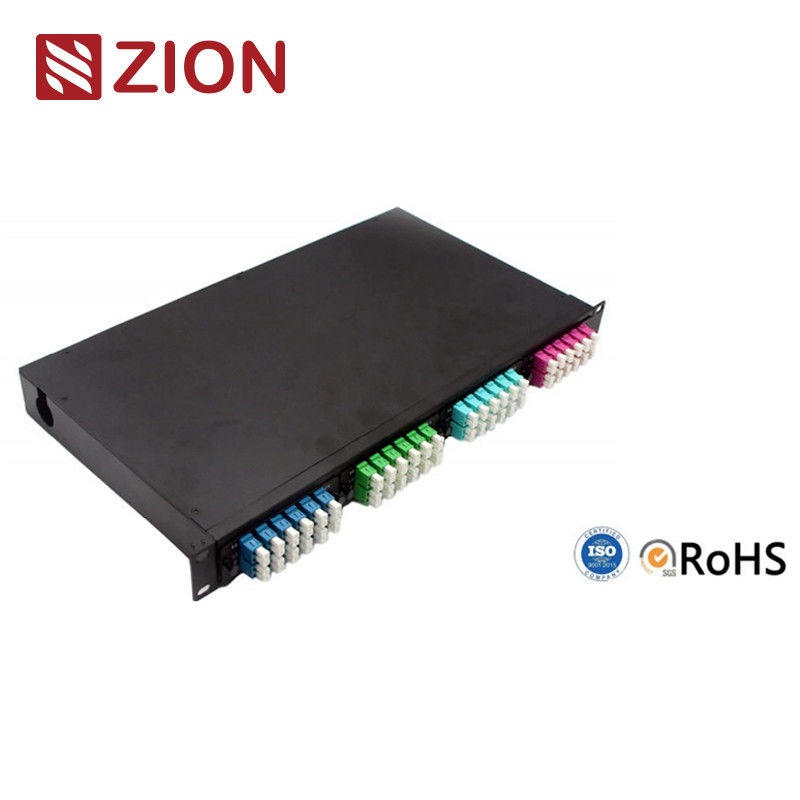

MPO/MTP-LC Patch panel is made of CRS Cold rolled steel,Designed for 19" rack-mount cabinet. Rack mounted. holdsup to 4 pcs Fiber Adapter Panels or 4pcs of HD MTP/MPOLC/SC Cassette. It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter application to maximizing rack space utilization
and minimizing floor space.

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 1

Features

Finishing: powder coated
Fits into 19 inch installations
Fixed&Sliding tray design
Easy to operate and maintain
Fixed type, with PC material front transparent cover, convenient for observation and maintenance.
Made by cold roll steel, electrostatic powder spraying.
Removable Top for Easier Fiber Cable Management
Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS

Products Description

The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve.
MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,3U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components.
MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.

Panel Drawing:

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 2

Matching Cassettes Module and accessories:

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 3

Specification

Product Code: ZCFHD11S17HL1
Material: CRS Cold rolled steel
Enclosure Type: 19" Rack Mountable
Installation: Standard EIA 19" Rack
Compliant: TIA/EIA-568-C.3
Fiber Count: Max.96 Fibers
Dimensions (HxWxD): 1U*481mm*251.5mm
Application: Telecommunication
Place of Origin: ZheJiang, China
Brand: HELLOSIGNAL® OR OEM
Delivery time: Normally 25 days after received the deposit.
MOQ: 50pcs

FHD 1U MPO&MTP-LC Standard fixed Rack mount patch panel 96F Max-4 modules type:

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 4

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 5

Application

Ultra-High density Data center Cabling system and management .
Professional MPO/MTP cabling Solution
UHD Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building
backbones, data centers and enterprise applications.

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 6

Zion Communication's Hot Fiber patch panel

723606 ZCUHD11F37HL: 1U UHD MPO/MTP-LC 144F Full cover Fixed Rack mounted Patch panel-12 cassettes
7236062 ZCUHD12F57HL: 2U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-24 cassettes
7236063 ZCUHD14F78HM1 4U UHD MPO/MTP-LC 576F Full cover Fixed Rack mounted Patch panel-48cassettes
7236064 ZCUHD11F22HA: 1U UHD MPO/MTP-LC 96F Full cover Fixed Rack mounted Patch panel-4 cassettes
7236065 ZCUHD13F52HA: 3U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-12 cassettes
7236066 ZCUHD14F62HA: 4U UHD MPO/MTP-LC 384F Full cover Fixed Rack mounted Patch panel-16 cassettes
7236067 ZCFHD11S17HL: 1U FHD MPO&MTP-LC 72F Slide Rail Rack mount patch panel-Modular design
7236068 ZCFHD11F27HL: 1U FHD MPO&MTP-LC 96F Standard fixed Rack mount patch panel Max-4 modules type

Naming Rules&Order Confirmation Information:

1U FHD MPO MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type 7

	1U UHD MPO/MTP-LC 144F Full cover Fixed Rack mounted Patch panel-12 cassettes (7236061)
	2U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-24 cassettes (7236062)
	4U UHD MPO/MTP-LC 576F Full cover Fixed Rack mounted Patch panel-48cassettes (7236063)
	1U UHD MPO/MTP-LC 96F Full cover Fixed Rack mounted Patch panel-4 cassettes (7236064)
	3U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-12 cassettes (7236065)
	4U UHD MPO/MTP-LC 384F Full cover Fixed Rack mounted Patch panel-16 cassettes (7236066)
	1U FHD MPO&MTP-LC 72F Slide Rail Rack mount patch panel-Modular design (7236067)
	1U FHD MPO&MTP-LC 96F Standard fixed Rack mount patch panel Max-4 modules type(7236068)
