| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Material: | CRS Cold Rolled Steel | Enclosure Type: | 19" Rack Mountable |
|---|---|---|---|
| Installation: | Standard EIA 19" Rack | Fiber Count: | Max.384 Fibers |
| Dimensions (HxWxD): | 482.6mmx426mmx177mm | ||
| Highlight: | 16 Cassettes Rack Fiber Patch Panel,Powder Coated 19 Rack Patch Panel,MPO MTP TO LC Rack Patch Panel |
||
Ultra high density MTP/MPO-LC Patch panel and cassettes address today's requirements for increasingly higher density
levels, are fitted with 12 Fibers and have array adapters on the front side and MTP/MPO at the rear. This cassette is tailor-made
for optimizing cable management, speed deployment, and improving flexibility and manage ability for lower installation costs.
The MPO Fiber Optic Patch Panel is engineered for high-density fiber optic management and connectivity. Constructed from
cold-rolled steel with a frosted painting finish, the panel is robust and visually appealing. The cassette is crafted from lightweight
aluminum, and the adapter plate is made from durable plastic.
The cassette is securely fixed to the panel using a pressing valve, ensuring stability and ease of use. Designed to accommodate
SC, FC, ST, LC, UPC, and APC connectors, this patch panel is available in 1U, 2U, 3U, and 4U configurations, making it suitable
for various installation needs.
MPO/MTP Module Cassettes play a critical role in efficiently managing fiber connections. These cassettes split the 12 or 24 fibers
from an MPO/MTP connector into simplex or duplex standard connectors. Using simplex or duplex patch cords, the module's output
can connect directly to equipment, frames, or client terminals.
Matching Cassettes Module and accessories:
backbones, data centers and enterprise applications.
Description: 1U UHD MPO/MTP-LC 144F Full Cover Fixed Rack Mounted Patch Panel (12 cassettes)
Details: This panel offers 144 fibers and accommodates 12 MPO/MTP-LC cassettes. It is a 1U height, full cover,
fixed rack-mounted patch panel designed for high-density fiber optic management.
Description: 2U UHD MPO/MTP-LC 288F Full Cover Fixed Rack Mounted Patch Panel (24 cassettes)
Details: This 2U high patch panel supports 288 fibers and holds 24 MPO/MTP-LC cassettes, designed for efficient
and high-density fiber distribution in fixed installations.
Description: 4U UHD MPO/MTP-LC 576F Full Cover Fixed Rack Mounted Patch Panel (48 cassettes)
Details: A 4U high panel with a capacity for 576 fibers and 48 MPO/MTP-LC cassettes. This panel is ideal for large-scale
fiber optic networks, offering high fiber density in fixed rack installations.
Description: 1U UHD MPO/MTP-LC 96F Full Cover Fixed Rack Mounted Patch Panel (4 cassettes)
Details: A compact 1U patch panel that holds 96 fibers across 4 MPO/MTP-LC cassettes, suitable for smaller,
high-density fiber installations.
Description: 3U UHD MPO/MTP-LC 288F Full Cover Fixed Rack Mounted Patch Panel (12 cassettes)
Details: This 3U high patch panel offers 288 fibers, distributed across 12 MPO/MTP-LC cassettes, perfect for
medium-density applications requiring full cover protection.

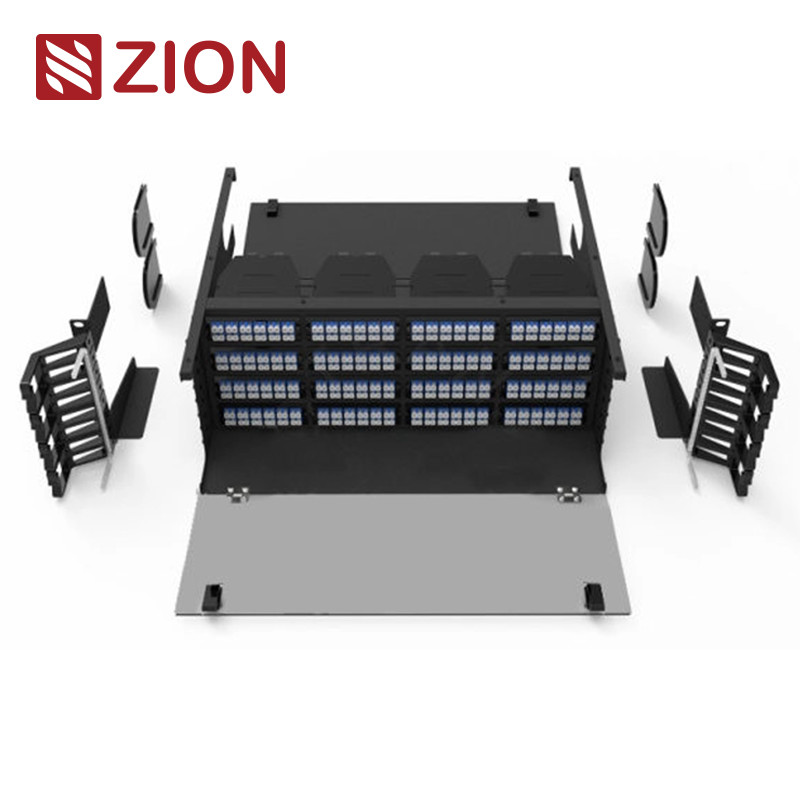

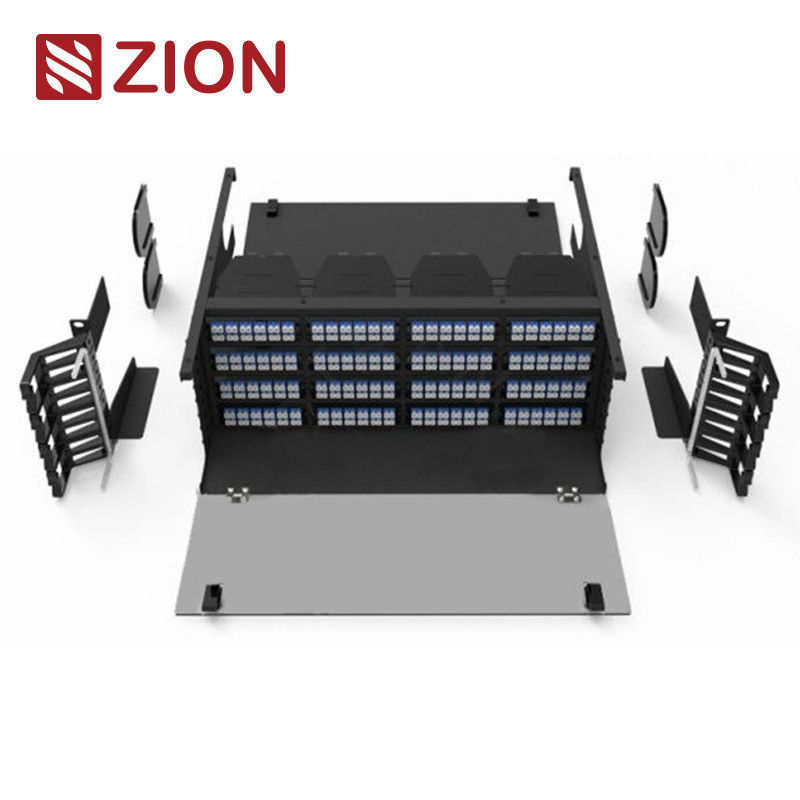

Description: 4U UHD MPO/MTP-LC 384F Full Cover Fixed Rack Mounted Patch Panel (16 cassettes)
Details: A 4U rack-mounted panel with a capacity of 384 fibers and 16 MPO/MTP-LC cassettes, designed for
high-density and scalable fiber optic systems.
Description: 1U FHD MPO&MTP-LC 72F Slide Rail Rack Mount Patch Panel - Modular Design
Details: A flexible 1U rack-mounted slide rail patch panel supporting 72 fibers with modular design, ideal for
dynamic and easy-to-manage fiber configurations.
Description: 1U FHD MPO&MTP-LC 96F Standard Fixed Rack Mount Patch Panel Max-4 Modules Type
Details: A 1U fixed rack mount panel supporting up to 96 fibers and a maximum of 4 modules, providing a simple
and scalable solution for fiber optic patching.
