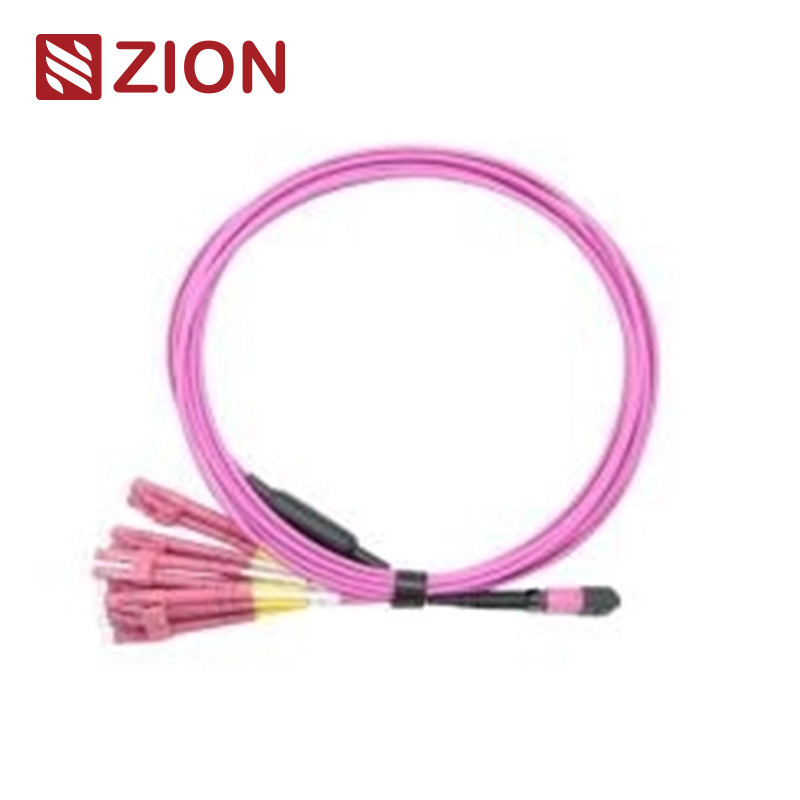

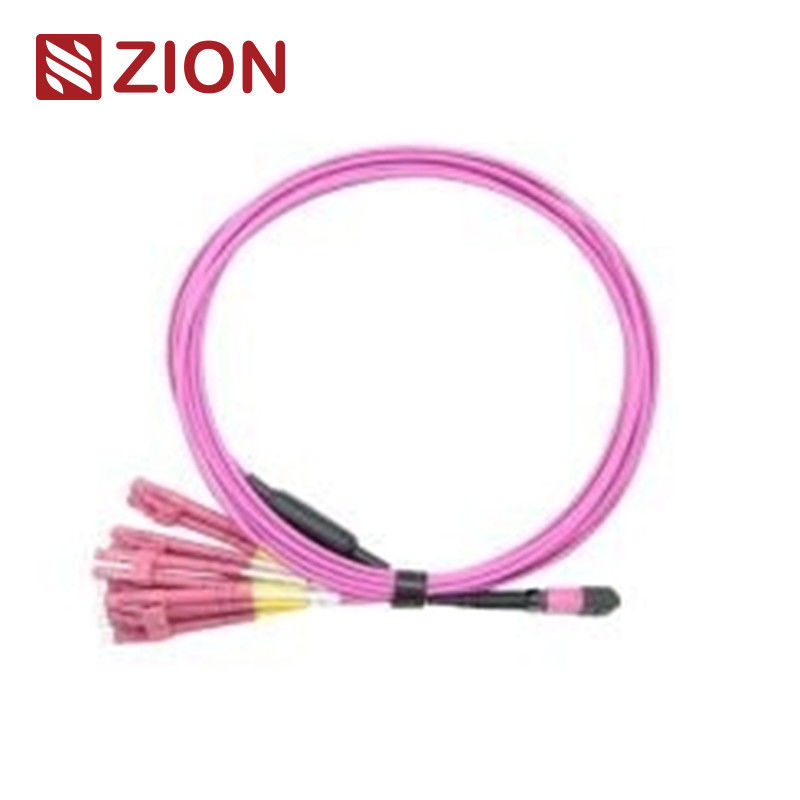

12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
Zion Code and Description
Zion Code: ZCM11A28HAAX
Zion Description: 12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
The MPO connector is a type of fiber connecter. MPO (Multi-Fiber Push On) is a multi-core fiber connecter type. The MPO high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.
MPO connector types are distinguished according to the IEC 61754-7 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).
12 cores MPO to 6 LC Duplex( 6xLC uniboot;12 LC Simplex) Straight harness Cables assemblies.MPO- LC/SC/FC/ST Straight harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. The 12 pcs (6pcs for LC uniboot;12 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
12F MPO- LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity data center. It is optimized for 10/40/100G high-density data center applications.
Connectors’ Industrial Standard
MPO Singlemode Reference: IEC 61754-7
MPO Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO)
MPO Multimode Reference: IEC 61754-7
MPO Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Other connectors’ Industrial Standard
- SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
- LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
- FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
- ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc
- E2000: IEC61754-15
Available for
- G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
- G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
- G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
- OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
- OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
- OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
- OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
- OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
Optical Specifications
Insertion Loss (MPO)(IEC 61300-3-34)Singlemode (APC 8-degree polished): Standard loss:≤0.75dB(max), ≤0.50dB(Typical);Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss(MPO)(IEC 61300-3-34) Multimode (PC Flat polish): Standard loss:≤0.6dB(max), ≤0.50(Typical);Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Single mode (APC 8-degree polished): ≤0.3dB
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Multimode (PC Flat polish): ≤0.3dB
Return Loss (MPO) Singlemode (APC 8-degree polished): ≥60dB(8degree polishing)
Return Loss (MPO) Multimode (PC Flat polish): ≥25dB
Return loss(LC/SC/FC/ST): APC≥60dB; UPC≥50dB
Return loss(LC/SC/FC/ST): ≥35dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500times, IL＜0.5dB
Tensile strength: >70N
Operating Temperature Singlemode (APC): -40°C to +85°C
Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
The merits of MTP/MPO Patch cable/trunk cable generally include
- High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
- Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers
- Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
Application
12F MPO- LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity data center. It is optimized for 10/40/100G high-density data center applications.
All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas.
- The Data Center application with high dense degree environment
- The optical fiber to the building
- The internal connector application in fiber equipment.
Naming Rules&Order Confirmation Information:
Zion Communication's Hot MPO-LC Straight harness Cables
- 7236037 ZCM11A12HIAX: 8F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236038 ZCM11A22HIAX: 12F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236039 ZCM11A52HIAX: 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236040 ZCM11A17HAAX: 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236041 ZCM11A27HAAX: 12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236042 ZCM11A57HAAX: 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236043 ZCM11A18HMAX: 8F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236044 ZCM11A28HMAX: 12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236045 ZCM11A58HMAX: 24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236046 ZCM21A12HIAX: 8F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236047 ZCM21A22HIAX: 12F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236048 ZCM21A52HIAX: 24F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236049 ZCM21A17HAAX: 8F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236050 ZCM21A27HAAX: 12F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236051 ZCM21A57HAAX: 24F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236052 ZCM21A18HMAX: 8F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236053 ZCM21A28HMAX: 12F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
- 7236054 ZCM21A58HMAX: 24F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
Connector Fiber Channel
Three Connection Methods Help Keep the Right MTP/MPO Polarity
MPO –12 x LC Simplex structure-Type 1
MPO –6 x LC Duplex structure-Type 2-Type A
MPO –6 x LC Duplex structure-Type 2-Type B
MPO –Polarity for MPO –6 x Uniboot LC structure-Type 3
Material’s details
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .
Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.
OEM/ODM service for you
- Cable color, printing word, material of cable jacket, connector’s color
- OEM Label, Identify ring, cable’s label,box, shipping marks
- Different quality Level.
