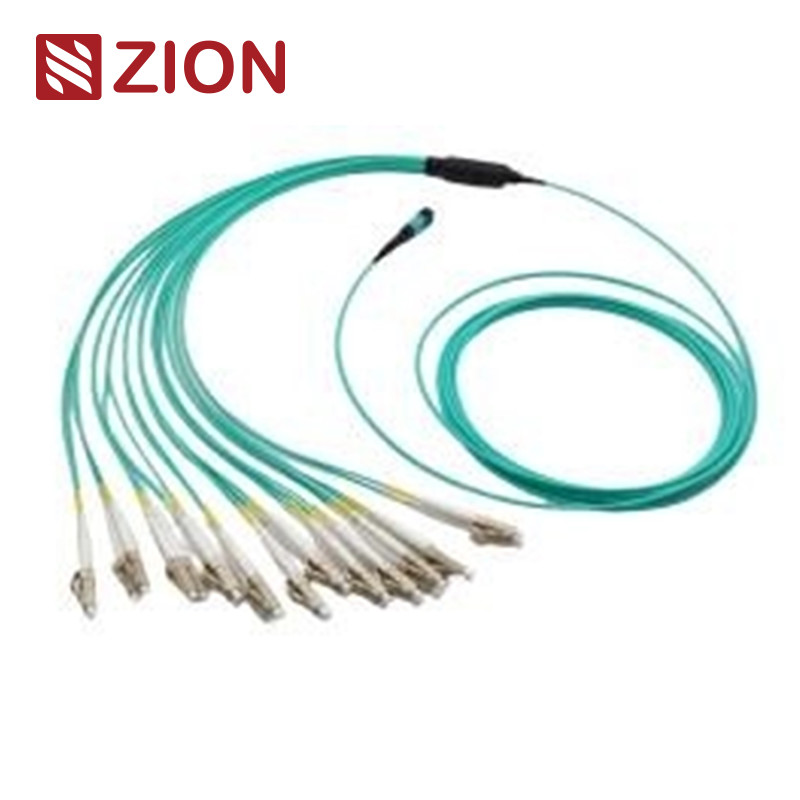

8 Fibers MPO TO LC OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

Zion Code and Description

Zion Code: ZCM11A17HAAX

Description:

The ZCM11A17HAAX is an 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cable, primarily used for high-density data

center applications, optical fiber building connections, and internal connections in optical transceiver equipment such as QSFP+ and 10G

SFP+ LR optics.

Key Features

• MPO (Multi-Fiber Push On) connector: A high-density fiber connector commonly used in data centers and optical networking.
• Fiber Type: 8 fibers MPO to 4xLC uniboot or simplex (4xLC) fanout cables.
• Performance: Optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection, eliminating the need for patch panels or

                                   intermediate trunks.

• Design: Straight harness cables with low insertion loss and high return loss, ensuring high performance and reliability.
• Applications: Ideal for direct connections in data centers, eliminating clutter and improving cable management.
• Standards Compliance:
  • Meets IEC-61754-7, IEC-61755, TIA-604-5 (FOCIS5), and TIA-568-C standards.
  • 10G Fiber Channel and 40G, 100G IEEE 802.3 compliant.
• Connector Specifications:
  • MPO Singlemode (APC) connectors: Green for Standard loss MPO and Yellow for Super low loss MPO.
  • MPO Multimode (PC) connectors: Aqua for OM3 & OM4, Heather Violet for OM3 & OM4 PC.

Connectors’ Industrial Standard

• MPO Singlemode: IEC 61754-7 (SM APC: Green connectors + black boot / SM APC: Yellow connectors + black boot)
• MPO Multimode: IEC 61754-7 (OM1 & OM2 PC: Beige connectors + black boot, OM3 & OM4 PC: Aqua connectors + black boot)
• Other Connectors: SC, LC, FC, ST, and E2000 meet their respective industrial standards (TIA/EIA, FOCIS3, FOCIS10, GR-326, etc.).

Optical Specifications

• Insertion Loss:
  • MPO (Singlemode) standard loss ≤0.75dB, super low loss ≤0.35dB
  • LC/SC/FC/ST ≤0.3dB
• Return Loss:
  • MPO ≥60dB (Singlemode), LC/SC/FC/ST APC ≥60dB, UPC ≥50dB
• Durability:
  • Less than 0.3dB change after 200 matings, with 500 insert-pull cycles.
  • Tensile strength >70N.
• Operating Temperature: -40°C to +85°C

Merits

• High Quality: Factory pre-terminated, tested, and packaged with test reports for quality control.
• Space Saving: Small diameter cables that reduce volume and improve air conditioning efficiency in data centers.
• Time Saving: Plug-and-play design for quick installation without the need for additional patch panels.

Applications

• High-density fiber patching in data centers.
• Direct connections for QSFP+ to SFP+ optics, simplifying and optimizing high-speed network connections.
• Fiber optic connections in buildings and between fiber equipment for internal use.

Naming Rules&Order Confirmation Information:

Zion Communication's Hot MPO-LC Straight harness Cables

• 7236037 ZCM11A12HIAX: 8F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236038 ZCM11A22HIAX: 12F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236039 ZCM11A52HIAX: 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236040 ZCM11A17HAAX: 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236041 ZCM11A27HAAX: 12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236042 ZCM11A57HAAX: 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236043 ZCM11A18HMAX: 8F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236044 ZCM11A28HMAX: 12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236045 ZCM11A58HMAX: 24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236046 ZCM21A12HIAX: 8F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236047 ZCM21A22HIAX: 12F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236048 ZCM21A52HIAX: 24F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236049 ZCM21A17HAAX: 8F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236050 ZCM21A27HAAX: 12F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236051 ZCM21A57HAAX: 24F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236052 ZCM21A18HMAX: 8F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236053 ZCM21A28HMAX: 12F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables
• 7236054 ZCM21A58HMAX: 24F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

                           Connector                                                                            Fiber Channel

Three Connection Methods Help Keep the Right MTP/MPO Polarity

MPO –8 x LC Simplex structure-Type 1

MPO –4 x LC Duplex structure-Type 2

MPO –4 x Uniboot LC structure-Type 3

Material’s details

Packaging

This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .

Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .

Packing can be customized.

OEM/ODM service for you

• Cable color, printing word, material of cable jacket, connector’s color
• OEM Label, Identify ring, cable’s label,box, shipping marks
• Different quality Level.
