Zion Code and Description
Zion Code: ZCM2158HMA1X

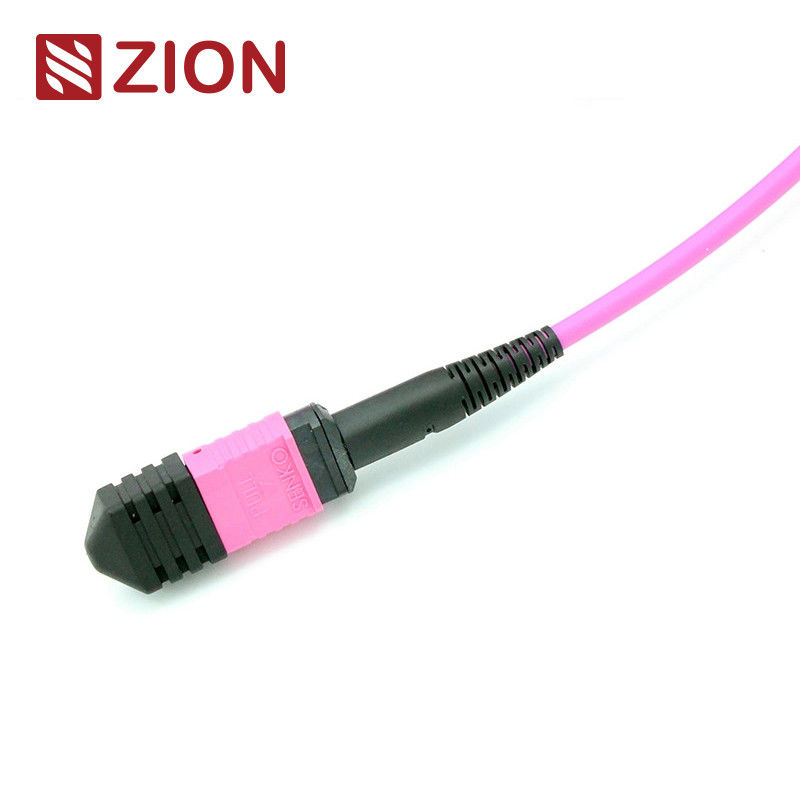

Zion Description: MTP Female To MTP Female OM4 3.0mm LSZH 24 Fibers MTP Trunk Cable Custom Meters
The MTP connector is a type of fiber connecter. MTP (Multi-Fiber Push On) is a multi-core fiber connecter type. The MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.
MTP connector types are distinguished according to the IEC 61754-7 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).
MTP-MTP 3.0mm LSZH Fiber Patch Cord. MTP Fiber Patch Cord cable is terminated with MTP connector on both ends. MTP Fiber Patch Cord connect MTP modules together as a permanent link. The Fiber Patch Cord are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the crossconnect side of the patch panel.
The 12F MTP-MTP Fiber Patch Cord is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.
Connectors’ Industrial Standard
MTP Singlemode Reference: EIA/TIA-604-5
MTP Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)
MTP Multimode Reference: EIA/TIA-604-5
MTP Multimode Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Optical Specifications
Insertion Loss (MTP)(IEC 61300-3-34)Singlemode (APC 8-degree polished): Standard loss:≤0.75dB(max), ≤0.50dB(Typical);Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss(MTP)(IEC 61300-3-34) Multimode (PC Flat polish): Standard loss:≤0.6dB(max), ≤0.50(Typical);Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Single mode (APC 8-degree polished): ≤0.3dB
Insertion loss(LC/SC/FC/ST)(IEC 61300-3-6)Multimode (PC Flat polish): ≤0.3dB
Return Loss (MTP) Singlemode (APC 8-degree polished): ≥60dB(8degree polishing)
Return Loss (MTP) Multimode (PC Flat polish): ≥25dB
Return loss(LC/SC/FC/ST): APC≥60dB; UPC≥50dB
Return loss(LC/SC/FC/ST): ≥35dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500times, IL＜0.5dB
Tensile strength: >70N
Plug -in times:>600
Operating Temperature Singlemode (APC): -40°C to +85°C
Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
Application
All of OMC’s MTP Connectors are from Senko/Nissin/Sumitomo. MTP Patch Cord is a kind of high density cable assemblies which is generally use in three areas.
- The Data Center application with high dense degree environment
- The optical fiber to the building
- The internal connector application in fiber equipment.
To catch up with the increased demand for higher bandwidth, 24-fiber MTP/MTP cable is introduced to facilitate migration to 100G network. It doubles the density of 12-fiber cabling in the same footprint, which reduces the fiber count,allows for fewer cable pathway, and improving airflow. The polarity maintenance of base-24 MTP/MTP cabling, however, is more complicated. OMC recommends the Type A (key-up to key-down) MTP/MTP cable. With our Type Aand Type AF cassette, no need for A-to-A patch cable any more. The connectivity method is illustrated in the following picture
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .
Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.
