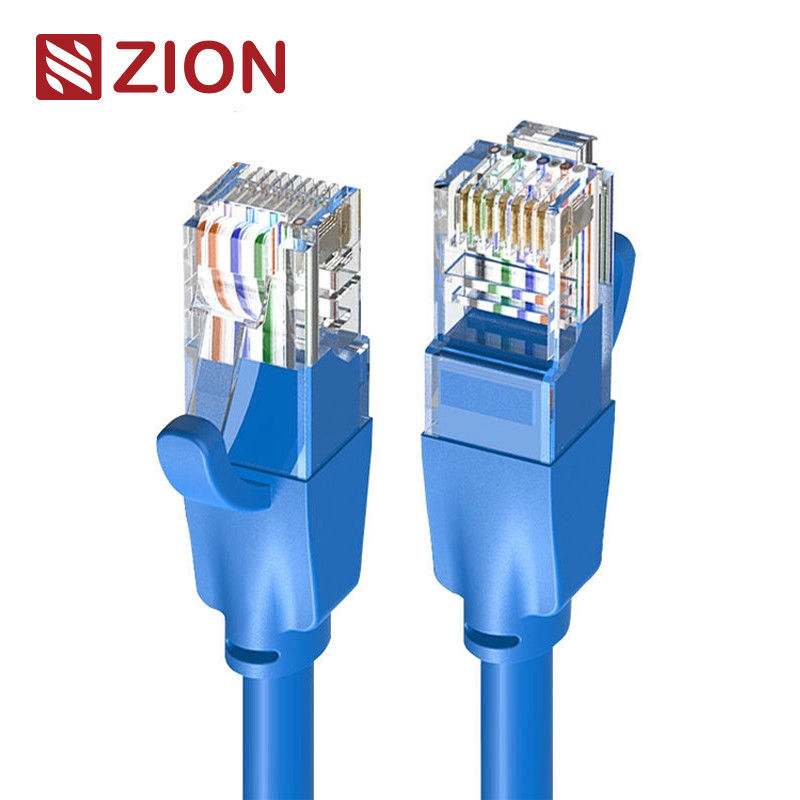

7241010 CAT6A UTP RJ 45 Patch Cord HDPE Insulation

Application:

• Purpose: This cable is used in high-speed networking environments, particularly for data centers and mission-critical setups that are upgrading to 10GBASE-T (10 Gigabit Ethernet).
• Compliance: Meets standards such as ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, and CENELEC EN50173 for Category 6 cabling.
• Tested: 100% tested up to 250 MHz (Category 6 channel).
• Supports: High-speed protocols like 10GBASE-T, IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, HDBase-T, ATM, CATV, and connections between computers, hubs, switches, routers, DSL/cable modems, and patch panels in Gigabit data centers.

Technical Specifications:

• Conductor: Stranded bare copper (for flexibility and better performance).
• Pairs: 4 twisted pairs (standard for Ethernet cables).
• Insulation: High-Density Polyethylene (HDPE), which is durable and ensures signal integrity.
• Insulation Color (according to TIA/EIA 568-B standard):
  • Orange, White/White-Orange
  • Blue, White/White-Blue
  • Green, White/White-Green
  • Brown, White/White-Brown
• Out Jacket: Available in LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride), providing options based on fire safety requirements and flexibility.

Performance Characteristics:

• Frequency Range: 1 - 250 MHz (supports 10GBASE-T up to 55 meters).
• Impedance: 100Ω (standard for Ethernet cables).
• Max. Resistance Unbalance: 0.02% (ensures signal quality).
• Current Rating: 1.5A (provides safe power handling for connected devices).
• Voltage: 72 VDC Max (safe for low-voltage networking equipment).
• Operating Temperature:
  • Minimum: -20°C
  • Maximum: +60°C (suitable for various environments including server rooms).

Connector Details:

• Plug Material: Polycarbonate (durable and strong).
• Connector Type: RJ45 (standard for Ethernet cables).
• Boot Material: LSZH or PVC, with a snagless design to prevent damage during handling.
• Front Connection: Phosphor Bronze with 50µ" Gold over Nickel Plating (provides excellent electrical conductivity and corrosion resistance).
• Blades: Copper alloy, nickel-plated for superior durability and electrical performance.
• Durability: Rated for 750 mating cycles minimum.

Characteristics Overview:

• Version: Cat 6.
• Max Operating Frequency: 250 MHz.
• Shielding Type: U/UTP (Unshielded Twisted Pair).
• Plug Connector: RJ45 (for standard Ethernet networking).
• Used For: Ideal for 10GBASE-T Ethernet connections, including server interconnection, data center connections, and high-speed network infrastructure.
• Additional Notes: The cable is designed for 10GBASE-T use, but it is also backward compatible with slower speeds (1GbE, 100MbE, etc.). The recommended length for optimal 10GBASE-T performance is up to 55 meters.

General Applications:

• This CAT 6 U/UTP RJ45 Patch Cord is highly suitable for modern data centers and high-performance computing environments, as it supports 10Gb Ethernet speeds over relatively short distances (up to 55 meters).
• It is commonly used for network switches, routers, patch panels, and other data center equipment requiring high-speed, reliable connections.

OEM/ODM Customization Options:

• Customized Logo on Plug & Boot:

  • You can have your company logo printed or molded onto the plug and boot of the patch cords. This is ideal for branding and creating a distinctive product.

• Printing on Cable:

  • Custom printing on the cable itself, which can include text, logos, product specifications, or other markings that help with identification, traceability, or marketing.

• Label/PE Bag/Carton Design:

  • ZION Communication provides customized labeling and packaging solutions, such as custom-designed PE bags or cartons, making your products stand out and ensuring proper presentation and protection during shipping.

• Different Colors & Lengths Available:

  • Custom colors for cables and boots are available, allowing you to match your company's color scheme or to differentiate between different types of cables in your inventory.
  • Various length options are available, from standard lengths to specific sizes tailored to your needs. This includes non-standard lengths not typically found in the market, such as 0.5m, 7.5m, or up to 35 meters, depending on the requirements.

• Different Molding/Strain Relief:

  • The molding on the plugs and the strain relief can be customized to ensure durability and prevent wear and tear on the cable. This is especially important for cables exposed to frequent bending or stress in high-use environments.
