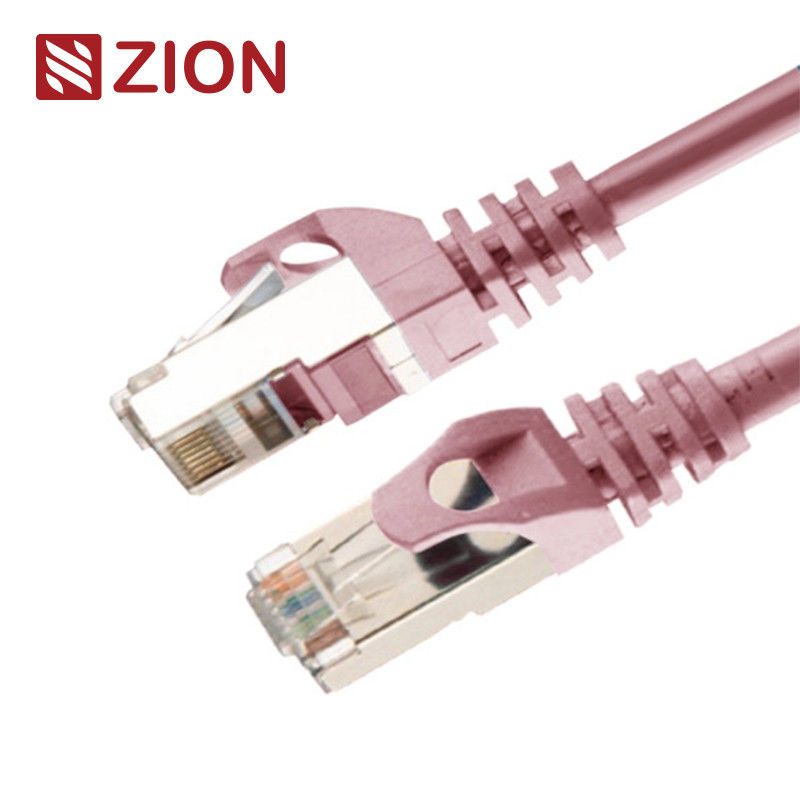

Stranded Bare Copper CAT.5e F/UTP RJ45 Patch Cord 24AWG Ethernet Network Cable, Customized color

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: CAT.5e F/UTP RJ45
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Conductor: Stranded Bare Copper Pairs: 4 Pairs
Lnsulation: HDPE Out Jacket: LSZH OR PVC
Highlight:

7241001 RJ45 Patch Cord

,

CAT.5e RJ45 Patch Cord

,

F/UTP RJ45 Patch Cord


Product Description

7241001 CAT.5e F/UTP RJ45 Patch Cord Patch Cable





Application:

Category 5e cabling systems are essential for data centers and mission-critical environments, enabling high-speed communication and upgrades to 1GBASE-T networks. These cables are designed for protocols such as IEEE 802.3: 10Base-T, 100Base-T,

1000Base-T, HDBase-T A & B, ATM, CATV, and for use in computers, hubs, switches, routers, DSL/cable modems, and patch panels.



Key Features:

  • Compliant to Standards: Conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, and CENELEC EN50173 for Category 5e.
  • Frequency Range: 1-100 MHz, suitable for up to 1GBASE-T (100m lengths).
  • Stranded Copper Conductor: Provides flexibility and better performance for high-speed data transmission.
  • Shielding: F/UTP (Foil-shielded twisted pair) with 100% foil coverage for enhanced noise rejection.
  • Durability: 750 mating cycles for longevity and reliability.
  • Wide Compatibility: Designed for use in Gigabit data centers, servers, and high-performance network setups.



Specification:

  • Conductor: Stranded bare copper
  • Pairs: 4 Pairs
  • Insulation: HDPE
  • Insulation Color: Orange/White-Orange, Blue/White-Blue, Green/White-Green, Brown/White-Brown (Per TIA/EIA 568-B)
  • Shielding: Individual Pair in Al/PET Foil, 100% coverage (Aluminum facing outwards)
  • Outer Jacket: LSZH or PVC
  • Impedance: 100Ω
  • Frequency Range: 1 - 100 MHz
  • Max. Resistance Unbalance: 2%
  • Current Rating: 1.5A
  • Voltage Rating: 72 VDC Max.
  • Operating Temperature: Min. -20°C, Max. +60°C



Connector:

  • Type: RJ45, Polycarbonate plug
  • Boot: LSZH or PVC, snagless design
  • Connection Type: Front connection
  • Plating: Phosphor Bronze with 50u inch Gold over Nickel plating
  • Shielding: Copper Alloy, Nickel-plated
  • Durability: 750 mating cycles minimum



Characteristics:

  • Version: Cat 5e
  • Max Operating Frequency: 100MHz
  • Shielding Type: F/UTP (Foil-shielded twisted pair)
  • Plug Connector: RJ45
  • Applications: 1GBase-T for fast server interconnection, data center connections.

Note:

  • Ideal for mission-critical environments and high-performance networks.
  • Tested for compliance with standards ensuring reliable, high-speed data transfer across networks.






Stranded Bare Copper CAT.5e F/UTP RJ45 Patch Cord 24AWG Ethernet Network Cable, Customized color 0







OEM/ODM Services:

  1. Consult with ZION's Team: Discuss your requirements for custom cables, connectors, packaging, or any other tailored specifications.
  2. Prototype Development: ZION will create a custom prototype for your review, ensuring it meets your exact needs.
  3. Finalize Design: After approval, your product will move into bulk production, with continuous monitoring of quality.
  4. Delivery: Once production is complete, ZION ensures your customized products are delivered on time.



Packing:

Stranded Bare Copper CAT.5e F/UTP RJ45 Patch Cord 24AWG Ethernet Network Cable, Customized color 1
