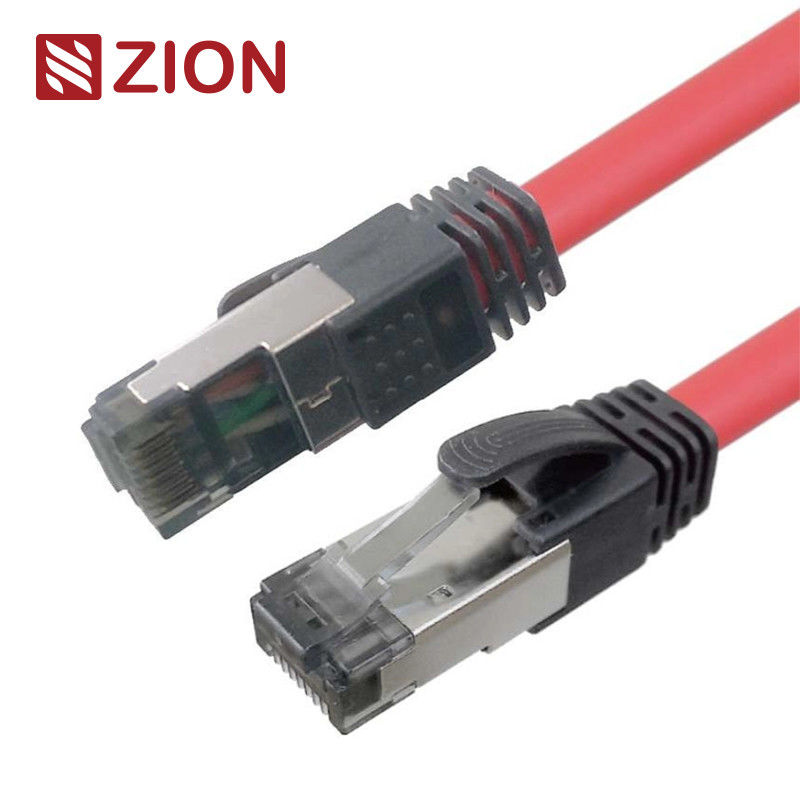

CAT8 S/FTP Snagless RJ45 PE Insulation Patch Cord Ethernet LAN Network cable 2GHz 40Gbps

7241007 CAT.8 S/FTP RJ45 Patch Cord Patch Cable

Application:

• Purpose: These patch cords are intended for high-speed protocols such as:
  • IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T
  • 10GBase-T, 25GBase-T, 40GBase-T
  • HDBase-T, ATM, CATV
  • Connections in data centers, hubs, switches, routers, DSL/cable modems, and patch panels.
• Compliance:
  • Meets standards such as ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, and CENELEC EN50575 for Category 8.
  • Fully tested with FLUKE DSX 8000 to ensure compliance with Cat.8 Channel up to 2000 MHz.

Technical Specifications:

• Conductor:

  • Stranded bare copper for flexibility and reliable signal transmission.

• Pairs:

  • 4 twisted pairs, which provide a balanced signal for high-speed data transfer.

• Insulation:

  • Skin-Foam-Skin PE insulation, a high-performance material that helps maintain signal integrity while reducing noise and interference.

• Insulation Colors:

  • Per TIA/EIA 568-B Standard:
    • Orange, White/White-Orange
    • Blue, White/White-Blue
    • Green, White/White-Green
    • Brown, White/White-Brown

• Individual Shielding:

  • Each pair is shielded with Aluminum/PET Foil, providing 100% coverage to minimize interference and improve signal quality.
  • Aluminum face outwards for additional protection.

• Overall Shielding:

  • TC (Tinned Copper) or Al-Mg (Aluminum-Magnesium) Braiding with coverage of >30% to further reduce EMI (electromagnetic interference).

• Outer Jacket:

  • Available in LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride), depending on fire safety needs and flexibility.

• Frequency Range:

  • 1 - 2000 MHz, supporting 25GBASE-T and 40GBASE-T Ethernet standards.

• Impedance:

  • 100Ω (standard for Ethernet cables).

• Max. Resistance Unbalance:

  • 2% (ensures minimal signal loss).

• Current Rating:

  • 1.5A, allowing for reliable power delivery for networking equipment.

• Voltage:

  • 72 VDC Max, suitable for low-voltage applications in data centers.

• Operating Temperature:

  • Min. -40°C, Max. +65°C. This wide temperature range makes the cable suitable for extreme environments and outdoor use.

Connector Details:

• Plug Material:

  • Polycarbonate, providing high strength and durability.

• Type:

  • RJ45, the standard connector for Ethernet applications.

• Boot:

  • Available in LSZH or PVC, with a snagless design to prevent damage and ensure easy handling.

• Front Connection:

  • Phosphor Bronze with 50μ" Gold over Nickel Plating to ensure excellent conductivity and corrosion resistance.

• Blades:

  • Made from Copper Alloy, Nickel-Plated, for added durability and superior electrical performance.

• Durability:

  • 750 mating cycles minimum, ensuring a long lifespan even with frequent plugging and unplugging.

Characteristics Overview:

• Version: Cat 8.1 (up to 2000 MHz frequency).
• Shielding Type: S/FTP (Shielded Foiled Twisted Pair), providing extra protection against electromagnetic interference (EMI) and crosstalk.
• Plug Connector: RJ45, which is compatible with most Ethernet network equipment.
• Primary Use:
  • Ideal for 25GBASE-T and 40GBASE-T networks (effective for up to 50 meters for 25G and 30 meters for 40G).
  • Perfect for high-speed server interconnection and data center connections.
• Standards:
  • Meets ISO/IEC TR 11801-99-1 for next-generation networking.

Applications and Use Cases:

• High-Speed Networks: The CAT 8 patch cord supports ultra-fast data transmission speeds, making it perfect for 25GBASE-T and 40GBASE-T connections in advanced data centers, enterprise networks, and high-performance computing environments.
• Data Centers: Essential for environments where speed and low latency are critical, such as server-to-server or server-to-switch connections.
• Mission-Critical Networks: In industries requiring minimal downtime and maximum data throughput, like cloud computing, high-frequency trading, and large-scale database management.

Key Advantages of CAT 8 Patch Cord:

• High Performance: Supports 2000 MHz frequency range, allowing for extremely high-speed data transmission, ideal for 25G and 40G Ethernet speeds.
• Superior Shielding: With S/FTP shielding, the cable minimizes crosstalk and electromagnetic interference, ensuring a clean, high-performance signal.
• Durability: The cable is designed for demanding environments, offering high durability and long life with a minimum of 750 mating cycles.
