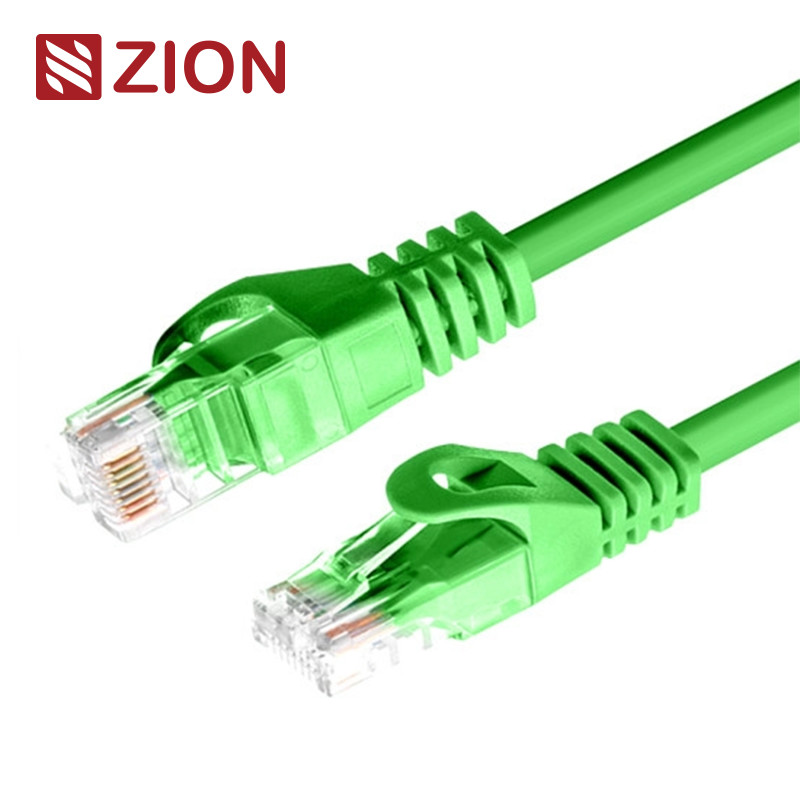

7241002 CAT.5e U/UTP RJ45 Patch Cord HDPE Insulation

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: CAT.5e U/UTP RJ45
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Conductor: Stranded Bare Copper Pairs: 4 Pairs
Lnsulation: HDPE Out Jacket: LSZH OR PVC
Highlight:

U/UTP RJ45 Patch Cord

,

HDPE Insulation Rj45 Cat5e Cable

,

7241002 Cat5e Patch Cable


Product Description

7241002 CAT.5e U/UTP RJ45 Patch Cord Patch Cable

Application:

  • Purpose: Designed for use in high-speed network environments like data centers, supporting up to 1GBASE-T (Gigabit Ethernet).
  • Compliance: Meets various standards such as ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, and CENELEC EN50173 for Category 5e cabling.



Technical Specifications:

  • Conductor: Stranded bare copper.
  • Pairs: 4 twisted pairs.
  • Insulation: High-Density Polyethylene (HDPE).
  • Insulation Colors:
    • Orange/White-Orange
    • Blue/White-Blue
    • Green/White-Green
    • Brown/White-Brown
  • Pair Shielding: Aluminum/PET foil (100% coverage), aluminum face outwards.
  • Outer Jacket: Available in LSZH (Low Smoke Zero Halogen) or PVC.
  • Frequency Range: 1-100 MHz.
  • Impedance: 100Ω.
  • Max. Resistance Unbalance: 2%.
  • Current Rating: 1.5A.
  • Max Voltage: 72 VDC.
  • Operating Temperature: -20°C to +60°C.



Connector Details:

  • Plug Material: Polycarbonate.
  • Type: RJ45.
  • Boot Material: LSZH or PVC (snagless design).
  • Contact Material: Phosphor bronze with 50µ” gold over nickel plating.
  • Shielding: Copper alloy, nickel-plated.
  • Durability: 750 mating cycles minimum.



Performance Characteristics:

  • Category: Cat 5e.
  • Max. Operating Frequency: 100 MHz.
  • Shielding Type: U/UTP (Unshielded Twisted Pair).
  • Primary Usage: Gigabit Ethernet (1GBase-T), ideal for high-speed data transfer in data centers, network devices, routers, and patch panels.
  • Special Notes: Suitable for lengths up to 100 meters.







7241002 CAT.5e U/UTP RJ45 Patch Cord HDPE Insulation 0



OEM/ODM Services:

ZION Communication offers OEM/ODM services, which include:

  • Custom logos on plugs and boots.
  • Printing on cables.
  • Custom labeling on packaging (e.g., PE bags or cartons).
  • Available in different colors and lengths.
  • Custom molding/strain relief options.

7241002 CAT.5e U/UTP RJ45 Patch Cord HDPE Insulation 1

PACKING:
