| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Bus Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Solid Or Stranded Copper Wire | Insulation: | PE |
|---|---|---|---|
| Shield: | BC Braid | Jacket: | See Attached List |
| Color: | Green Or Purple | ||
| Highlight: | industrial ethernet cable,high flex industrial ethernet cable |
||
Solid Or Stranded Copper Wire Interbus Cable With Pet Tape Wrapping Purple Jacket
https://www.zion-communication.com/Industrial-Ethernet-Cable-pl569518.html
| INTERBUS Cable | ||||||
  |
||||||
| ▉ Application | ||||||
| Cable widely used in many industrial field bus system, such as automobile,tobacco,warehouse,papermaking,food&beverage. |
||||||
| ▉ Cable Construction | ||||||
| Conductor: Stranded bare copper wire | ||||||
| Insulation: PE | ||||||
| Shield: BC braid | ||||||
| Jacket: see attached list | ||||||
| Color: Green or purple | ||||||
| ▉ Cable Construction | ||||||
| Oil and grease resistance | ||||||
| Torsion resistance,Easy bending | ||||||
| High braiding coverage,excellent Anti-EMI performance | ||||||
| UV and Abrasion resistance,Anti-hydrolysis | ||||||

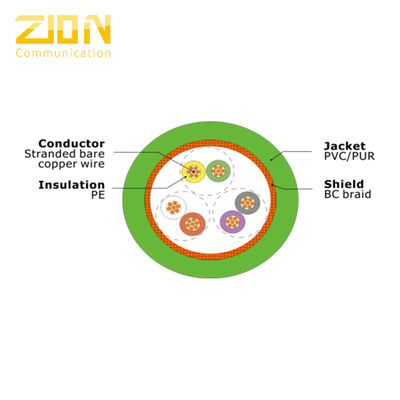

| ▉ Cross Section | ||||||
|
||||||
| ▉ Technical data | ||||||
| Temperature range | .-40℃ to 80℃ | |||||
| Test voltage | 1500V 1min,no breakdown | |||||
| Characteristic impedance | 110±15 Ohm | |||||
| Min bending radius | 10x cable diameter | |||||
| Loop conductor DC resistance at 20℃ | 3P≤159.8 ohm/km 3C≤44 ohm/km | |||||
| ▉ Product List | ||||||
| Item No. | Spec. | Jacket | Nominal OD(mm) |
Copper.weight approx (kg/km) | Weight approx(kg/km) | |
| 7131100 | 3*2*0.25mm² | PVC | 7.5 | 32.5 | 63.5 | |
| 7131101 | 3*2*0.25mm² | PUR | 7.5 | 32.5 | 61 | |
| 7131102 | 3*2*0.25mm²+3*1mm² | PVC | 8.3 | 64 | 94 | |
| 7131103 | 3*2*0.25mm²+3*1mm² | PUR | 8.3 | 64 | 98 | |
| ▉ Order Informations | ||||||
| Marking | HELLOSIGNAL Industrial INTERBUS Cable XXXFT/M | |||||
| Package | 100m/Reel, 300m/Wooden Spool | |||||
| Delivery time | Normally 25 days after received the deposit. | |||||
