| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | CCTV Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT, Plastic / Wooden Spool, Carton |
| Delivery Time: | Normally 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50*20’GP / Month |
| Conductor: | Bare Copper | Insulation: | Solid PE |
|---|---|---|---|
| Shield: | CCA Braiding | Jacket: | PVC |
| Color: | Black, White | Package: | 500FT, 1000FT, Plastic / Wooden Spool, Carton |
| Highlight: | video coaxial cable,hd coaxial cable |
||
Siamese CCTV Coaxial Cable 23 AWG BC 95% BC Braiding + 2 × 0.50 mm2 BC Power
Visit our official website to learn more about CCTV Coaxial Cable
https://www.zion-communication.com/cctv-coaxial-cable-products-catalog.html
Quick Detail:
Description:

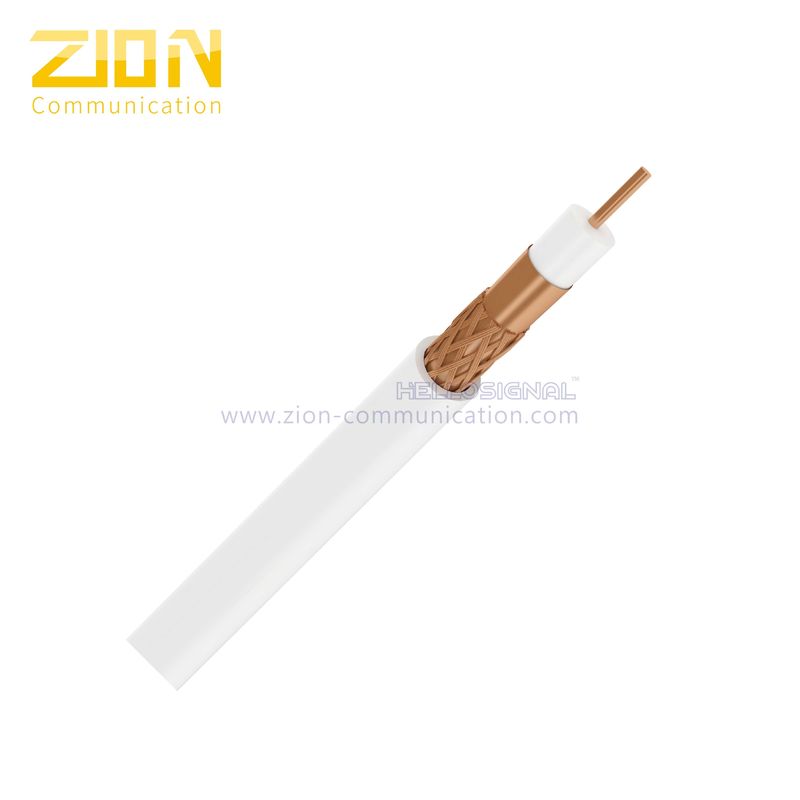

KT0719 RG59 B/U CCTV Coaxial Cable 95% BC Braiding + 2C/0.50mm2 Siamese
RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by Zion communication) is perfect
for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.
Zion communication using best raw material and best worker to produce RG59/U to meet high performance in
practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
Zion communication’S price of RG59/U is not high although our quality is really high.
Applications:
Suitable for signal transmission
■ CCTV
■ Local Area Network
■ Digital video
■ Monitor/VDT display
■ Security Camera
Specifications:
| KT0719 RG59 B/U CCTV Coaxial Cable 95% BC Braiding + 2x0.50mm2 BC Power | ||
| Construction Parameters: | ||
| Inner Conductor | 0.58mm/23AWG | Bare Copper |
| Dielectric | 3.66±0.05mm | Solid PE |
| Shield | Nom. 4.20mm | |
| Strand | 0.12mm/34AWG | Bare Copper |
| % Coverage | 95 nom. | |
| Jacket | 6.00±0.1mm | PVC (Color by your choise) |
| Power Wire Conductor | 16×0.20mm | Bare Copper |
| Power wire Diameter of insulation | 1.90mm | PVC |
| Power Wire Color Code | Red,Black | |
| Jacket | 5.05±0.1mm | PVC (Color by your choise) |
| * 1 Pair of wire twisted | ||
| Application | For Use in Intermediate CCTV | Run Lengths |
| Limited Length | Typical run length up to | 700 feet |
| Electrical Characteristics: | ||
| Capacitance | 67±2 pF/m | |
| Impedance | 75±3 Ω | |
| Inner Conductor Resistance | 65.26 Ohms/KM at 20℃ | |
| Return loss | between 5 and 1000MHz | > 22dB |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 70℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 1 | 0.64 | 1.96 |
| 10 | 1.18 | 3.61 |
| 50 | 2.58 | 7.87 |
| 100 | 3.66 | 11.15 |
| 200 | 5.27 | 16.07 |
| 400 | 7.53 | 22.97 |
| 700 | 10.44 | 31.83 |
| 900 | 11.93 | 36.40 |
| 1000 | 12.89 | 39.30 |
| Order Informations: | ||
| Marking | Zion communication KT0719 RG59 B/U 95% BC+2C-0.50mm2 BC CLASS 5 CE RoHS 70C XXXM MMDDYYYY |
|
| Package | 100M/Wooden Spool,300m/Wooden Spool,Pallet | |
| Delivery time | Normally 20-25 days after received the deposit. | |
| More informations | please contact with us. | |
| Online Service: | ||
| Skype | Zion communication3 | |
| ICQ | 246632889 | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
