| Place of Origin: | China |
|---|---|
| Brand Name: | HELLOSIGNAL |
| Certification: | ISO9001 |
| Model Number: | DisplayPort Cable |
| Minimum Order Quantity: | 100 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Highlight: | 1.2 Version DisplayPort Cable,High-Speed DisplayPort Cable |
||
|---|---|---|---|
Specifications:
Conductor Core: 19+1 Oxygen-Free Copper 5P/5C
Shielding: 128 Aluminum-Magnesium Braided Mesh + Aluminum Foil + Ground Wire
Cable Diameter/OD: 7.3mm (1m–5m), 8.0mm (8m)
Outer Jacket: Eco-friendly Matte PVC Material
Color: Black

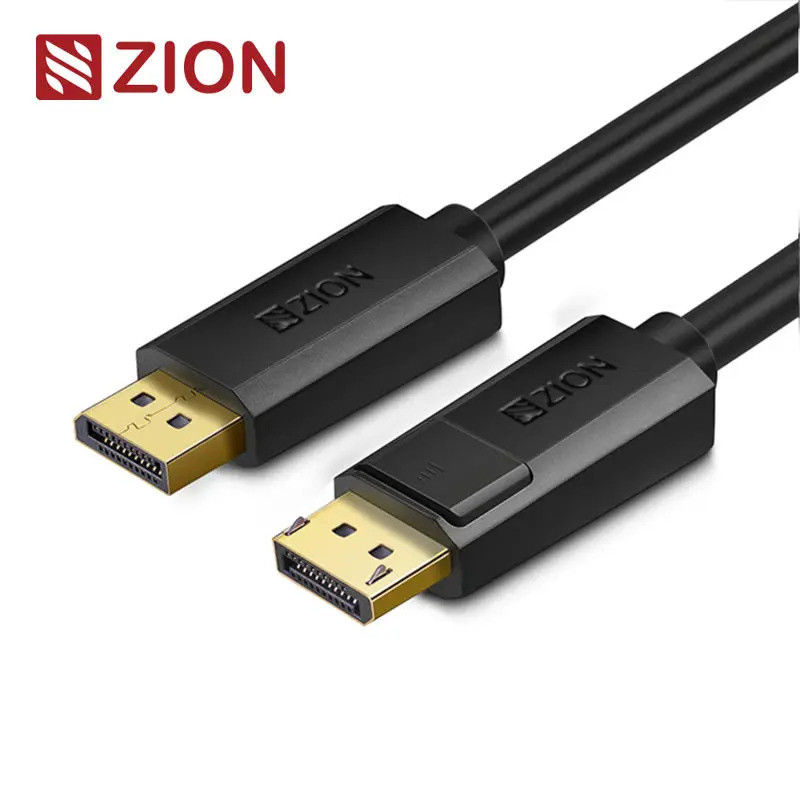

Connector: ABS Housing / Gold-Plated Pins
Packaging: Bag packaging
Description:
Compliant with the VESA DP1.2 standard
Supports up to 4K@60Hz and 2K@144Hz refresh rates for lengths within 5 meters
Supports 1080p@60Hz for 8-meter length
Enables bidirectional transmission with audio-video synchronization
Offers a total bandwidth of 21.3Gbps
Supports 8-bit/192Hz audio quality
Features HDR for improved visual performance
Lengths & SKUs:
1m: DP12-ZC114-1M
1.5m: DP12-ZC114-1.5M
2m: DP12-ZC114-2M
3m: DP12-ZC114-3M
5m: DP12-ZC114-5M
8m: DP12-ZC114-8M
