| Place of Origin: | China |
|---|---|
| Brand Name: | HELLOSIGNAL |
| Certification: | ISO9001 |
| Model Number: | HDMI Extender |
| Minimum Order Quantity: | 100 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| HDMI Version: | HDMI 2.0 | HDMI Input/Output: | 1080p/720p/576p/576i/480p/480i |
|---|---|---|---|
| Video Format: | 1080p/60Hz, 3D | Audio Format: | EDID,Dolby Atmos, DTS, And DSD |
| Operating Temperature Range: | -15℃ To +55℃ | Dimension: | 79×44*23mm |
| Highlight: | Hdmi 2.0 Long Range Extender,60m Long Range Extender Hdmi,Hdmi 2.0 Extension Solution |
||

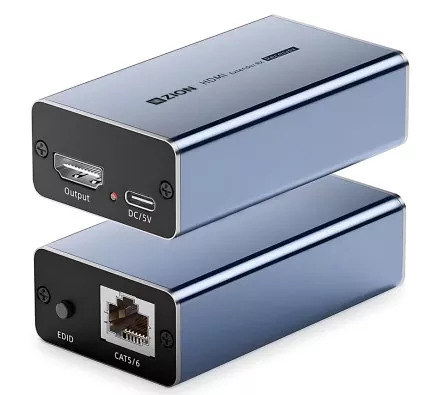

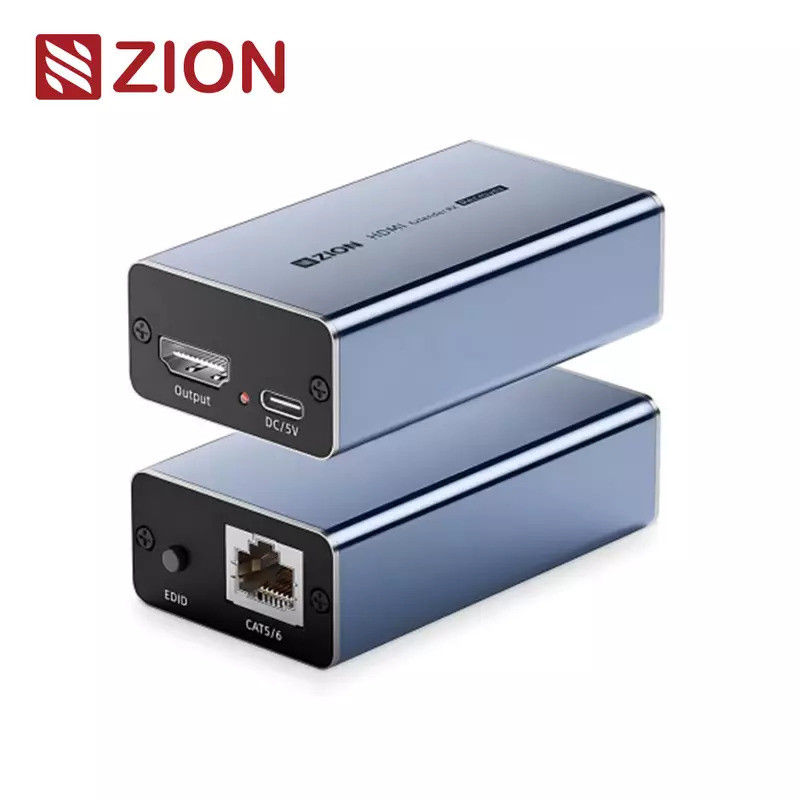

| HDMI Extender via Network Cable (60m Extension) | ||
| Specification | ||
| Model No./SKU | ZCG162 |  |
| Max. Length between Rx & Tx | Up to 60 Meters by CAT 5E/CAT6 | |
| HDMI Version | HDMI 2.0 | |
| HDMI Input/Output | 1080p/720p/576p/576i/480p/480i | |
| Video Format | 1080p/60Hz, 3D | |
| Audio Format | EDID,Dolby Atmos, DTS, and DSD | |
| Input HDMI cable Distance | ≤10m AWG26 HDMI standard cable | |
| Output HDMI cable Distance | ≤10m AWG26 HDMI standard cable | |
| Power Adapter Format | Input:AC (50HZ, 60HZ) 100V-240V Output: DC5V/1A |
|
| Operating Temperature range | -15℃ to +55℃ | |
| Dimension (L x W x H) | 79×44*23mm | |
| Transmitter TX | Desktop/Laptop/Set-top box | |
| Receiver RX | Display/TV/Projector | |
| Physical Interface Diagram | ||
| Feature | Crafted with a single-piece aluminum alloy shell, featuring a sandblasted, oxidized surface for a sleek, durable finish. |
|

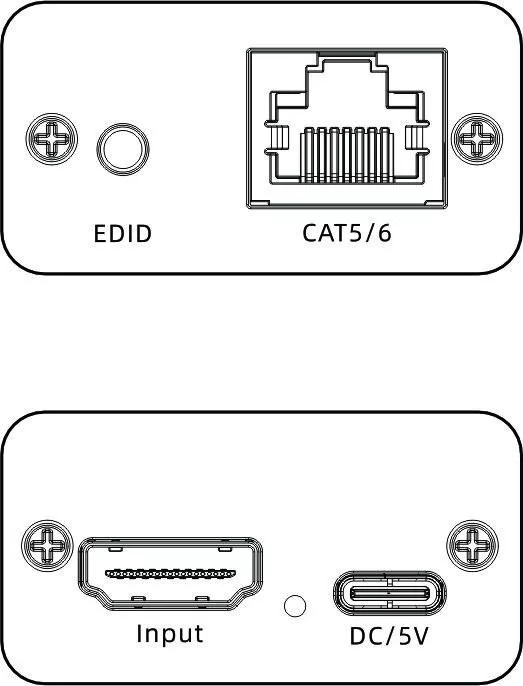

| Tansmitter TX | Port | Description |
|
|
DC/5V | 5V power supply for the Transmitter |
| EDID | Auto-adjusts the display's resolution for optimal compatibility and video quality. |
|
| CAT5E/6 IN | Network cable input port | |
| HDMI IN | HDMI input port | |

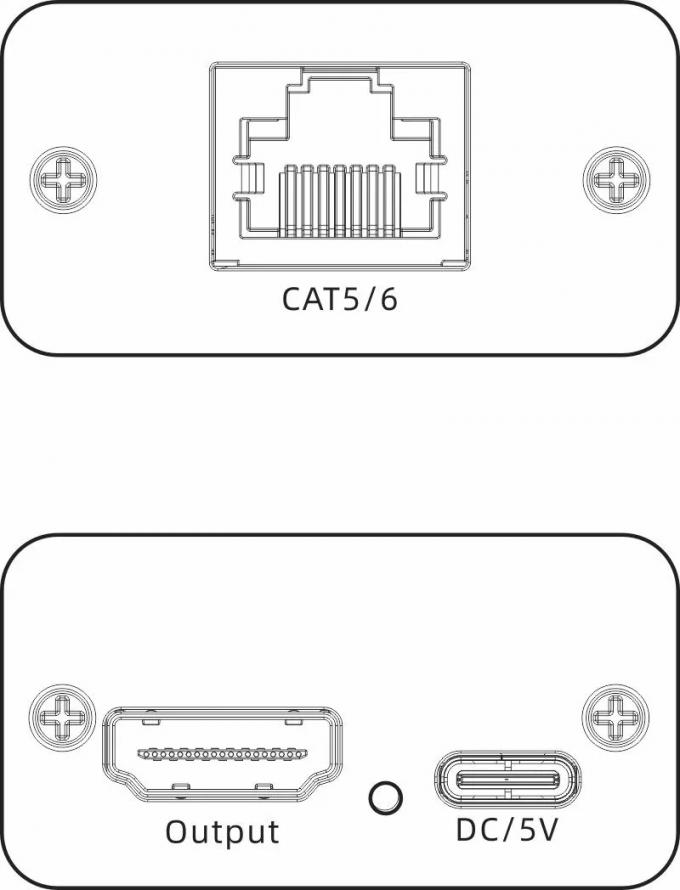

| Receiver RX | Port | Description |
|
|
DC/5V | 5V power supply for the Transmitter |
| CAT5E/6 out | Network cable output port | |
| HDMI out | HDMI output port | |
| DC/5V | Power Port | |
| The Package Includes | ||
| 1 | Transmitter | 1PC |
| 2 | Receiver | 1PC |
| 3 | Type C Cable/5V/1A Power Adapter | 2PCS |
| 4 | User Manual | 1PC |
