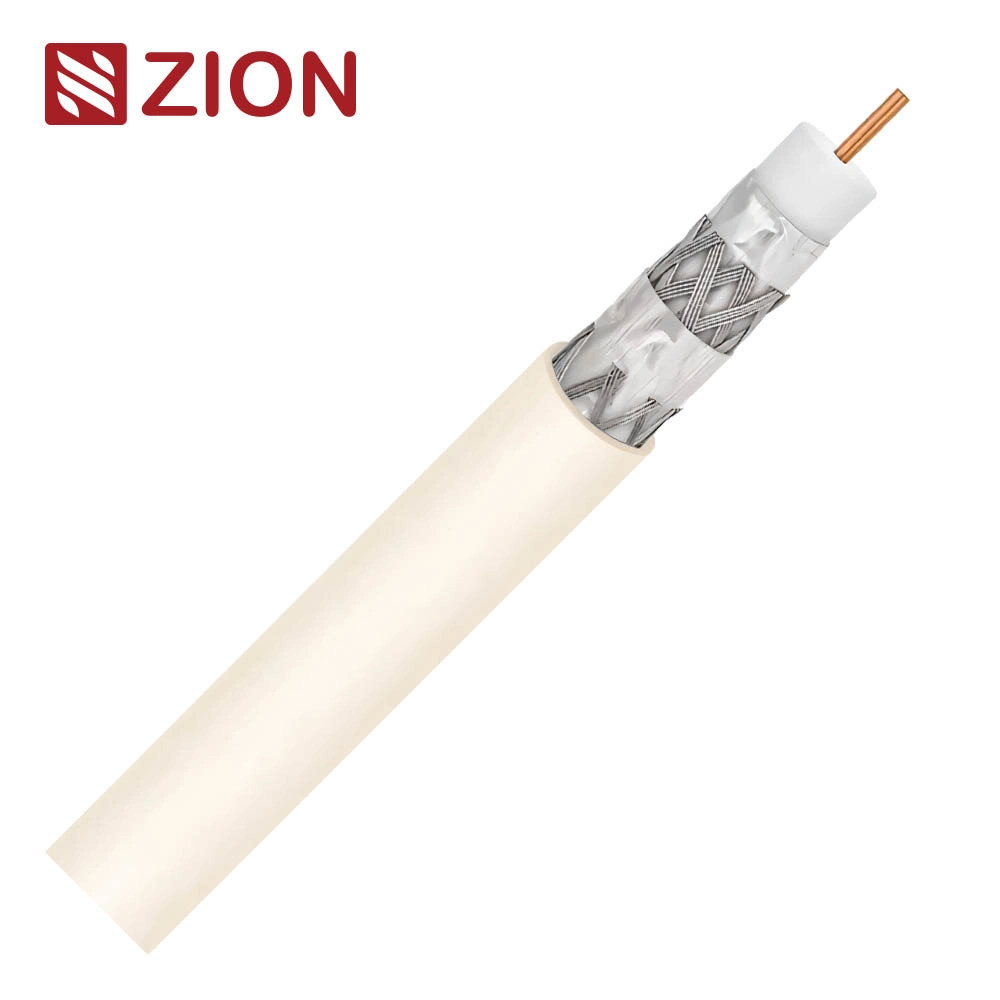

| RG11/U QUAD CMP UL Certificated | ||
| Key Information & Construction Parameters: | ||
| SKU: | 7100246 |  |
| UL Certificate Number: | E541136 | |
| Standards: | UL 444 & CSA C22.2 No.214 Communications Cables |
|
| Inner Conductor Material | Copper Covered Steel (CCS) | |
| Inner Conductor Size | 0.064"/14AWG/1.63±0.016mm | |
| Insulation Material | Skin Foam FEP | |
| Insulation Size | 0.280±0.006"/7.11±0.15mm | |
| Shield 1 | Bonded Aluminum/Poly Tape | |
| Shield 2 | AL_MG braiding 60% Coverage | |
| Shield 3 | Aluminum/Poly/Aluminum Tape | |
| Shield 4 | AL_MG braiding 40% Coverage | |
| Jacket | Material: Plenum PVC | |
| Norminal Thickness: 0.018"(0.46mm) | ||
| OD: 0.380±0.012" (9.65±0.3mm) | ||
| Application | Audio/Video | |
| CATV/CCTV | ||

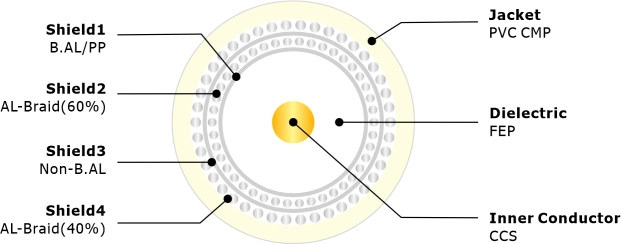

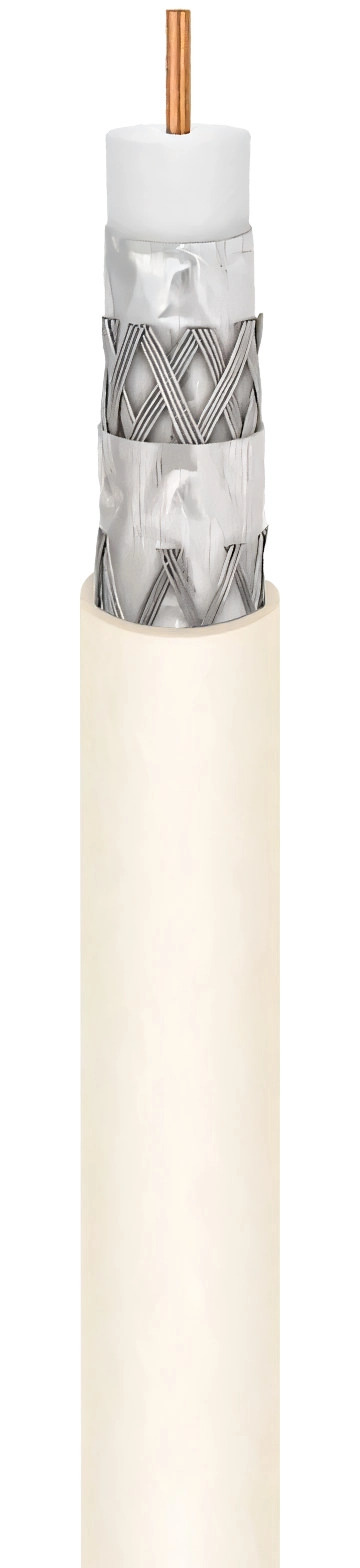

| Cross Section: | ||
|
|
||
| Electrical Characteristics & Physical Properties: | ||
| Inner Conductor Resistance | 36.1 Ω/km | 11.0 Ω/1000 ft. | |
| Capacitance | 52.5 pF/m.Nom | 16 pF/ft.Nom | |
| Impedance | 75 ± 3 Ω | |
| Return loss | 20dB (1 -300MHz) 100% Swept Tested | |
| Velocity of Propagation | 84% Nom. | |
| Sparker Test (VAC) | 2500 V | |
| Cable bend radius | 7 times the cable diameter | |
| Operating Temp Range | -20 to 75 ℃ (-4 to 167℉) | |
| RoHS | Compliant | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 0.25 | 0.82 |
| 10 | 0.80 | 2.62 |
| 50 | 1.20 | 3.93 |
| 100 | 1.70 | 5.57 |
| 200 | 2.50 | 8.20 |
| 400 | 3.60 | 11.80 |
| 700 | 5.10 | 16.72 |
| 900 | 6.00 | 19.67 |
| 1000 | 6.50 | 21.31 |
| 1450 | 8.00 | 26.23 |
| 1800 | 9.10 | 29.84 |
| 2200 | 10.10 | 33.11 |
| 3000 | 12.00 | 39.34 |
| *The above data is for reference only, the actual order test report shall prevail. | ||
| Order Informations: | ||
| Marking | HANGZHOU ZION 7100246 RG11Q 14AWG 75 OHM COAX E541136(UL)C(UL)CMP 75C RoHS COMPLIANT ×××××FT |
|
