| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | RG59 S |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Highlight: | 95% CCA Shield Coaxial Cable,Efficient Signal Transmission Coaxial Cable,UL Certified Coaxial Cable |
||
|---|---|---|---|

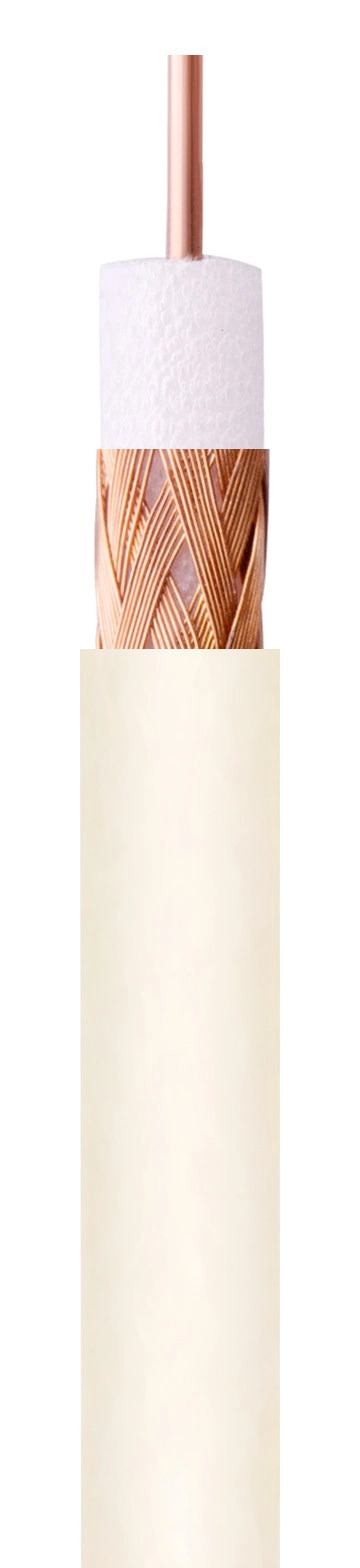

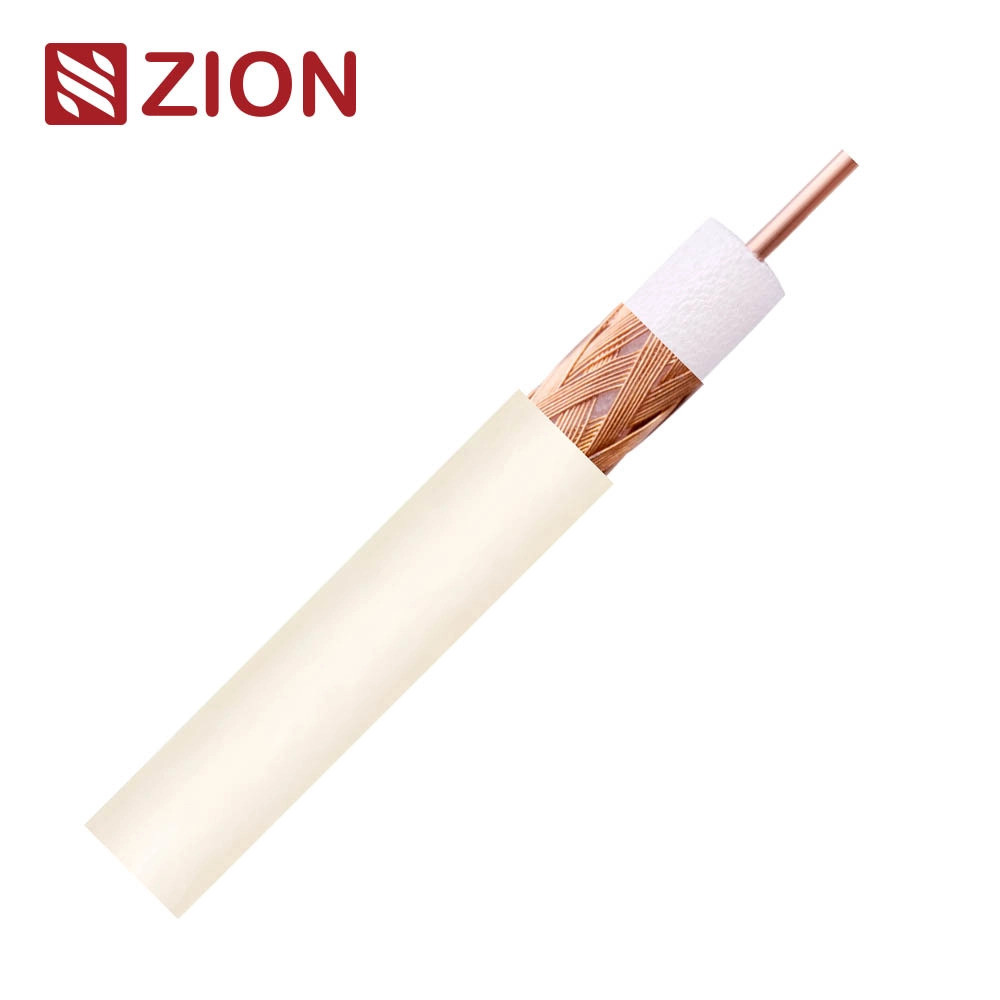

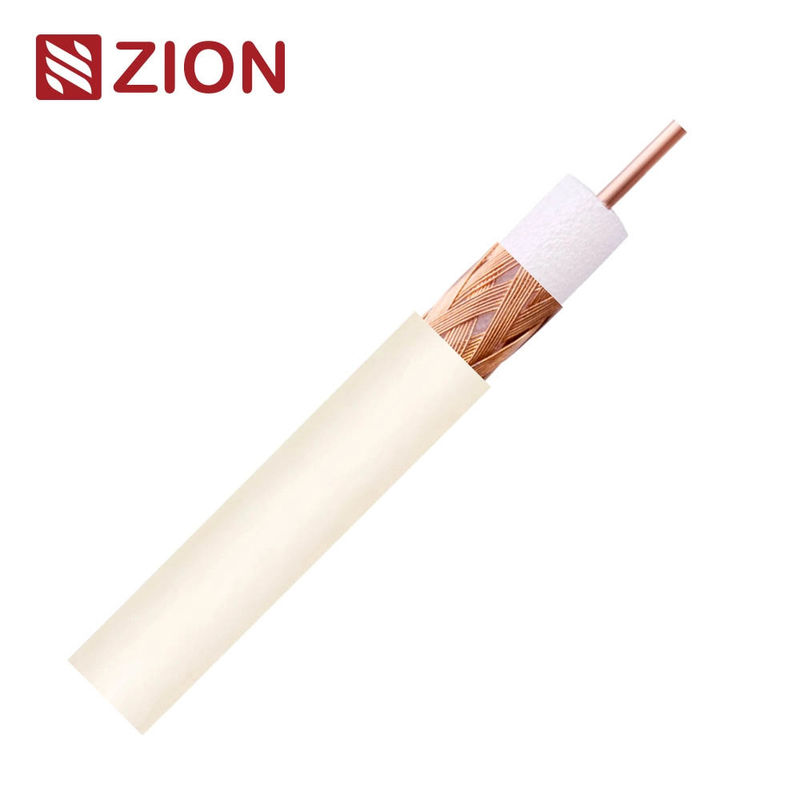

| RG59/U S 95%CCA CMP UL Certificated | ||
| Key Information & Construction Parameters: | ||
| SKU: | 7100112 |  |
| UL Certificate Number: | E541136 | |
| Standards: | UL 444 & CSA C22.2 No.214 Communications Cables |
|
| Inner Conductor Material | Solid Bare Copper (BC) | |
| Inner Conductor Size | 0.032"/20AWG/0.813±0.008mm | |
| Insulation Material | Skin Foam FEP | |
| Insulation Size | 0.134±0.006"/3.40±0.15mm | |
| Shield 1 | Copper Clad Aluminum braiding wire | |
| 95% Coverage | ||
| Nom.Dia: 0.154±0.006” / 3.91±0.15mm | ||
| Jacket | Material: Plenum PVC | |
| Norminal Thickness: 0.018"(0.46mm) | ||
| OD: 0.197±0.008" (5.0±0.2mm) | ||
| Application | Audio/Video | |
| CCTV | ||

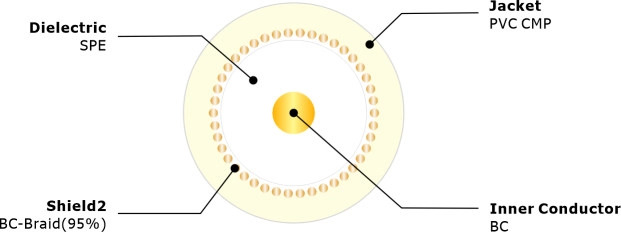

| Cross Section: | ||
|
|
||
| Electrical Characteristics & Physical Properties: | ||
| Inner Conductor Resistance | 34.4 Ω/km | 10.5 Ω/1000 ft. | |
| Capacitance | 52.5 pF/m.Nom | 16 pF/ft.Nom | |
| Impedance | 75 ± 3 Ω | |
| Return loss | 20dB (1 -300MHz) 100% Swept Tested | |
| Velocity of Propagation | 84% Nom. | |
| Sparker Test (VAC) | 2500 V | |
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 to 75 ℃ (-4 to 167℉) | |
| RoHS | Compliant | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 0.30 | 0.98 |
| 10 | 0.97 | 3.18 |
| 50 | 2.40 | 7.87 |
| 100 | 3.40 | 11.15 |
| 200 | 4.85 | 15.90 |
| 400 | 7.00 | 22.95 |
| 700 | 9.50 | 31.15 |
| 900 | 11.10 | 36.39 |
| 1000 | 12.00 | 39.34 |
| *The above data is for reference only, the actual order test report shall prevail. | ||
| Order Informations: | ||
| Marking | HANGZHOU ZION 7100112 RG59 S 95% 20AWG 75 OHM COAX E541136(UL)C(UL)CMP 75C RoHS COMPLIANT ×××××FT |
|
| Package | 1000FT/Pull Box or Wooden Spool (or Per customer's request) | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
| Online Service: | ||
| +86 15088607575 | ||
| +86 15088607575 | ||
| info@zion-communication.com | ||
| OEM Customized Service: | ||
| Color | We can customized Jacket Color based on RAL Classic | |
| Printing | We can customized printing words on jacket | |
| Packing & Label | We can customized spool, carton & label design. | |
