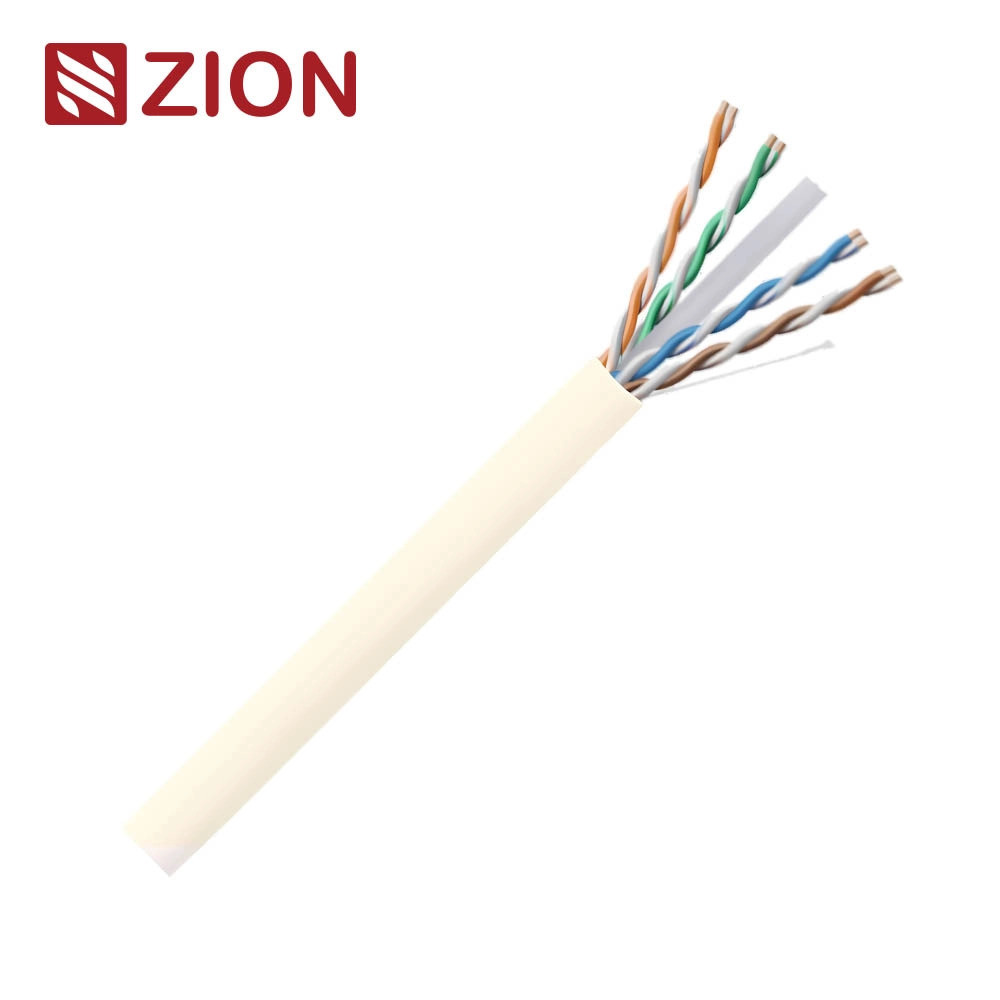

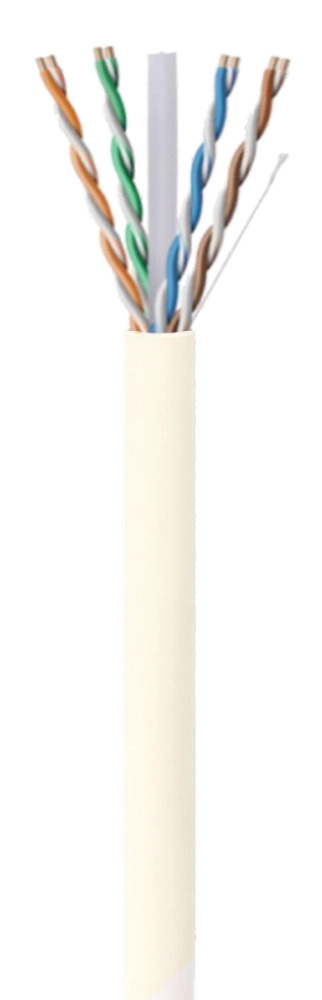

| U/UTP CAT 6A CABLE-UL CMP | ||||||||
| Key Information & Construction | ||||||||
| SKU: 7112305-FC | FEP CROSSWEB |  |
||||||
| SKU: 7112305-LC | LSZH CROSSWEB | |||||||
| UL Certificate Number: | E541136 | |||||||
| Standards: | UL 444 & CSA C22.2 No.214 Communications Cables |
|||||||
| Conductor Material: | Solid Bare Copper | |||||||
| Conductor Size: | 23AWG/ 0.0226" / 0.575±0.005mm | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | 0.0394" / 1.00±0.05 mm FEP | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||||
| Green-White/Green,Brown-White/Brown | ||||||||
| Spline/Cross Separator | FEP or LSZH CROSSWEB | |||||||
| Rip Cord: | Kevlar | |||||||
| Out Jacket: | Material: Plenum PVC | |||||||
| Wall Thickness: 0.0157". Nom(0.4mm) | ||||||||
| OD:0.2421"±0.008“ (6.15±0.2mm) | ||||||||

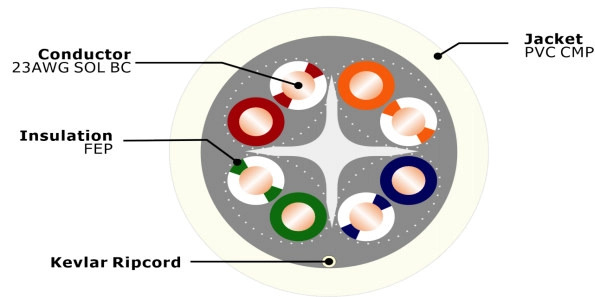

| Cross Section | ||||||||
|
|
||||||||
| Application Support | ||||||||
| · 1000BASE-T , 1000BASE-TX,100BASE-T , 100BASE-TX,100VG-AnyLAN,ATM | ||||||||
| · 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | ||||||||
| Electrical Characteristics | ||||||||
| DC Resistance | ＜9.38 Ohms/100m @20℃ | |||||||
| DC Resistance unbalance | 5% @ 20℃ | |||||||
| Mutual Capacitance | 5.6 nF/100m | |||||||
| Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | |||||||
| 101 - 250 MHz : 100±22 Ohms | ||||||||
| 251 - 500 MHz : 100±25 Ohms | ||||||||
| Max Frequency | 500MHz | |||||||
| Capacitance Unbalance | 330 pF/100m | |||||||
| NVP(传输速率) | ≥ 65% | |||||||
| Delay Skew | ≤ 44ns/100m | |||||||
| Working Voltage | Typically up to 48V | |||||||
| Rated Voltage(V RMS) | 300V | |||||||
| PHYSICAL PROPERTIES | ||||||||
| Pulling Tension(Max) | 25 lbs(110N) | |||||||
| Bend Radius(Min) | 4 Times the cable diameter | |||||||
| Operating Temperature | -20 to 75 ℃ (-4 to 167℉) | |||||||
| Performance Characteristics | ||||||||
| Frequency | Attenuation | NEXT (dB) |
ACRF (dB) |
PS.NEXT (dB) |
PS.ACRF (dB) |
RL (dB) |
Delay (ns/100m) |
Skew (ns/100m) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 2.1 | 74.3 | 67.8 | 72.3 | 64.8 | 20.0 | 570.0 | 45.0 |
| 4 | 3.8 | 65.3 | 55.8 | 63.3 | 52.8 | 23.0 | 552.0 | |
| 8 | 5.3 | 60.8 | 49.7 | 58.8 | 46.7 | 24.5 | 546.7 | |
| 10 | 5.9 | 59.3 | 47.8 | 57.3 | 44.8 | 25.0 | 545.4 | |
| 16 | 7.5 | 56.2 | 43.7 | 54.2 | 40.7 | 25.0 | 543.0 | |
| 20 | 8.4 | 54.8 | 41.8 | 52.8 | 38.8 | 25.0 | 542.0 | |
| 25 | 9.4 | 53.3 | 39.8 | 51.3 | 36.8 | 24.3 | 541.2 | |
| 31.25 | 10.5 | 51.9 | 37.9 | 49.9 | 34.9 | 23.6 | 540.4 | |
| 62.5 | 15.0 | 47.4 | 31.9 | 45.4 | 28.9 | 21.5 | 538.6 | |
| 100 | 19.1 | 44.3 | 27.8 | 42.3 | 24.8 | 20.1 | 537.6 | |
| 200 | 27.6 | 39.8 | 21.8 | 37.8 | 18.8 | 18.0 | 536.5 | |
| 250 | 31.1 | 38.3 | 19.8 | 36.3 | 16.8 | 17.3 | 536.3 | |
| 300 | 34.3 | 37.1 | 18.3 | 35.1 | 15.3 | 16.8 | 536.1 | |
| 400 | 40.1 | 35.3 | 15.8 | 33.3 | 12.8 | 15.9 | 535.8 | |
| 500 | 45.3 | 33.8 | 13.8 | 31.8 | 10.8 | 15.2 | 535.6 | |
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||
| Order Informations | ||||||||
| Marking | HANGZHOU ZION 7112305-×× U/UTP CAT6 4PR 23AWG SOLID 500MHZ E541136 (UL)C(UL) VERIFIED TO ANSI/TIA 568C.2 RoHS COMPLIANT ***FT |
|||||||
| Inner Package | 1000FT/Pull Box or Wooden Spool (or Per customer's request) | |||||||
| Outer Package | Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
| Online Service: | ||||||||
| +86 15088607575 | ||||||||
| +86 15088607575 | ||||||||
| info@zion-communication.com | ||||||||
| OEM Customized Service: | ||||||||
| Color | We can customized Jacket Color based on RAL Classic | |||||||
| Printing | We can customized printing words on jacket | |||||||
| Packing & Label | We can customized spool, carton & label design. | |||||||
