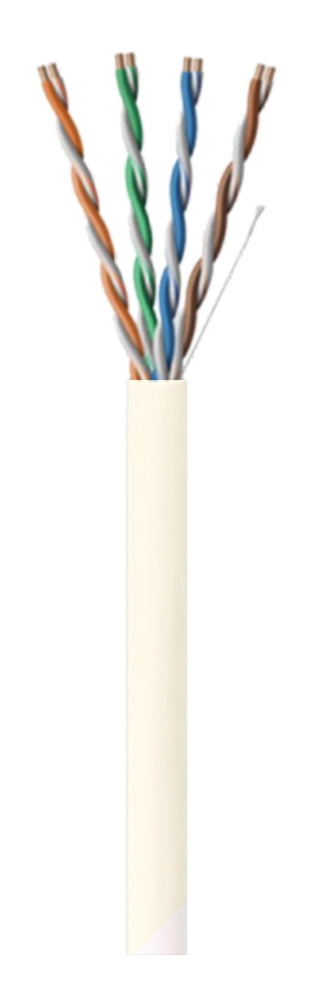

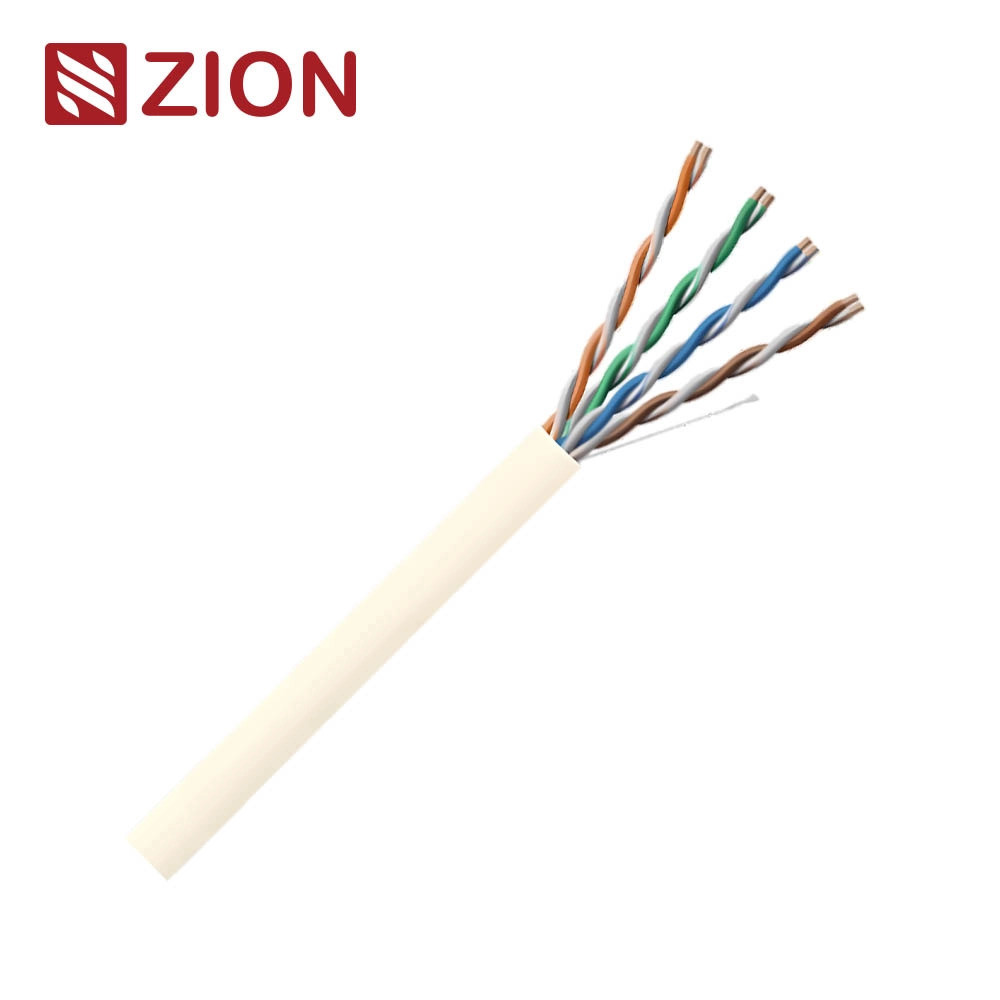

| U/UTP CAT 6 Without Spline-UL CMP | ||||||||
| Key Information & Construction | ||||||||
| SKU: | 7112205NOS |  |
||||||
| UL Certificate Number: | E541136 | |||||||
| Standards: | UL 444 & CSA C22.2 No.214 Communications Cables |
|||||||
| Conductor Material: | Solid Bare Copper | |||||||
| Conductor Size: | 23AWG/ 0.022" / 0.56±0.005mm | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | 0.0385" / 0.98±0.05 mm FEP | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||||
| Green-White/Green,Brown-White/Brown | ||||||||
| Rip Cord: | Kevlar | |||||||
| Out Jacket: | Material: Plenum PVC | |||||||
| Wall Thickness: 0.0157". Nom(0.4mm) | ||||||||
| OD:0.197"±0.008“ (5.00±0.2mm) | ||||||||

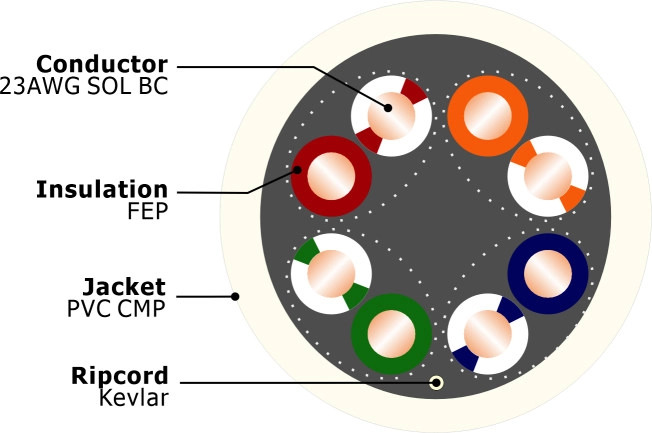

| Cross Section | ||||||||
|
|
||||||||
| Application Support | ||||||||
| · 1000BASE-T , 1000BASE-TX,100BASE-T , 100BASE-TX,100VG-AnyLAN,ATM | ||||||||
| · 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | ||||||||
| Electrical Characteristics | ||||||||
| DC Resistance | ＜9.38 Ohms/100m @20℃ | |||||||
| DC Resistance unbalance | 5% @ 20℃ | |||||||
| Mutual Capacitance | 5.6 nF/100m | |||||||
| Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | |||||||
| 101 - 250 MHz : 100±22 Ohms | ||||||||
| Max Frequency | 250MHz | |||||||
| Capacitance Unbalance | 330 pF/100m | |||||||
| NVP(传输速率) | ≥ 65% | |||||||
| Delay Skew | ≤ 44ns/100m | |||||||
| Working Voltage | Typically up to 48V | |||||||
| Rated Voltage(V RMS) | 300V | |||||||
| PHYSICAL PROPERTIES | ||||||||
| Pulling Tension(Max) | 25 lbs(110N) | |||||||
| Bend Radius(Min) | 4 Times the cable diameter | |||||||
| Operating Temperature | -20 to 75 ℃ (-4 to 167℉) | |||||||
| Performance Characteristics | ||||||||
| Frequency | Attenuation | NEXT (dB) |
ACRF (dB) |
PS.NEXT (dB) |
PS.ACRF (dB) |
RL (dB) |
Delay (ns/100m) |
Skew (ns/100m) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 1.9 | 65.0 | 64.2 | 62.0 | 61.2 | 19.1 | 521.0 | 44.0 |
| 4 | 3.5 | 64.1 | 52.1 | 61.8 | 49.1 | 21.0 | 504.0 | |
| 8 | 5.0 | 59.4 | 46.1 | 57.0 | 43.1 | 21.0 | 500.0 | |
| 10 | 5.5 | 57.8 | 44.2 | 55.5 | 41.2 | 21.0 | 498.0 | |
| 16 | 7.0 | 54.6 | 40.1 | 52.2 | 37.1 | 20.0 | 496.0 | |
| 20 | 7.9 | 53.1 | 38.2 | 50.7 | 35.2 | 19.5 | 495.0 | |
| 25 | 8.9 | 51.5 | 36.2 | 49.1 | 33.2 | 19.0 | 495.0 | |
| 31.25 | 10.0 | 50.0 | 34.3 | 47.5 | 31.3 | 18.5 | 494.0 | |
| 62.5 | 14.4 | 45.1 | 28.3 | 42.7 | 25.3 | 16.0 | 492.0 | |
| 100 | 18.6 | 41.8 | 24.2 | 39.3 | 21.2 | 14.0 | 491.0 | |
| 200 | 27.4 | 36.9 | 18.2 | 34.3 | 15.2 | 11.0 | 490.0 | |
| 250 | 31.1 | 35.3 | 16.2 | 32.7 | 13.2 | 10.0 | 490.0 | |
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||
| Order Informations | ||||||||
| Marking | HANGZHOU ZION 7112205NOS U/UTP CAT6 4PR 23AWG SOLID 250MHZ E541136 (UL)C(UL) VERIFIED TO ANSI/TIA 568C.2 RoHS COMPLIANT ***FT |
|||||||
| Inner Package | 1000FT/Pull Box or Wooden Spool (or Per customer's request) | |||||||
| Outer Package | Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
| Online Service: | ||||||||
| +86 15088607575 | ||||||||
| +86 15088607575 | ||||||||
| info@zion-communication.com | ||||||||
| OEM Customized Service: | ||||||||
| Color | We can customized Jacket Color based on RAL Classic | |||||||
| Printing | We can customized printing words on jacket | |||||||
| Packing & Label | We can customized spool, carton & label design. | |||||||
