| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | RG59 Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 22 AWG BC | Insulation: | Solid PE |
|---|---|---|---|
| Shield: | Bare Copper Braid Wire 95% Coverage | Jacket: | PVC CM |
| Color: | Black, White | Package: | 305M, 1000FT, Wooden Reel, Carton |
|

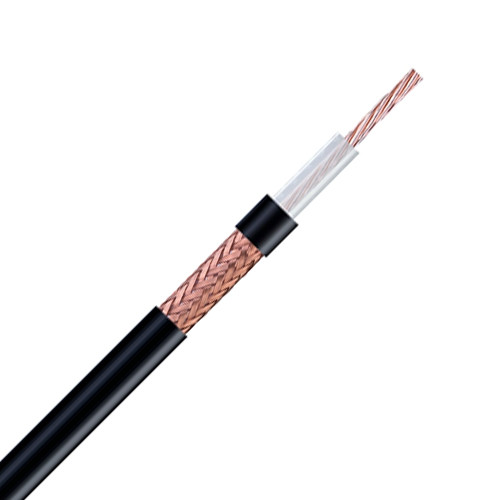

RG59 ST BC 85% CCA PVC 75 Ohm CCTV coaxial Cable NO.7100173 |
||||
| Construction Parameters: | ||||
| Inner Conductor | 0.025"/0.64mm/22 AWG BC | |||
| Dielectric | 0.148"/3.7±0.05mm Solid PE | |||
| Shield | 0.12mm/34AWG Copper Clad Aluminum(85%) | |||
| Jacket | 0.230"/6.00±0.1mm PVC | |||
| Application | For Use in Longer CCTV Run Lengths | |||
| Electrical Characteristics: | ||||
| Inner Conductor Resistance | 54 Ohms/KM at 20℃ | |||
| Capacitance | 67±2 pF/m | |||
| Impedance | 75 ± 3 Ω | |||
| Return loss | between 5 and 1000MHz: > 22dB | |||
| Velocity of Propagation | 0.66 | |||
| Sparker Test (VAC) | 3 | |||
| Mechanical and Envrionmental Properties | ||||
| Cable bend radius | 10 times the cable diameter | |||
| Operating Temp Range | -20 ℃ to 65℃ | |||
| Cable diamensions | 0.230"/6.00±0.1mm PVC | |||
| Cross Section | ||||
 |
||||
| Attenuation(20℃): | ||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
| 5 | 0.87 | 2.70 | ||
| 50 | 2.90 | 9.00 | ||
| 100 | 4.15 | 12.87 | ||
| 200 | 5.98 | 18.54 | ||
| 550 | 10.32 | 31.98 | ||
| 750 | 12.20 | 37.81 | ||
| 865 | 13.27 | 41.15 | ||
| 1000 | 14.40 | 44.65 | ||
| Order Informations: | ||||
| Marking | HELLOSIGNAL RG59 ST BC 85% CCA PVC CCTV COAXIAL CABLE 7100173 ×××M/FT | |||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
