| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | Cabo |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 8×0.13±0.1mm Bare Copper | Dielectric: | 2.40±0.05mm Yellow Solid PE |
|---|---|---|---|
| Shield: | 0.14mm CCA Braid Wire 80% Coverage | Jacket: | 4.00±0.1mm PVC |
|

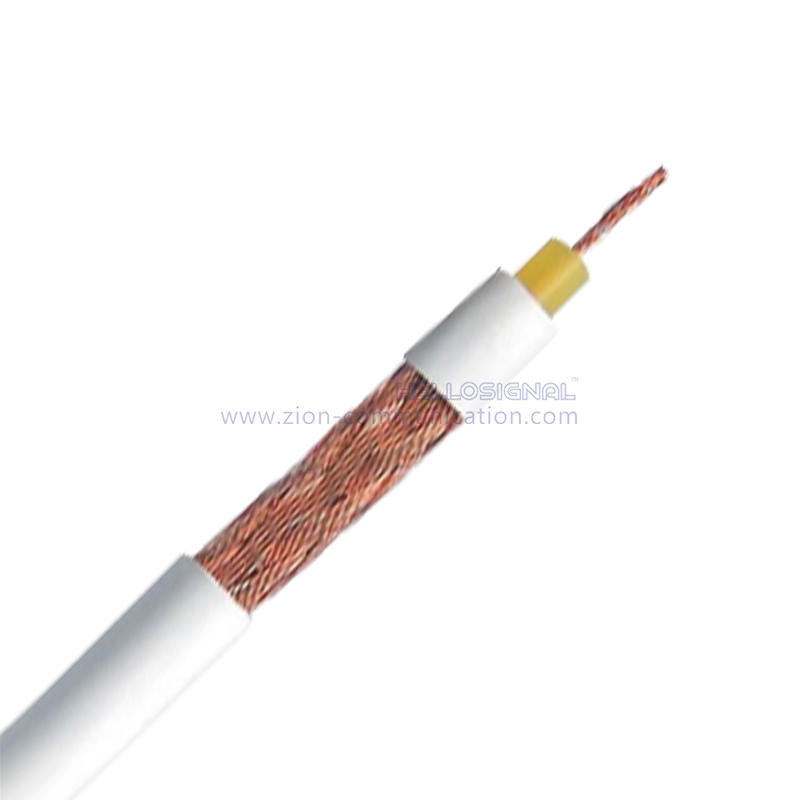

75 Ohm CATV coaxial Cable NO.7100521 |
||||
| Construction Parameters: | ||||
| Inner Conductor | 8×0.13±0.1mm Bare Copper | |||
| Dielectric | 2.40±0.05mm Yellow Solid PE | |||
| Shield | 0.14mm CCA braid wire 80% coverage | |||
| Jacket | 4.00±0.1mm PVC | |||
| Application | For Use in Longer CATV Run Lengths | |||
| Electrical Characteristics: | ||||
| Inner Conductor Resistance | ||||
| Capacitance | NA | |||
| Impedance | NA | |||
| Return loss | NA | |||
| Velocity of Propagation | NA | |||
| Sparker Test (VAC) | 3 | |||
| Operating Temp Range (PVC) | -20 ℃ to 60℃ | |||
| RoHS | YES | |||
| Cross Section | ||||
|
||||
| Attenuation(20℃): | ||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
| 1 | ||||
| 10 | ||||
| 50 | ||||
| 100 | ||||
| 200 | ||||
| 400 | ||||
| 700 | ||||
| 900 | ||||
| 1000 | ||||
| Order Informations: | ||||
| Marking |
HELLOSIGNAL Cabo Trancado 4-80 CATV COAXIAL CABLE 7100521 ×××M/FT |
|||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
