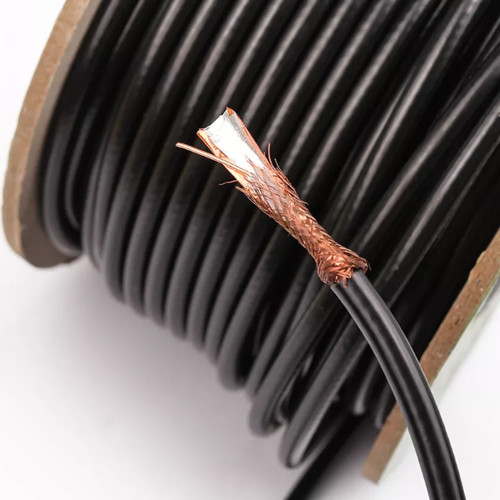

| Model Number: | RG59 Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 20 AWG BC | Insulation: | Foamed PE |
|---|---|---|---|
| Shield: | Bare Copper Braid Wire 95% Coverage | Jacket: | PVC CM |
| Color: | Black, White | Package: | 305M, 1000FT, Wooden Reel, Carton |
| RG59 BC 95% CCA PVC CM 75 Ohm CCTV coaxial Cable NO.7100164 |
|||||||
| Similar Type: | |||||||
| Catalog No. |
Cond.Type &Nom.D.C.R |
Shielding | Shielding& %Coverage |
Jacket Type | Nom. Capacitance | Nom.Imp.Ω | |
| RG59 BC 95% BC PVC CM NO.7100161 |
20AWG(SOL)BC 33.4Ω/km |
Foamed PE |
BC-Braid 95% | PVC CM | 52±3pF/m | 75±3Ω | |
| RG59 BC 95% BC PVC CMR NO.7100162 |
20AWG(SOL)BC 33.4Ω/km |
Foamed PE |
BC-Braid 95% | PVC CMR | 52±3pF/m | 75±3Ω | |
| RG59 BC 95% BC PVC CMP NO.7100163 |
20AWG(SOL)BC 33.4Ω/km |
Foamed PE |
BC-Braid 95% | PVC CMP | 52±3pF/m | 75±3Ω | |
| RG59 BC 95% CCA PVC CM NO.7100164 |
20AWG(SOL)BC 33.4Ω/km |
Foamed PE |
CCA-Braid 95% | PVC CM | 52±3pF/m | 75±3Ω | |
| RG59 BC 95% CCA PVC CMR NO.7100165 |
20AWG(SOL)BC 33.4Ω/km |
Foamed PE |
CCA-Braid 95% | PVC CMR | 52±3pF/m | 75±3Ω | |
| Construction Parameters: | |||||||
| Inner Conductor | 0.032"/0.81mm/20 AWG BC | ||||||
| Dielectric | 0.144"/3.66mm Foamed PE | ||||||
| Shield | 0.12mm CCA braid wire 95% coverage | ||||||
| Jacket | 0.238"±0.006"/6.05±0.15mm PVC CM | ||||||
| Jacket Thickness | 0.032"/0.81mm | ||||||
| Application | For Use in Longer CCTV Run Lengths | ||||||
| Electrical Characteristics: | |||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 21.2 Ω/km (6.96 Ω/kft) | ||||||
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | ||||||
| Impedance | 75 ± 3 Ω | ||||||
| Return loss | between 5 and 1000MHz: > 22dB | ||||||
| Velocity of Propagation | 0.85 | ||||||
| Sparker Test (VAC) | 4 | ||||||
| Mechanical and Envrionmental Properties | |||||||
| Cable bend radius | 10 times the cable diameter | ||||||
| Operating Temp Range | -20 ℃ to 60℃ | ||||||
| Cable diamensions | 0.238"±0.006"/6.05±0.15mm PVC CM | ||||||
| Cross Section | |||||||
 |
|||||||
| Attenuation(20℃): | |||||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |||||
| 5 | 0.86 | 2.82 | |||||
| 55 | 2.05 | 6.73 | |||||
| 83 | 2.45 | 8.04 | |||||
| 187 | 3.60 | 11.81 | |||||
| 211 | 3.80 | 12.47 | |||||
| 250 | 4.10 | 13.45 | |||||
| 300 | 4.45 | 14.60 | |||||
| 350 | 4.80 | 15.75 | |||||
| 400 | 5.10 | 16.73 | |||||
| 450 | 5.40 | 17.72 | |||||
| 500 | 5.70 | 18.70 | |||||
| 550 | 5.95 | 19.52 | |||||
| 600 | 6.20 | 20.34 | |||||
| 750 | 6.97 | 22.87 | |||||
| 865 | 7.52 | 24.67 | |||||
| 1000 | 8.12 | 26.64 | |||||
| Order Informations: | |||||||
| Marking | HELLOSIGNAL RG59 BC 95% CCA PVC CM CCTV COAXIAL CABLE 7100164 ×××M/FT |
||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||
| Brand | HELLOSIGNAL®OR OEM | ||||||
