| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 20AWG CCS | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield: | AL-Braid(40%) | Power Wire Conductor: | CCA |
| Power Wire Diameter Of Insulation: | HDPE(Red,Black,Blue) | Jacket: | PVC |
| Highlight: | Rg59 Cctv Cable With Power,OEM Rg59 Coaxial Cable With Power,AWG Cctv Cable Rg59 With Power |
||
|

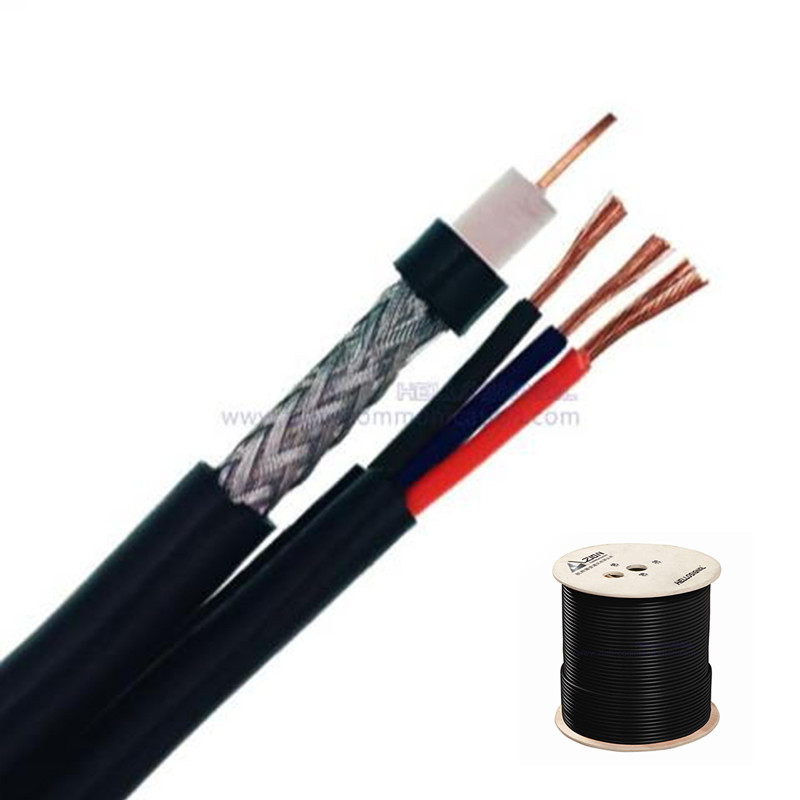

RG59 67% + 3X26 AWG 75 Ohm CCTV coaxial Cable NO.7102104 |

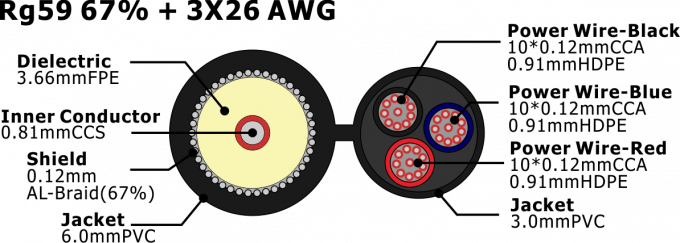

||
| Construction Parameters: | ||
| Inner Conductor | 0.032"/0.81mm/20AWG CCS | |
| Dielectric | 0.144"/3.66±0.05mm Foamed Polyethylene | |
| Shield | 0.12mmAL-Braid(67%) | |
| Jacket | 6.0mmPVC | |
| Power Wire Conductor | 3x(10*0.12mmCCA ) | |
| Power wire Diameter of insulation | 0.91HDPE(Red,Black,Blue) | |
| Jacket | 3.0mmPVC | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 139.5 Ω/km 42.55Ω/1000ft |
|
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 6.0×3.0mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.86 | 2.82 |
| 55 | 2.05 | 6.73 |
| 83 | 2.45 | 8.04 |
| 187 | 3.60 | 11.81 |
| 211 | 3.80 | 12.47 |
| 250 | 4.10 | 13.45 |
| 300 | 4.45 | 14.60 |
| 350 | 4.80 | 15.75 |
| 400 | 5.10 | 16.73 |
| 450 | 5.40 | 17.72 |
| 500 | 5.70 | 18.70 |
| 550 | 5.95 | 19.52 |
| 600 | 6.20 | 20.34 |
| 750 | 6.97 | 22.87 |
| 865 | 7.52 | 24.67 |
| 1000 | 8.12 | 26.64 |
| Order Informations: | ||
| Marking | HELLOSIGNAL RG59 67% + 3X26 AWG CCTV COAXIAL CABLE 7102104 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
