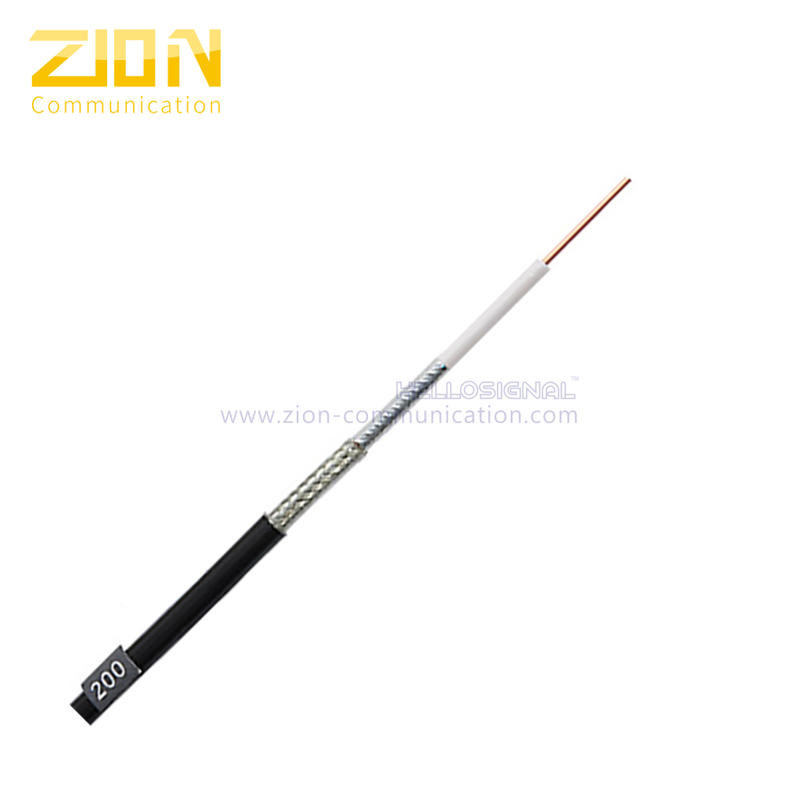

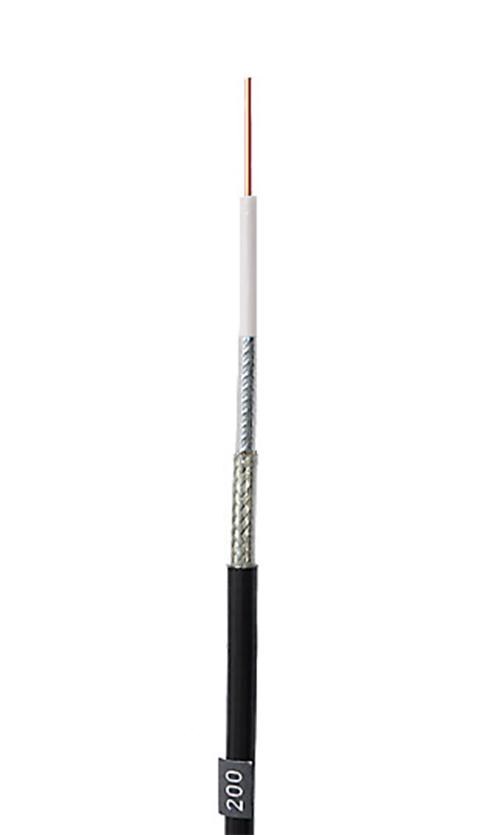

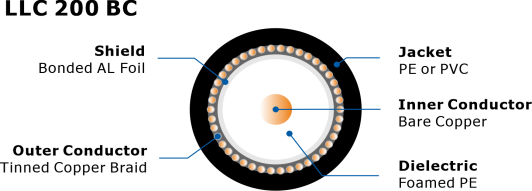

| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | LLC Coax Cable |
| Minimum Order Quantity: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | Bare Copper Wire | Dielectric: | Foamed PE |
|---|---|---|---|
| Outer Conductor: | Tinned Copper Braid | Jacket: | PE Black |
| More Choice Of Jacket: | FRPE / PVC / PVC W |
| LLC 200 BC NO.7101003 | ||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 1.12±0.03mm Bare Copper Wire | |||||||
| Dielectric | 2.95±0.15mm Foamed PE | |||||||
| Shield | Bonded Aluminum polyester tape | |||||||
| Outer Conductor | 3.66mm Tinned Copper Braid | |||||||
| Jacket | 5.0±0.2mm PE Black | |||||||
| More choice of Jacket | FRPE / PVC / PVC W | |||||||
| Electrical Characteristics: | ||||||||
| Capacitance | 80.4 pF/m |  |
||||||
| Impedance | 50±2 Ω | |||||||
| Velocity of Propagation | 83% | |||||||
| Peak Power Rating | 2.5 KW | |||||||
| Max.Operating Frequency | 6 GHz | |||||||
| Insulation Resistantce | >5000 M Ω.km | |||||||
| Shielding Effectiveness | > 90 dB | |||||||
| Inner Conductor DC Resistance | 17.6 Ω/km | |||||||
| Outer Conductor DC Resistance | 16.1 Ω/km | |||||||
| VSWR ≤ (Return loss≥dB) | ||||||||
| 30MHz-3000MHz | 1.20 (20) | |||||||
| Mechanical and Envrionmental Properties: | ||||||||
| Cable Bend Radius | Installation: 12.7mm | |||||||
| Repeated: 50.8mm | ||||||||
| Compressive flat force | ||||||||
| Maximum tension | 48 kg | |||||||
| Bending Moment | 0.27 N-m | |||||||
| Flat Plate Crush Stength | 0.27 kg/mm | |||||||
| Recommended Temperature |
Storage: | - 70 ℃ to +85℃ | ||||||
| Installation: | - 40 ℃ to +85℃ | |||||||
| Operating: | - 40 ℃ to +85℃ | |||||||
| Cross Section: | ||||||||
 |
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100m) | Avg.Power(KW) | ||||||
| 30 | 5.80 | 1.02 | ||||||
| 50 | 7.50 | 0.79 | ||||||
| 150 | 13.10 | 0.45 | ||||||
| 220 | 15.90 | 0.37 | ||||||
| 450 | 22.80 | 0.26 | ||||||
| 900 | 32.60 | 0.18 | ||||||
| 1500 | 42.40 | 0.14 | ||||||
| 1800 | 46.60 | 0.13 | ||||||
| 2000 | 49.30 | 0.12 | ||||||
| 2500 | 55.40 | 0.11 | ||||||
| 3000 | 60.20 | 0.07 | ||||||
| 5800 | 86.50 | 0.06 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL LLC 200 50 Ohm COAXIAL CABLE ×××M | |||||||
| Package | 500M/Wooden Drum, 1000M/Wooden Drum | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
