| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | LC UPC |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Operating Wavelength(nm): | 1310-1550 | Insertion Loss (dB): | ≤ 0.3 |
|---|---|---|---|
| Tensil Strength (N): | ≥ 1000 | Operating Temperature (℃）: | -20 ~ +85 |
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
| Fiber Type | Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2) | |||||||
| Multi-mode: OM1(62.5/125), OM2(50(125), [(OM3, OM4) (50/125,Laser Optimization)] |
||||||||
| 900um/0.9mm Buffer Colour | Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2) | |||||||
| Orange: OM1, OM2 | ||||||||
| Aqua: OM3, OM4 | ||||||||
| Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate | ||||||||
| 900um/0.9mm Types | Single Typical: 1 Fiber | |||||||
| Bunch Typical: 12 Fibers | ||||||||
| Customized: 4-48 Fibers | ||||||||
| Aramid Yarn (2.0/3.0mm) | Aramid yarn is laid over the cable core to serve as peripheral strength member. |
|||||||
| Cable Jacket | Main material: PVC / LSZH / Plenum (OFNP) | |||||||
| OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm | ||||||||
| Jacket Color | Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2) | |||||||
| Orange: OM1, OM2 | ||||||||
| Aqua: OM3, OM4 | ||||||||
| Cable Length | 1m, 2m, 3m. other lengths on request | |||||||
| Parameter | LC UPC | |||||||
| OM1 G.652.D/G.657.A1/G.657.A2 | ||||||||
| Operating Wavelength(nm) | 850-1300 | |||||||
| Insertion Loss (dB) | ≤ 0.3 | |||||||
| Return Loss (dB) | ≥ 35 | |||||||
| Repeatability (dB) | ≤ 0.1 | |||||||
| Interchangeability (dB) | ≤ 0.2 | |||||||
| Tensil Strength (N) | ≥ 1000 | |||||||
| Operating Temperature (℃) | -20 ~ +85 | |||||||
| Storage Temperature (℃) | -40 ~ +85 | |||||||
| Zion Code | Description | |||||||

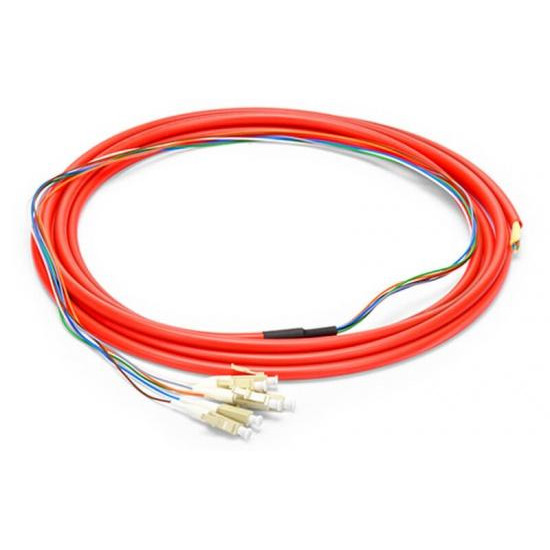

| 11F12411-2(7242203) | LC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT |
|||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. |
||||||||
| • Customized Logo | ||||||||
| • Printing on Cable | ||||||||
| • Label/PE bag/Carton design | ||||||||
| • Different Color & Different Lengths Available |
