| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | LC UPC to LC UPC Duplex |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Fiber Count: | Simplex / Duplex | Main Material: | PVC / LSZH / Plenum (OFNP) |
|---|---|---|---|
| Cable Length: | 1m, 2m, 3m. Other Lengths On Request | Fiber Height: | ± 100nm |
| Highlight: | Duplex OM1 Fiber Optic Cable,Multimode OM1 Fiber Optic Cable,PVC OM1 Fiber Optic Cable |
||
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
| Fiber Type | Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2) | |||||||
| Multi-mode: OM1(62.5/125), OM2(50(125), [(OM3, OM4) (50/125,Laser Optimization)] |
||||||||
| Fiber Count | Simplex / Duplex | |||||||
| Cable Jacket | Main material: PVC / LSZH / Plenum (OFNP) | |||||||
| OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm | ||||||||
| Jacket Color | Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2) | |||||||
| Orange: OM1, OM2 | ||||||||
| Aqua: OM3, OM4 | ||||||||
| Cable Length | 1m, 2m, 3m. other lengths on request | |||||||
| Mechanical Specification |
Ferrule | Ceramic; (MTRJ: PS-Polyphenylene Sulphide) | ||||||
| Apex Offset | ＜ 50um | |||||||
| Fiber Height | ± 100nm | |||||||
| Radius of Curvature | 7mm R ＜ 25mm (Excluding MTRJ) | |||||||
| Repeatability | ≤ 0.2dB 1,000 times mating cycles | |||||||
| Parameter | LC UPC | LC UPC | ||||||
| OM1 G.652.D/G.657.A1/G.657.A2 | ||||||||
| Operating Wavelength(nm) | 850-1300 | |||||||
| Insertion Loss (dB) | ≤ 0.3 | ≤ 0.3 | ||||||
| Return Loss (dB) | ≥ 35 | ≥ 35 | ||||||
| Repeatability (dB) | ≤ 0.1 | ≤ 0.1 | ||||||
| Interchangeability (dB) | ≤ 0.2 | ≤ 0.2 | ||||||
| Tensil Strength (N) | ≥ 1000 | ≥ 1000 | ||||||
| Operating Temperature (℃) | -20 ~ +85 | -20 ~ +85 | ||||||
| Storage Temperature (℃) | -40 ~ +85 | -40 ~ +85 | ||||||
| Zion Code | Description | |||||||

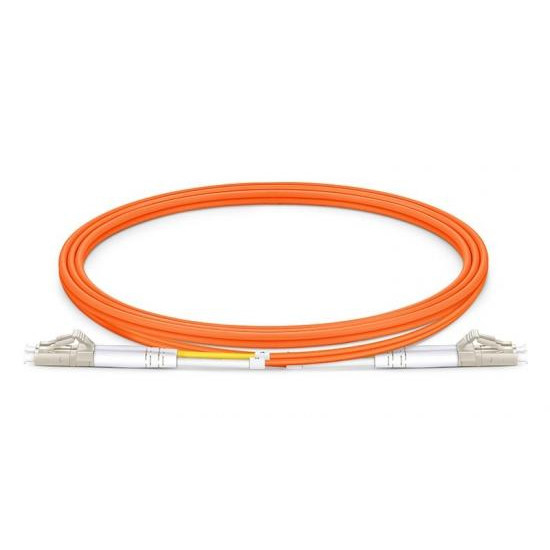

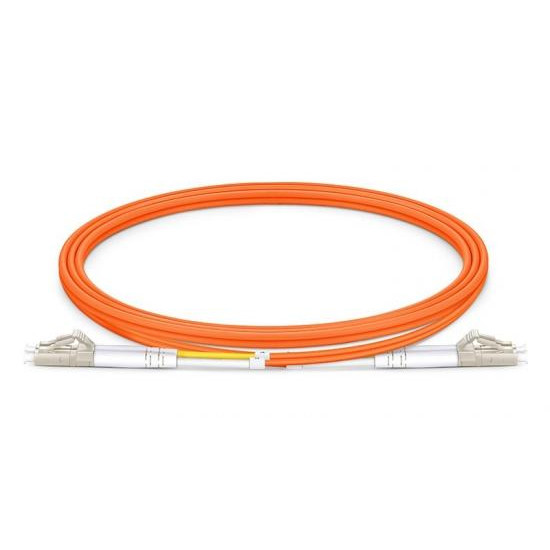

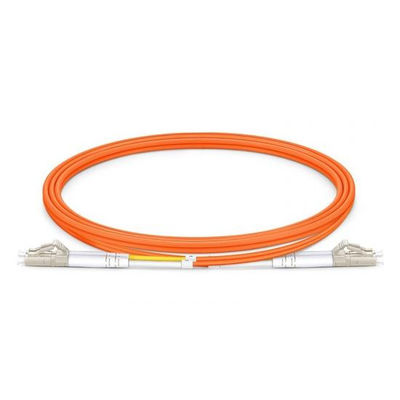

| 1111D412-2(7242103) | LC UPC to LC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC |
|||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. |
||||||||
| • Customized Logo | ||||||||
| • Printing on Cable | ||||||||
| • Label/PE bag/Carton design | ||||||||
| • Different Color & Different Lengths Available |
