| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Model Number: | PLC Optic Fiber Splitter |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Operating Wavelength (nm): | 1260~1650nm | Fiber Length: | 1.5m |
|---|---|---|---|
| Operating Temperature (℃): | -40 ～ 85 | Connector Type: | SC/APC,SC/UPC,LC FC ST |
| Highlight: | fiber optic splitter,plc optical splitter |
||
1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
| PLC Splitter Type | 1×16 PLC Splitter | ||||||||
| Configuration Type | 1×16 | ||||||||
| Operating Wavelength (nm) | 1260~1650nm | ||||||||
| Fiber Length | 1.5m | ||||||||
| Directivity (≥) dB | 55 | ||||||||
| Package Style | LGX Module | ||||||||
| Fiber Type | Singlemode G657A1 or G652D | ||||||||
| Fiber Diameter | 0.9mm,2.0mm,3.0mm | ||||||||
| Polarization Dependent Loss (≤) dB | 0.3 | ||||||||
| Wavelength Dependent Loss (≤) dB | 0.5 | ||||||||
| Typical Insertion Loss (≤) dB | 13.2 | ||||||||
| Insertion Loss (≤) dB | 13.7 | ||||||||
| Loss Uniformity (≤) dB | 1.2 | ||||||||
| Operating Temperature (℃) | -40 ～ 85 | ||||||||
| Storage Temperature (℃) | -40 ～ 85 | ||||||||
| Sealing Package Dimension (mm) | 130*100*102 | ||||||||
| Connector Type | SC/APC,SC/UPC,LC FC ST | ||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||||
| MOQ | 20pcs | ||||||||

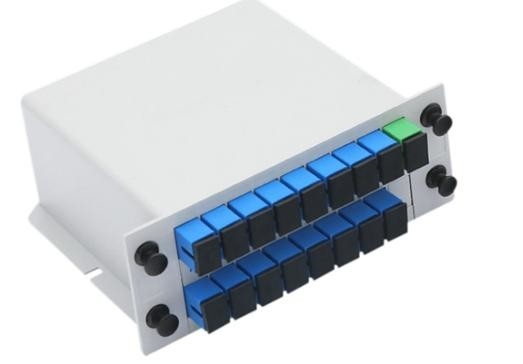

PLC Optic Fiber Splitter 1×16 LGX Single Mode with SC FC Connection is a 2 rows fiber optic adapters on the panel. this PLC Optic Fiber Splitter 1×16 is often used in a 3RU fiber optic patch panel. Teleweaver offers a variety of box and cassette type splitter modules and products. This PLC Splitter Module is a plastic module called an ABS box with ruggedized fiber jackets of 2mm and up to 3mm with no connectors. Customized designs are also available for customer needs,send us e-mail us about anything you need that you don’t see here.
| Parameter | 1 x N PLC Splitter; 2 x N PLC Splitter | ||||||||
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | ||
| 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |||
| Operating Wavelength(mm) | 1260~1650 | ||||||||
| Fiber Type | G657A1 or Customized | ||||||||
| Insertion Loss (dB) (P/S Grade) |
1 x N | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 | |
| 2 x N | 3.9/4.2 | 7.3/7.6 | 10.5/11 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | 24.5/25.0 | ||
| Loss Uniformity (dB) | < 0.4 | < 0.6 | < 0.8 | < 1.0 | < 1.5 | < 2.0 | < 2.5 | ||
| PDL(dB) | < 0.2 | < 0.2 | < 0.2 | < 0.3 | < 0.3 | < 0.4 | < 0.4 | ||
| Return Loss (dB) | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | ||
| Directivity ( dB) | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | ||
| Wavelength Dependent Loss (dB) | < 0.5 | < 0.5 | < 0.5 | < 0.5 | < 1.0 | < 1.0 | < 1.0 | ||
| Fiber Length (m) | 1m or Customized | ||||||||
| Temperature Stability(- 20~+80°C) | < 0.5 | ||||||||
| Operating Temperature (°C) | – 20~+80 | ||||||||
| Storage Temperature (°C) | – 40~+80 | ||||||||
| Maximum Power Handing(mW) | 500.0 | ||||||||
Notice:Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
| A | B | D | F | F | |||||
| Port | Package | Fiber Diameter | Fiber Length | Connector | |||||
| 0102 = 1×2 0104 = 1×4 0108 = 1×8 0116 = 1×16 0132 = 1×32 0164 = 1×64 1128 = 1×128 0202 = 2×2 0204 = 2×4 0208= 2×8 0216 = 2×16 0232=2×32 0264 = 2×64 2128 = 2×128 |
1=Bare 2=Blockless 3=ABS Box Module 4=lnsert Box 5=Pallet Type 6=Rackmount Z=Customized |
0=250 um 1=900 um 2=2.0mm 3=3.0mm |
0=0.5m 1=1.0m 2=1.5m 3=2.0m 4=3.0m 5=4.0m Z=Customized |
0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST Z=Customized |
