| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Model Number: | PLC Splitter |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Operating Wavelength (nm): | 1260~1650nm | Fiber Length: | 1m Or 1.5m Or Requested |
|---|---|---|---|
| Operating Temperature (℃): | -40 ～ 85 | Connector Type: | SC/APC,SC/UPC,LC FC ST |
| Highlight: | fiber optic splitter,plc optical splitter |
||
1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
| PLC Splitter Type | 1×64 PLC Splitter | ||||||||
| Configuration Type | 1×64 | ||||||||
| Operating Wavelength (nm) | 1260~1650nm | ||||||||
| Fiber Length | 1m or 1.5m or Requested | ||||||||
| Directivity (≥) dB | 55 | ||||||||
| Package Style | Blockless | ||||||||
| Fiber Type | Singlemode G657A1 or G652D | ||||||||
| Fiber Diameter | 0.9mm | ||||||||
| Polarization Dependent Loss (≤) dB | 0.4 | ||||||||
| Wavelength Dependent Loss (≤) dB | 0.8 | ||||||||
| Typical Insertion Loss (≤) dB | 19.7 | ||||||||
| Insertion Loss (≤) dB | 21.2 | ||||||||
| Loss Uniformity (≤) dB | 2.5 | ||||||||
| Operating Temperature (℃) | -40 ～ 85 | ||||||||
| Storage Temperature (℃) | -40 ～ 85 | ||||||||
| Sealing Package Dimension (mm) | 60*12*4 | ||||||||
| Blockless Sealing Package Dimension (mm) | 100*40*6 | ||||||||
| Connector Type | SC/APC,SC/UPC,LC FC ST | ||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||||
| MOQ | 20pcs | ||||||||

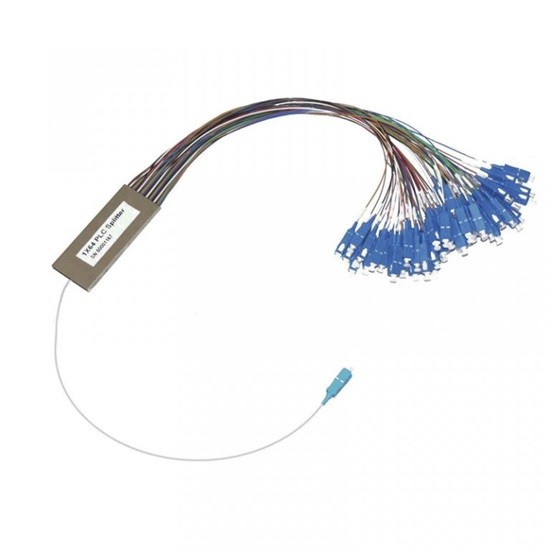

PLC Splitter 1×64 Blockless mini Steel tube type Fiber Optic PLC Splitter, Singlemode, 900μm SC/APC connectors. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.Huiyuan provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
| Parameter | 1 x N PLC Splitter; 2 x N PLC Splitter | ||||||||
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | ||
| 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |||
| Operating Wavelength(mm) | 1260~1650 | ||||||||
| Fiber Type | G657A1 or Customized | ||||||||
| Insertion Loss (dB) (P/S Grade) |
1 x N | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 | |
| 2 x N | 3.9/4.2 | 7.3/7.6 | 10.5/11 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | 24.5/25.0 | ||
| Loss Uniformity (dB) | < 0.4 | < 0.6 | < 0.8 | < 1.0 | < 1.5 | < 2.0 | < 2.5 | ||
| PDL(dB) | < 0.2 | < 0.2 | < 0.2 | < 0.3 | < 0.3 | < 0.4 | < 0.4 | ||
| Return Loss (dB) | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | ||
| Directivity ( dB) | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | ||
| Wavelength Dependent Loss (dB) | < 0.5 | < 0.5 | < 0.5 | < 0.5 | < 1.0 | < 1.0 | < 1.0 | ||
| Fiber Length (m) | 1m or Customized | ||||||||
| Temperature Stability(- 20~+80°C) | < 0.5 | ||||||||
| Operating Temperature (°C) | – 20~+80 | ||||||||
| Storage Temperature (°C) | – 40~+80 | ||||||||
| Maximum Power Handing(mW) | 500.0 | ||||||||
Notice:Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
| A | B | D | F | F | |||||
| Port | Package | Fiber Diameter | Fiber Length | Connector | |||||
| 0102 = 1×2 0104 = 1×4 0108 = 1×8 0116 = 1×16 0132 = 1×32 0164 = 1×64 1128 = 1×128 0202 = 2×2 0204 = 2×4 0208= 2×8 0216 = 2×16 0232=2×32 0264 = 2×64 2128 = 2×128 |
1=Bare 2=Blockless 3=ABS Box Module 4=lnsert Box 5=Pallet Type 6=Rackmount Z=Customized |
0=250 um 1=900 um 2=2.0mm 3=3.0mm |
0=0.5m 1=1.0m 2=1.5m 3=2.0m 4=3.0m 5=4.0m Z=Customized |
0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST Z=Customized |
