| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Model Number: | PLC Splitter |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Operating Wavelength (nm): | 1260~1650nm | Fiber Length: | 1m Or 1.5m Or Requested |
|---|---|---|---|
| Operating Temperature (℃): | -40 ～ 85 | Connector Type: | SC/APC,SC/UPC,LC FC ST |
| Highlight: | fiber optic splitter,plc optical splitter |
||
1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
| PLC Splitter Type | 1×64 PLC Splitter | ||||||||
| Configuration Type | 1×64 | ||||||||
| Operating Wavelength (nm) | 1260~1650nm | ||||||||
| Fiber Length | 1m or 1.5m or Requested | ||||||||
| Directivity (≥) dB | 55 | ||||||||
| Package Style | ABS Module | ||||||||
| Fiber Type | Singlemode G657A1 or G652D | ||||||||
| Fiber Diameter | 2.0mm,3.0mm | ||||||||
| Polarization Dependent Loss (≤) dB | 0.4 | ||||||||
| Wavelength Dependent Loss (≤) dB | 0.8 | ||||||||
| Typical Insertion Loss (≤) dB | 19.7 | ||||||||
| Insertion Loss (≤) dB | 21.2 | ||||||||
| Loss Uniformity (≤) dB | 0.8 | ||||||||
| Operating Temperature (℃) | -40 ～ 85 | ||||||||
| Storage Temperature (℃) | -40 ～ 85 | ||||||||
| Sealing Package Dimension (mm) | 141*115*18 | ||||||||
| Connector Type | SC/APC,SC/UPC,LC FC ST | ||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||||
| MOQ | 20pcs | ||||||||

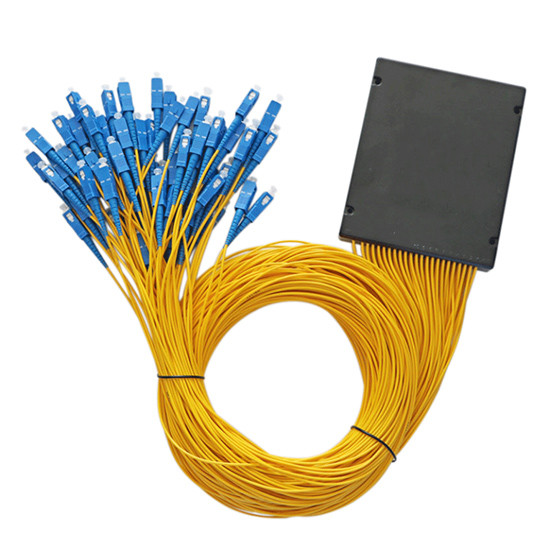

PLC Optical Splitter 1×64 Single Mode Fiber Optic Splitter ABS Module Type with SC Connector with SC Connector is installed steel tube type PLC inside an ABS box with 2.0mm or 3.0mm loose tube fiber optic cable. Teleweaver offers a variety of box and cassette type splitter modules and products. This PLC Splitter Module is a plastic module called an ABS box with ruggedized fiber jackets of 2mm and up to 3mm with no connectors. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here.
| Parameter | 1 x N PLC Splitter; 2 x N PLC Splitter | ||||||||
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | ||
| 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |||
| Operating Wavelength(mm) | 1260~1650 | ||||||||
| Fiber Type | G657A1 or Customized | ||||||||
| Insertion Loss (dB) (P/S Grade) |
1 x N | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 | |
| 2 x N | 3.9/4.2 | 7.3/7.6 | 10.5/11 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | 24.5/25.0 | ||
| Loss Uniformity (dB) | < 0.4 | < 0.6 | < 0.8 | < 1.0 | < 1.5 | < 2.0 | < 2.5 | ||
| PDL(dB) | < 0.2 | < 0.2 | < 0.2 | < 0.3 | < 0.3 | < 0.4 | < 0.4 | ||
| Return Loss (dB) | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | ||
| Directivity ( dB) | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | > 55 | ||
| Wavelength Dependent Loss (dB) | < 0.5 | < 0.5 | < 0.5 | < 0.5 | < 1.0 | < 1.0 | < 1.0 | ||
| Fiber Length (m) | 1m or Customized | ||||||||
| Temperature Stability(- 20~+80°C) | < 0.5 | ||||||||
| Operating Temperature (°C) | – 20~+80 | ||||||||
| Storage Temperature (°C) | – 40~+80 | ||||||||
| Maximum Power Handing(mW) | 500.0 | ||||||||
| Notice:Above specifications are for devices without connector. Add an additional 0.2dB loss per connector. | |||||||||
| A | B | D | F | F | |||||
| Port | Package | Fiber Diameter | Fiber Length | Connector | |||||
| 0102 = 1×2 0104 = 1×4 0108 = 1×8 0116 = 1×16 0132 = 1×32 0164 = 1×64 1128 = 1×128 0202 = 2×2 0204 = 2×4 0208= 2×8 0216 = 2×16 0232=2×32 0264 = 2×64 2128 = 2×128 |
1=Bare 2=Blockless 3=ABS Box Module 4=lnsert Box 5=Pallet Type 6=Rackmount Z=Customized |
0=250 um 1=900 um 2=2.0mm 3=3.0mm |
0=0.5m 1=1.0m 2=1.5m 3=2.0m 4=3.0m 5=4.0m Z=Customized |
0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST Z=Customized |
